airMars® 40106

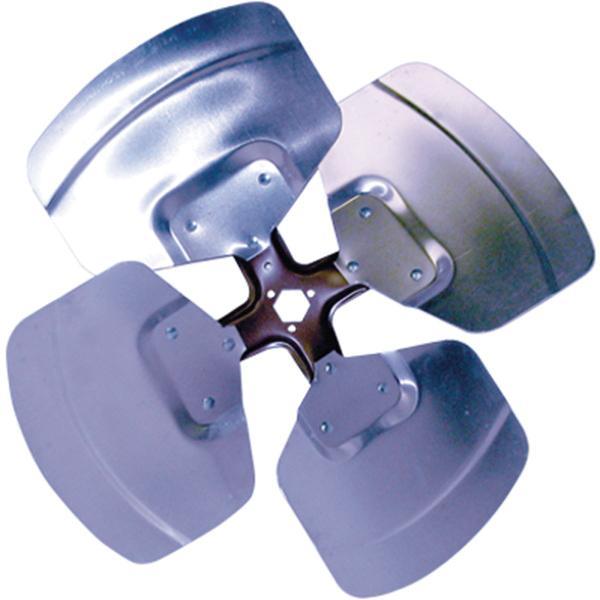

airMars® 40106 Heavy-Duty Condenser Fan Blade, 22 in Dia Blade, 23 deg Pitch, 4-Blade, Aluminum, Clockwise Rotation
Brand: airMars®
Item No: 22234CW
Sign In for Availability
Description
airMARS® 4-wing adapter, heavy-duty condenser fan blades are designed for rigorous R/HVAC pressure applications. They will accommodate universal hex/round adapter hubs for unlimited versatility. airMARS® adapter fan blades are durable, efficient and quiet. They are manufactured using high strength aluminum alloy for the blades and sturdy steel for the blade spiders. Blade depths and pitches specified for airMARS® adapter fan blades allow for the replacement of a broad range of commonly used fan blades.
airMars® Heavy-Duty Condenser Fan Blade, 22 in Blade Diameter, 23 deg Pitch, 4-Blade, Clockwise Rotation, 1140 rpm Speed, 3845 cfm Flow Rate, 0.4358 bhp, Hex Drive, Aluminum Blade, For Use With Air Moving Components, 22234CW Model, 3-45/64 in Depth
Specifications
|
Additional Information |
22234CW Model, 3-45/64 in Depth |
|
Blade Diameter |
22 in |
|
Blade Material |
Aluminum |
|
Drive Type |
Hex |
|
Flow Rate |
3845 cfm |
|
HP Rating |
0.4358 bhp |
|
Number of Blades |
4 |
|
Pitch |
23 deg |
|
Rotation Type |
Clockwise |
|
Speed Rating |
1140 rpm |
|
Suitable For Use With |
Air Moving Components |
Documentation
