AmeriVent® 4EUA-M

Description

The type B designation is assigned to gas venting systems that meet the safety requirements of underwriters Laboratories, Inc. The AmeriVent® all metal, double-wall gas vent is listed as type B by UL and is approved for residential and commercial applications such as category 1 water heaters, boilers, furnaces, space heaters or wall heaters. UL approved type B gas vent products form a continuous passageway from an approved gas appliance to the termination of the vent above the roof of the structure.

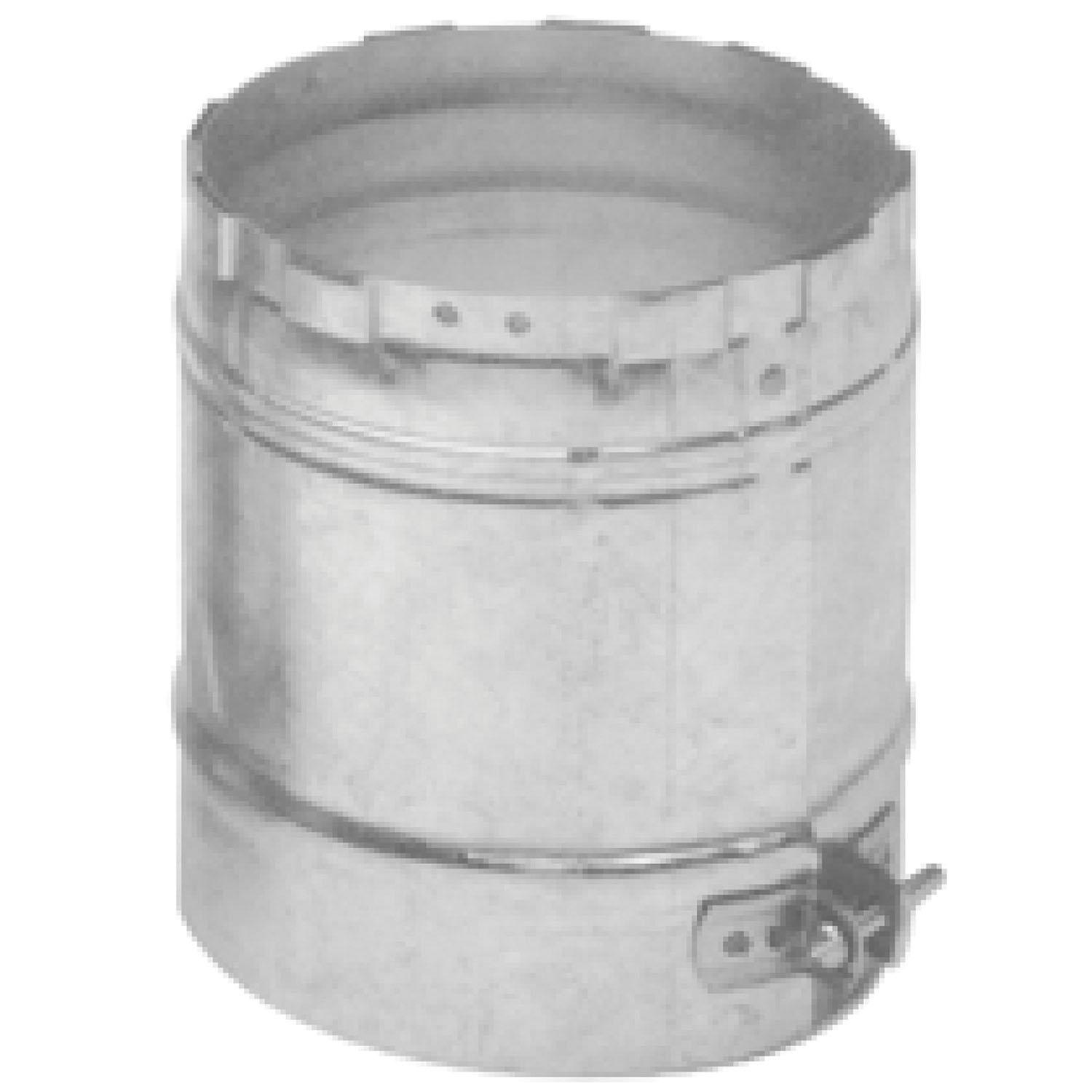

AmeriVent® Adapter, 4 in, Male Connection, 0.012 in, 0.018 in Gauge, Aluminum Alloy/Steel, Galvanized, 4-1/2 in OD, 6 in Height

Features

• AmeriVent® pipe are lightweight and rugged feature, made of corrosion-resistant galvanized steel and aluminum
• End have a snap-lock coupling
• 1 in minimum clearance to combustibles
• To disengage the locking tab align the seams and pull apart
• Locking tab - to ensure a secure fit, push in the locking tab to lock the pipe together
• Engagement snap-lock joint overlap to calculate height deduct 1 in for each joint
• The universal adapter offer secure, listed connections between AmeriVent® type B gas vent and gas vents of other manufacturer
