AmeriVent® 5EY-44

Description

The type B designation is assigned to gas venting systems that meet the safety requirements of Underwriters Laboratories, Inc. The AmeriVent® all metal, double wall gas vent is listed as type B by UL and is approved for residential and commercial applications such as category I water heaters, boilers, furnaces, space heaters or wall heaters. UL approved type B gas vent products form a continuous passageway from an approved gas appliance to the termination of the vent above the roof of the structure.

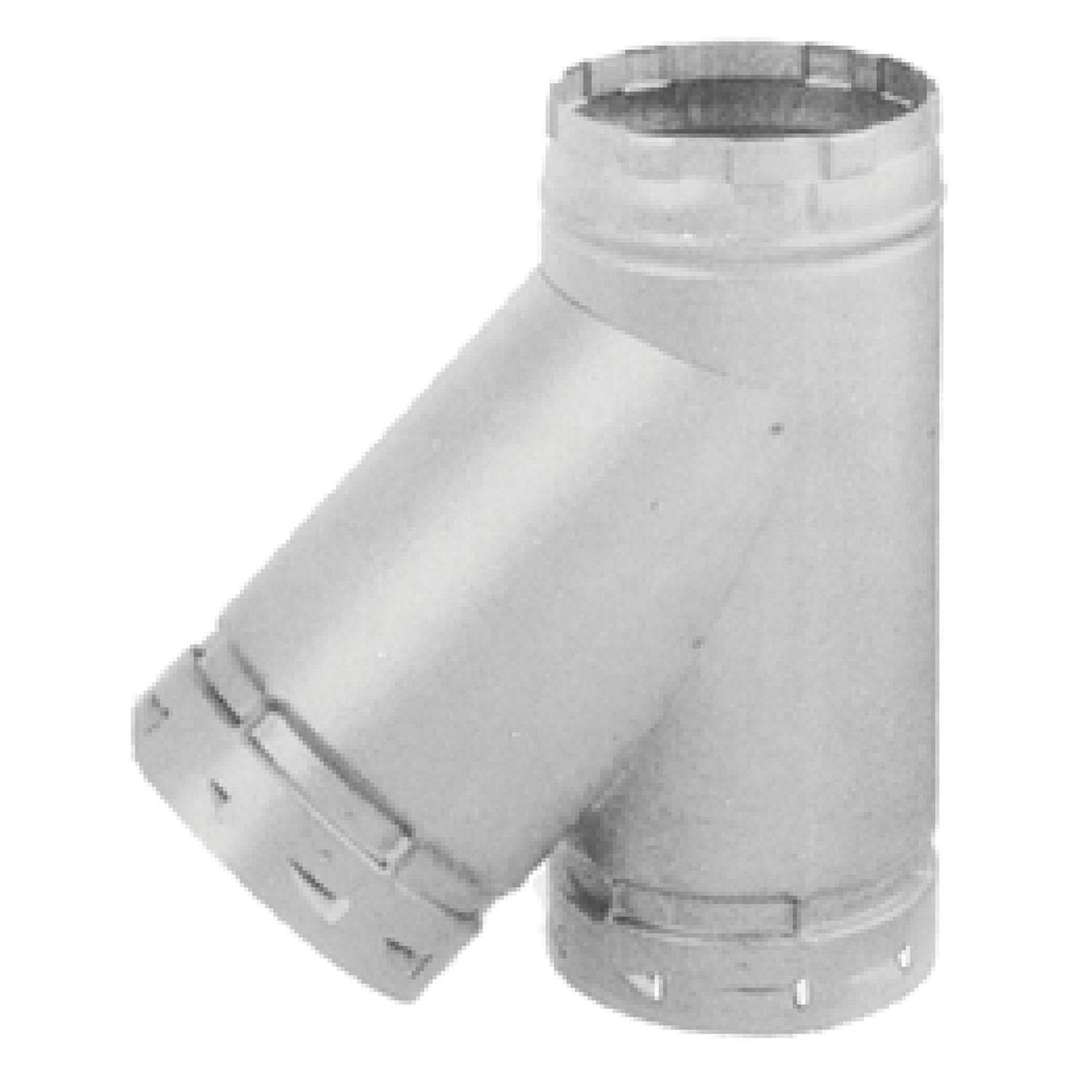

AmeriVent® Reducing Wye, 5 x 4 x 4 in, Aluminum Alloy/Steel, Galvanized, 5-1/2 x 4-1/2 x 4 in OD x 13-1/2 in H, 0.012 x 0.018 in THK

Features

• AmeriVent® pipe are lightweight and rugged feature, made of corrosion-resistant galvanized steel and aluminum
• ENDS® have a snap-lock coupling
• 1 in minimum clearance to combustibles
• To disengage the locking tab align the seams and pull apart
• Locking tab to ensure a secure fit, push in the locking tab to lock the pipes together
• Engagement snap-lock joint overlap to calculate height deduct 1 in for each joint
• Used to common vent two or more appliance and provide better gas flow than a standard tee
• Features a branch and/or base with a smaller diameter than the trunk size
