Amprobe® 3086905

Description

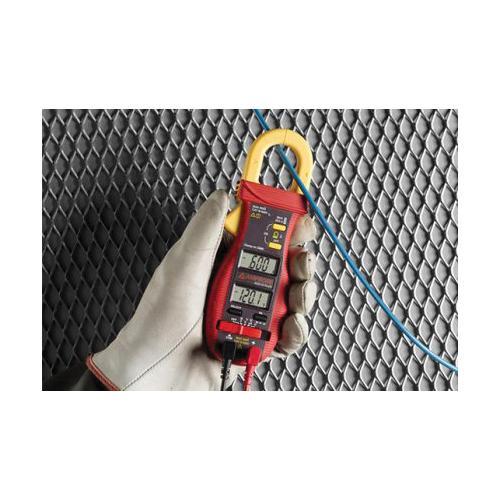

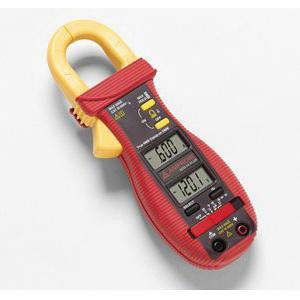

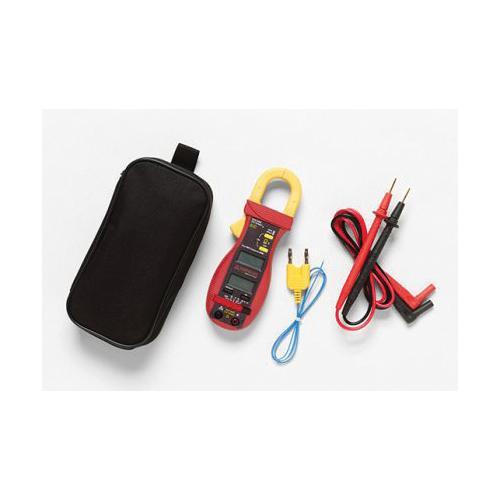

Amprobe® Dual Display Clamp Multimeter, Model: ACD-14 PLUS, 600 VAC/VDC, 600 A, Jaw Capacity: 5 mm, 4000 Counts, 40 to 400 Hz, 10 to 100 kHz, LCD Display, +/-1.5% RDG + 8 Digits AC Current Accuracy, +/-1.0% RDG + 4 Digits DC, +/-2.0% RDG + 5 Digits AC Voltage Accuracy, Cat III 600 V Safety Rating, 0 to 40 deg C Operating, 0.001 Hz Resolution, 190 x 63 x 32 mm

Features

• Dual displays permit simultaneous reading of amps and volts
• Measures temperature with K-type thermocouple probe
• Includes micro amps measurement for testing flame sensors
• Diode test quickly finds voltage drops
• Continuity beeper detects opens and shorts
• Auto ranging instantly selects correct range
• Hold and maximum reading functions
• New thin jaws, 5 mm thinner than standard digital clamp meters make it easier to access conductors in tight spaces
• Accommodates conductors up to 1 in diameter
• Auto power off and low battery indication helps you make the most of battery life
• Rubber, over-molded case absorbs shock

Specifications

Documentation
