armacell® APS38043

Description

AP/ArmaFlex Proven, fiber-free, flexible elastomeric insulation with reliable protection against condensation and energy loss. Highly flexible, fiber-free, non-particulate, formaldehyde-free, PDBE-free flame retardants and low VOC closed cell nitrile rubber insulation material. Superior thermal performance at 0.036 W/mK at 24 deg C and good water vapor permeability at 0.05 perm in. Made with EPA registered Microban® antimicrobial product protection, with Zero ODP and GWP and good ozone-resistance. Ideal for hot and cold-water services, chilled water lines, heating systems, air conditioning ductwork, refrigerated pipework process and industrial pipework and equipment.

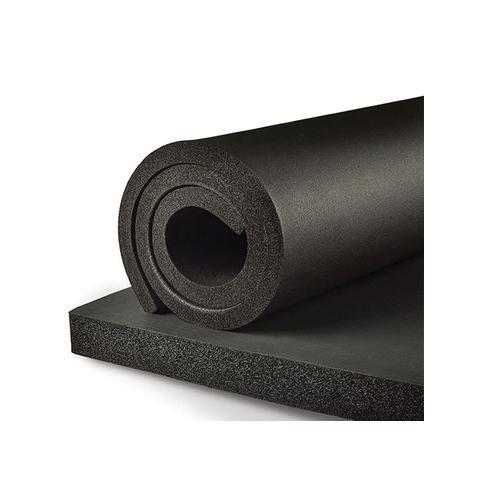

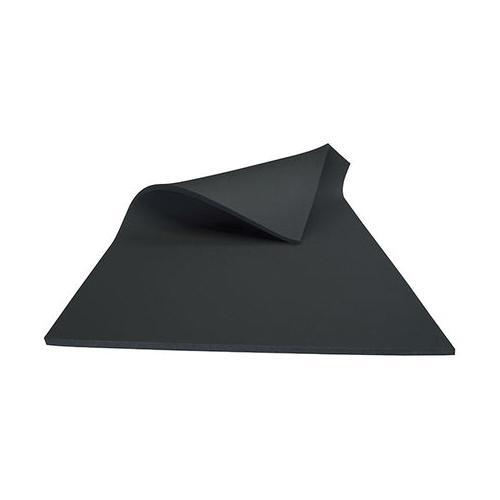

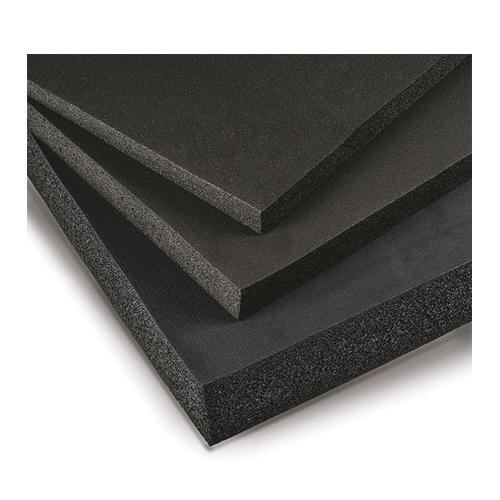

armacell® AP/ArmaFlex® Elastomeric Insulation Sheet, 3/8 in Thickness, 36 in W, 48 in L, Facing Type: Self Seal, R-Value: 1.5, Thermal Conductivity: 0.035 W/mK at 75 deg F, 0.037 W/mK at 90 deg F, -297 to 220 deg F, Self-Adhesive Adhesive, Elastomeric Foam Rubber/Nitrile Rubber, Black

Features

• Excellent fire performance - Flame spread index and smoke development index compliant to ASTM E84 - 25/50 rated
• Closed-cell structure - minimizes moisture penetration to ensure long-term protection against corrosion under insulation
• Condensation control - high resistance to water vapor guarantees surface temperature remains above dew point, removing the need for an additional water vapor barrier
• MICROBAN protection - when microbes come into contact with the insulation surface, MICROBAN penetrates the cell wall of the micro organism, disabling its ability to function, grow and reproduce
• Environmentally safe - zero ozone depletion potential and global warming potential with ozone resistance
• Easy-to-install - highly flexible elastomeric foam that can be installed quickly on irregular shapes and installations in tight spaces
• Self-adhering system makes application easy and reduces installation time
