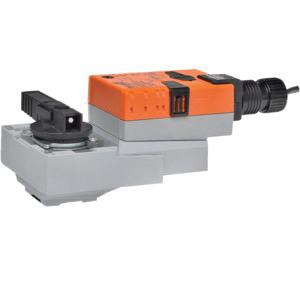

BELIMO® LRB24-SR
BELIMO® LRB24-SR Damper Actuator, 24 VAC/VDC, 4 - 20 mA, 90 sec Running Timing
Brand: BELIMO®
Item No: LRB24-SR
Sign In for Availability
Description
BELIMO® Damper Actuator, 4 - 20 mA, 24 VAC/VDC, 50/60 Hz, 3 V-A VA, 3 ft, 18 ga Plenum Cable with 1/2 in Conduit Connector Electrical Connection, 90 sec Running Timing, 100 kohm for 2 - 10 VDC 0.1 mA, 500 ohm for 4 - 20 mA Input, Less Than 35 dBA, -22 to 122 deg F Ambient, -40 to 176 deg F Storage, NEMA 2, IP42 Enclosure
Features
- Non fail-safe actuator
- Modulating contro
Specifications
|
Amperage Rating |
4 to 20 mA |
|
Electrical Connection |
3 ft, 18 ga Plenum Cable with 1/2 in Conduit Connector |
|
Enclosure Type |
NEMA 2, IP42 |
|
Frequency Rating |
50/60 Hz |
|
Input Impedance |
100 kOhm for 2 to 10 VDC 0.1 mA, 500 Ohm for 4 to 20 mA |
|
Noise Level |
<35 dBA |
|
Temperature Rating |
-22 to 122 deg F Ambient, -40 to 176 deg F Storage |
|
Timing Range |
90 s Running |
|
VA Rating |
3 VA |
|
Voltage Rating |
24 VAC/VDC |
