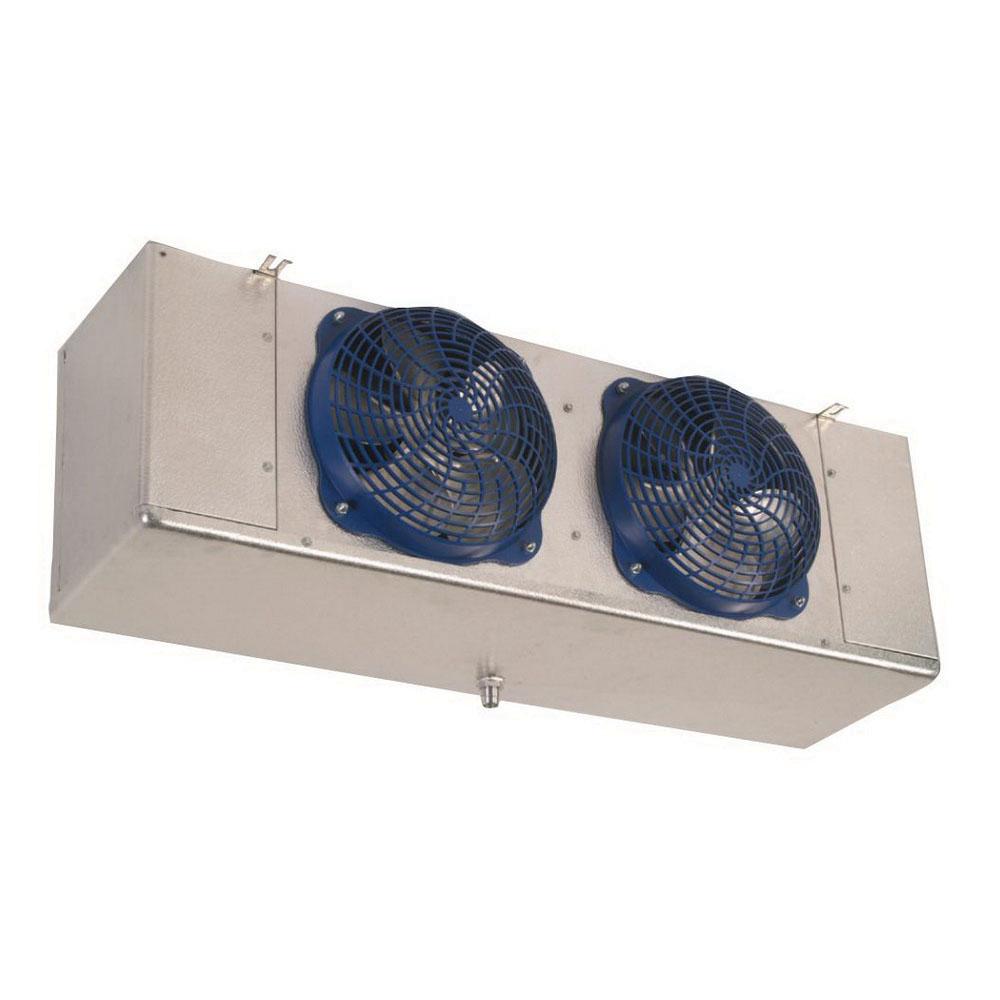

Bohn ADT156AK

Description

Bohn Walk-In Unit Cooler, Series: ADT Series, Model: ADT156, 115 V, 3 A, 246 W, 1/15 hp HP Rating, 60 Hz, 1 ph, 15600 Btu/hr, 2100 cfm CFM Rating, MNPT x OD Tube, 1/4 in, 1/2 in, 3/4 in, 7/8 in, 2 Number of Fans, 14-3/4 in H x 61-1/2 in W x 17-1/16 in D

Features

• Cabinet design features front access panels on each side for easy access to electrical and refrigeration components
• All electrical components factory wired to terminal board and identified, making it easy to field wire the unit
• Liquid line solenoid wire harness is factory-installed for quick installation
• Pre-drilled holes on the back of the unit for room thermostat
• Coil heater slots have been enlarged for easier installation and replacement
• On four - six fan models, drain pan has a lanyard for easy and safe access
• Motors plug into wiring harness for easier servicing
• Sweat connections to reduce potential for leaks
• Molded fan guard design made of strong plastic material
• Heavy gauge grained aluminum cabinet cleans easily and looks attractive
• Internal panels are isolated for quiet operation
• Internally enhanced tubing and fin design for higher efficiency, reduced heater wattages
• Fixed defrost termination for electric, adjustable defrost termination for hot gas
• Extended drain pan heaters for more uniform defrost throughout the drain pan and additional heat in end compartments
• Large diameter drain hole (3/4 in ID) is located on the back of the unit
• Minimal height of the low profile Series makes it ideal for low ceiling coolers
• Vintage
