Bohn BCH0022LBACZA0200

Description

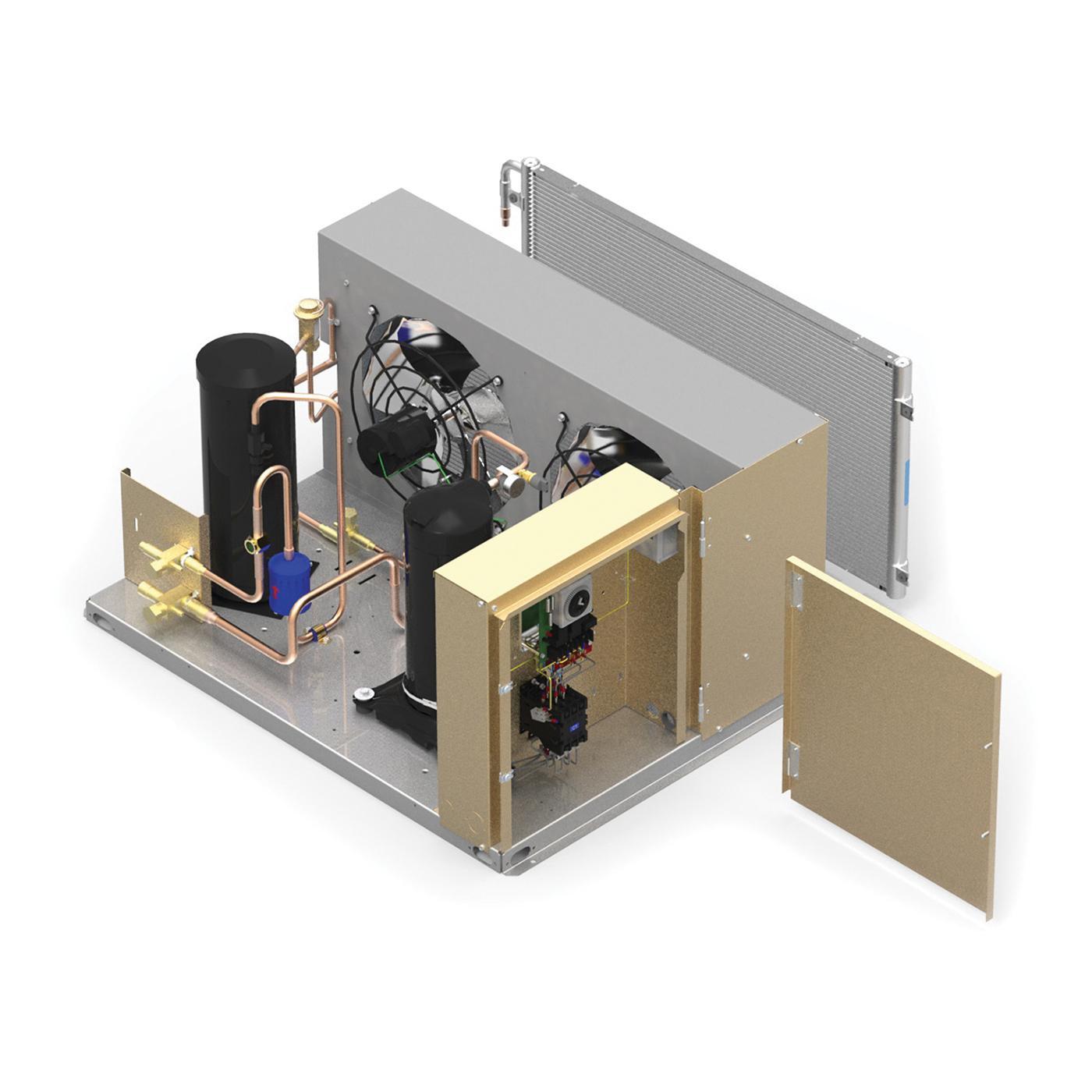

0.5 to 6 hp air cooled condensing units, with Copeland Hermetic reciprocating or scroll compressors and LG scroll compressors, are designed for flexibility and serviceability. We offer units for medium or low temperature applications with either pre-configured option packages or custom configurations for specific applications. Piping connections are externally-mounted and cabinets are removable for easy access to service components. Our designs are energy efficient and approved for use with multiple refrigerants. Units can be configured to meet minimum AWEF, Title 24 or other regulations.

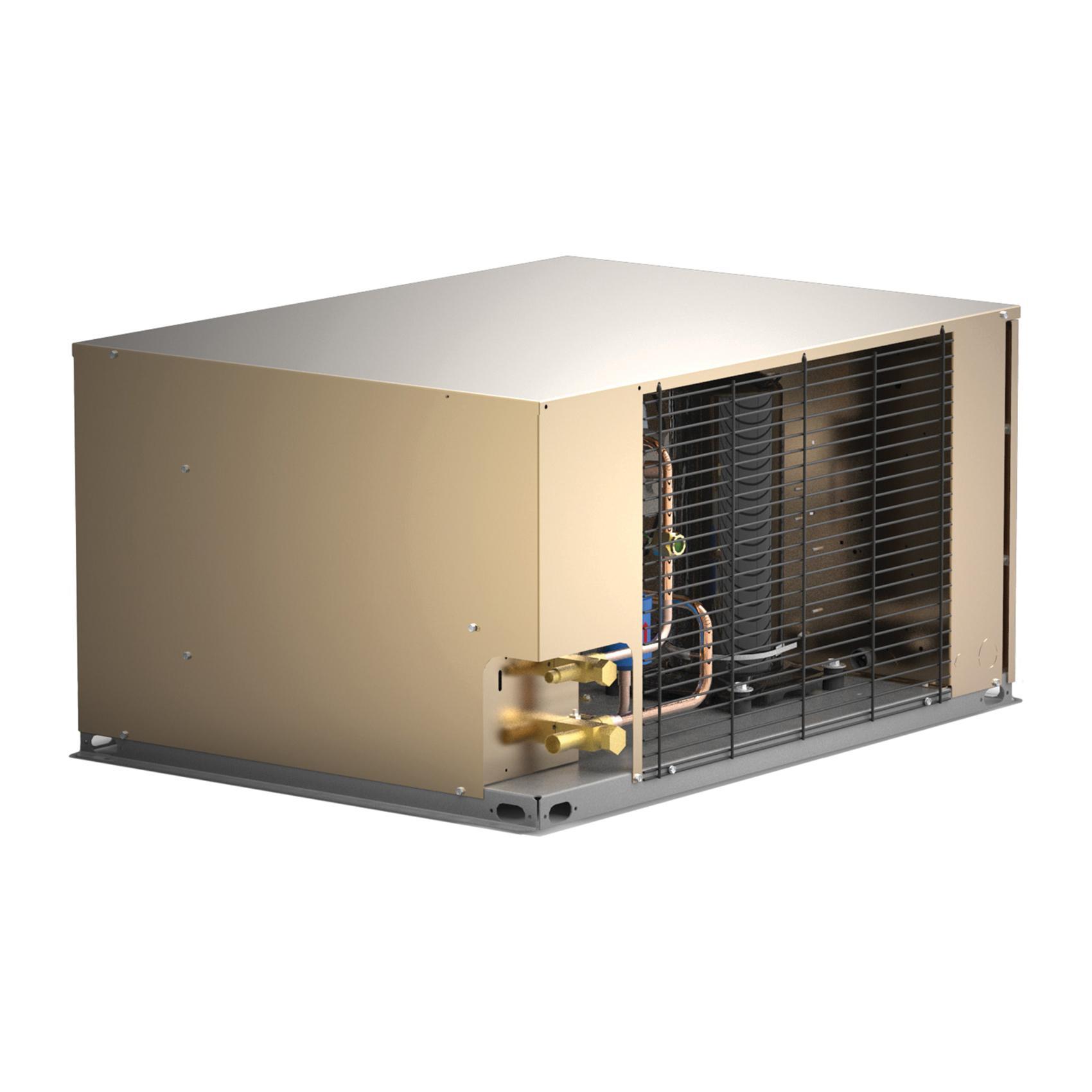

Bohn Outdoor Horizontal Air Cooled Condensing Unit With Electronic Timer, 208 to 230 V, 20 A, 6750 Btu/hr BTU, 2 hp, 1 ph, 60 Hz, R-404A, 3/8 in Liquid, 5/8 in Suction Connection, 63 dBA Sound, Steel, Painted, 95 deg F, 19-3/4 in H x 24-5/8 in W x 28-1/4 in D, Low-Temperature, Copeland Scroll Compressor

Features

• Microchannel coil technology standard on all units
• Painted steel cabinets for superior strength and corrosion protection
• Heavy-duty, steel, 1-1/2 in tall-base
• Suction service valves for hermetic and scroll compressors located outside the cabinet for quick installations
• Receiver with fusible plug, liquid shut off valve and charging port is standard
• Large electrical panel for ease of access
• Prefabricated wiring harnesses for tight crimp connections and consistent labeling
• Unit stays on if the hood is removed for servicing
• Sight glass is easily viewable
• All units are completely leak tested in a helium environment, bump tested and allowed to cycle off on the high and low pressure control
• Each unit has a copy of the run data shipped inside the electrical panel
• Electrical circuits are completely checked for continuity
• Piping is laid out to minimize stress and vibration and is pre-bent to eliminate leaks
• Encapsulated, auto-reset, high and low pressure controls to eliminate leaks (adjustable low pressure control standard on all models)
