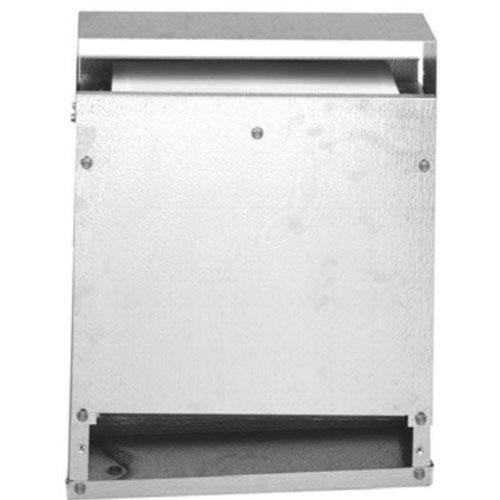

Bohn KMK13AG
Bohn KMK Series KMK13 KMK13AG Reach-In Unit Cooler, 13000 Btu/hr BTU, 180 cfm, 115 V, 60 Hz, 1 ph-Phase
Brand: Bohn
Item No: KMK13AG
Sign In for Availability
Description
Bohn Reach-In Unit Cooler, Series: KMK Series, Model: KMK13, 115 V, 60 Hz, 1 ph, 13000 Btu/hr, 180 cfm CFM Rating, OD, 3/8 in, 5/8 in, Coated Coil, 2 Number of Fans, Aluminum, Powder-Coated, 18.75 in H x 16.125 in W x 6.1 in D
Features
- Light grained aluminum cabinets
- Powder-coated wire fan guard
- Stainless steel hardware
- Coils have full collar aluminum fins on expanded copper tubes
- Coated coil for enhanced protection in corrosive environments
- Refrigerant connection knockouts provided on both ends of unit
- Expansion valve can be mounted inside the cabinet
- Motors are thermally protected and permanently lubricated
- Internal junction box is provided for electrical connection
- Adjustable air deflector included provides different air patterns
- Sweat inlet connection to reduce leaks
- Vintage
- 1.6 A full load motor
Specifications
|
BTU Rating |
13000 Btu/hr |
|
CFM Rating |
180 cfm |
|
Coil Type |
Coated |
|
Connection Size |
3/8 in, 5/8 in |
|
Connection Type |
OD |
|
Dimensions |
18.75 in H x 16.125 in W x 6.1 in D |
|
Finish |
Powder-Coated |
|
Frequency Rating |
60 Hz |
|
Material |
Aluminum |
|
Model |
KMK13 |
|
Number of Fans |
2 |
|
Phase |
1 ph |
|
Series |
KMK Series |
|
Voltage Rating |
115 V |
