Bohn LET160BK

Description

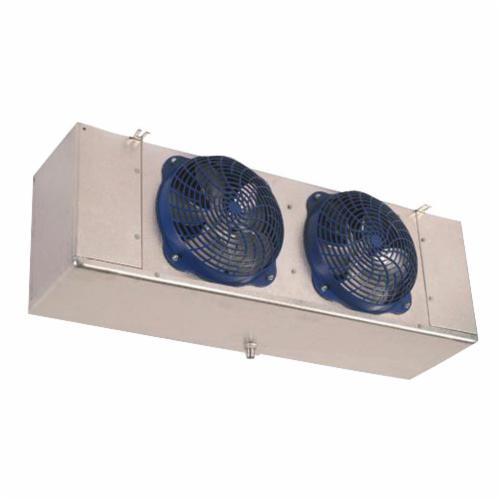

The low profile unit cooler, available in air, electric, and hot gas defrost, is designed for maximum capacity while occupying a minimum amount of space inside a walk-in cooler or freezer. These units are ideal for many applications including restaurants and convenience stores. Opting for EC motors or the Beacon II refrigeration system makes this product qualified to be included in the E Solutions product portfolio because of increased energy efficiency and cost savings.

Bohn Walk-In Unit Cooler, Series: LET Series, Model: LET160, 208 to 230 V, 2 A, 364 W, 1/15 hp HP Rating, 60 Hz, 1 ph, 16000 Btu/hr, 2600 cfm CFM Rating, MNPT x OD Tube, 1/4 in, 1/2 in, 3/4 in, 1-1/8 in, 4 Number of Fans, 3/16 in OD x 15 in L Tube, 6 FPI Fins per Inch

Features

• Cabinet design features front access panels on each side for easy access to electrical and refrigeration components
• All electrical components factory wired to terminal board and identified, making it easy to field wire the unit
• Liquid line solenoid wire harness is factory-installed for quick installation
• Pre-drilled holes on the back of the unit for room thermostat
• Coil heater slots have been enlarged for easier installation and replacement
• On four - six fan models, drain pan has a lanyard for easy and safe access
• Motors plug into wiring harness for easier servicing
• Sweat connections to reduce potential for leaks
• Molded fan guard design made of strong plastic material
• Heavy gauge grained aluminum cabinet cleans easily and looks attractive
• Internal panels are isolated for quiet operation
• Internally enhanced tubing and fin design for higher efficiency, reduced heater wattages
• Fixed defrost termination for electric, adjustable defrost termination for hot gas
• Extended drain pan heaters for more uniform defrost throughout the drain pan and additional heat in end compartments
• Large diameter drain hole (3/4 in ID) is located on the back of the unit
• Minimal height of the low profile Series makes it ideal for low ceiling coolers
• Vintage
