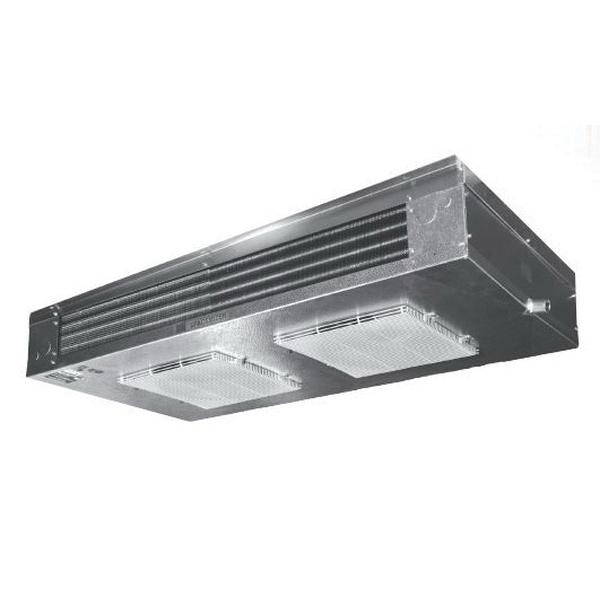

Bohn SM134AE

Description

Bohn Walk-In Unit Cooler, Series: SM Series, Model: SM134, 115 V, 1/15 hp HP Rating, 60 Hz, 1 ph, 13400 Btu/hr, 1890 cfm CFM Rating, FNPT x OD Tube, 1/4 in, 1/2 in, 3/4 in, 7/8 in, 3 Number of Fans, Aluminum, 75-1/2 in L x 28-13/16 in W x 7-9/16 in H

Features

• Ease of installation and service-panels on ends quickly remove for complete access to refrigerant components and electrical terminal block during installation and servicing
• Tapered mounting provides proper slope for condensate drainage to one-end of the unit
• Reliable and durable heavy gauge grained aluminum cabinet cleans easily and looks attractive
• Stainless steel screws prevent rust streaks
• Wire fan guards with PVC coating for durability
• Coils are dehydrated and sealed
• Double drain pan eliminates drain pan sweating
• Performance-quick disconnect, waterproof plug and receptacle for each motor in all models
• High efficiency aluminum fins with full collars cover mechanically expanded copper tubes
• Highest-quality tubular heaters provide fast and economical defrost
• Generous coil surface gives proper compressor balance
• Standard adjustable defrost termination fan delay thermostat
• Motors are life lubricated and thermal overload protected
• Air moves across the ceiling in both directions providing even air distribution throughout the cooler
• Versatile-compact, ceiling mount and center mount design allows for shelving and storage of product around all walls
• Vintage
