Browning® 1031723

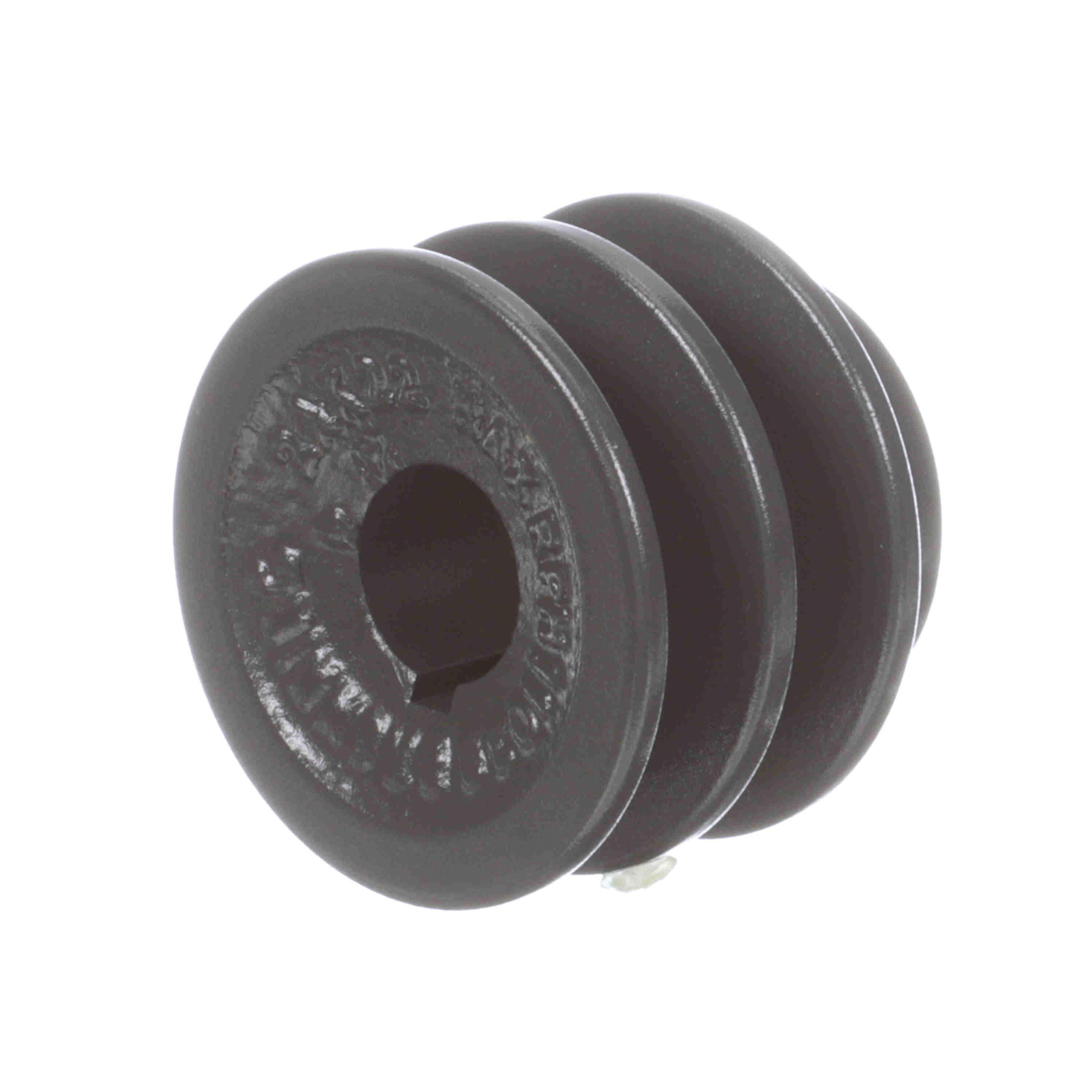

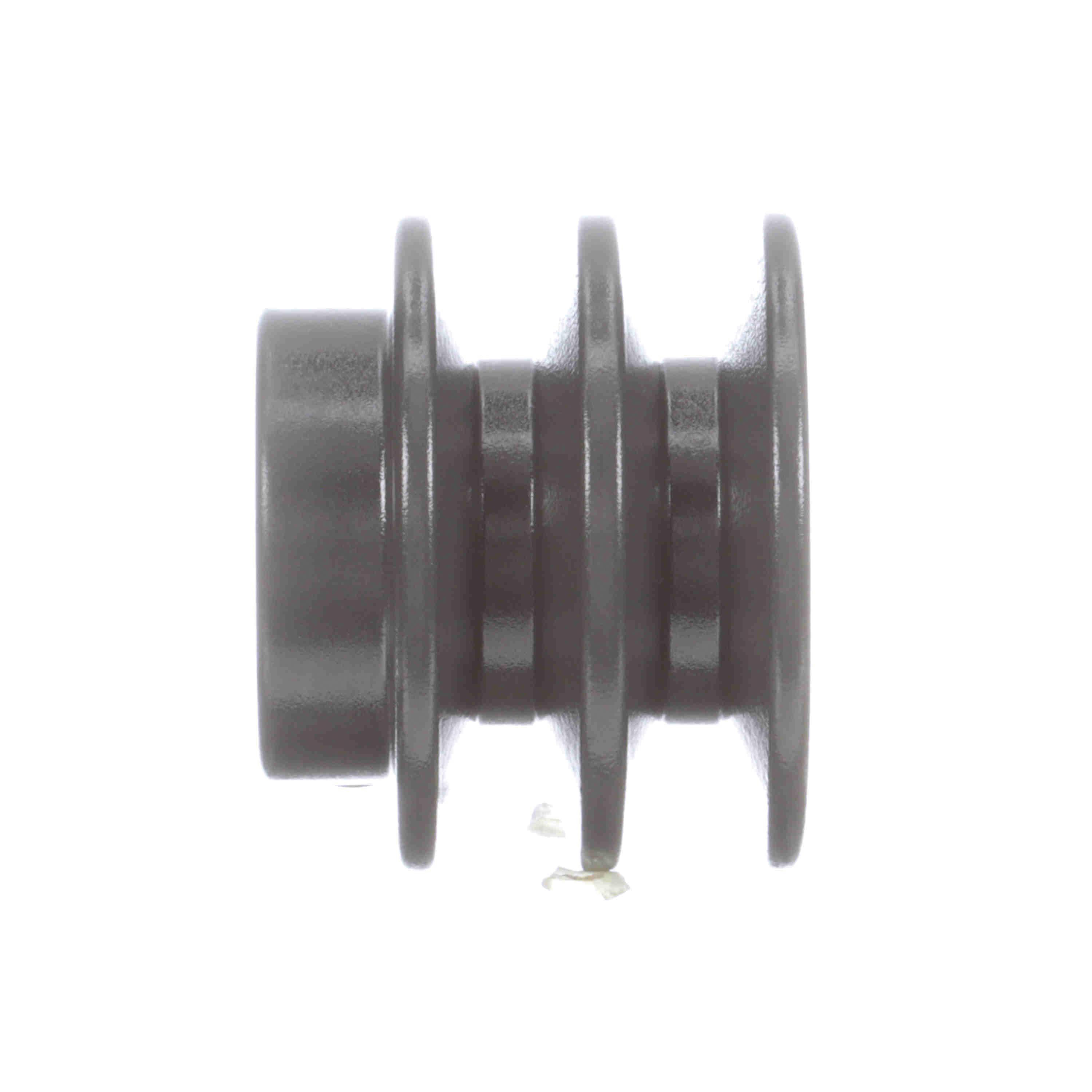

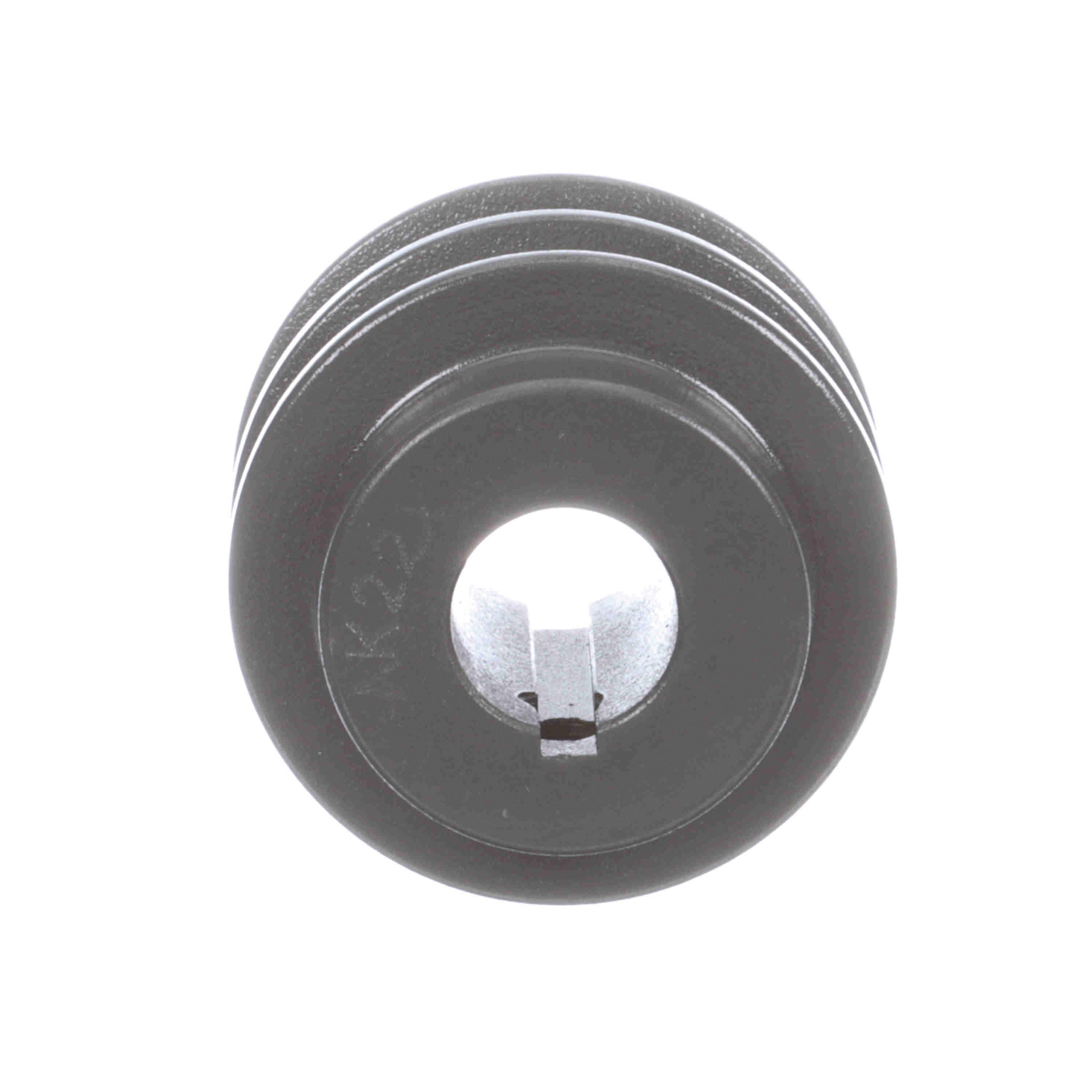

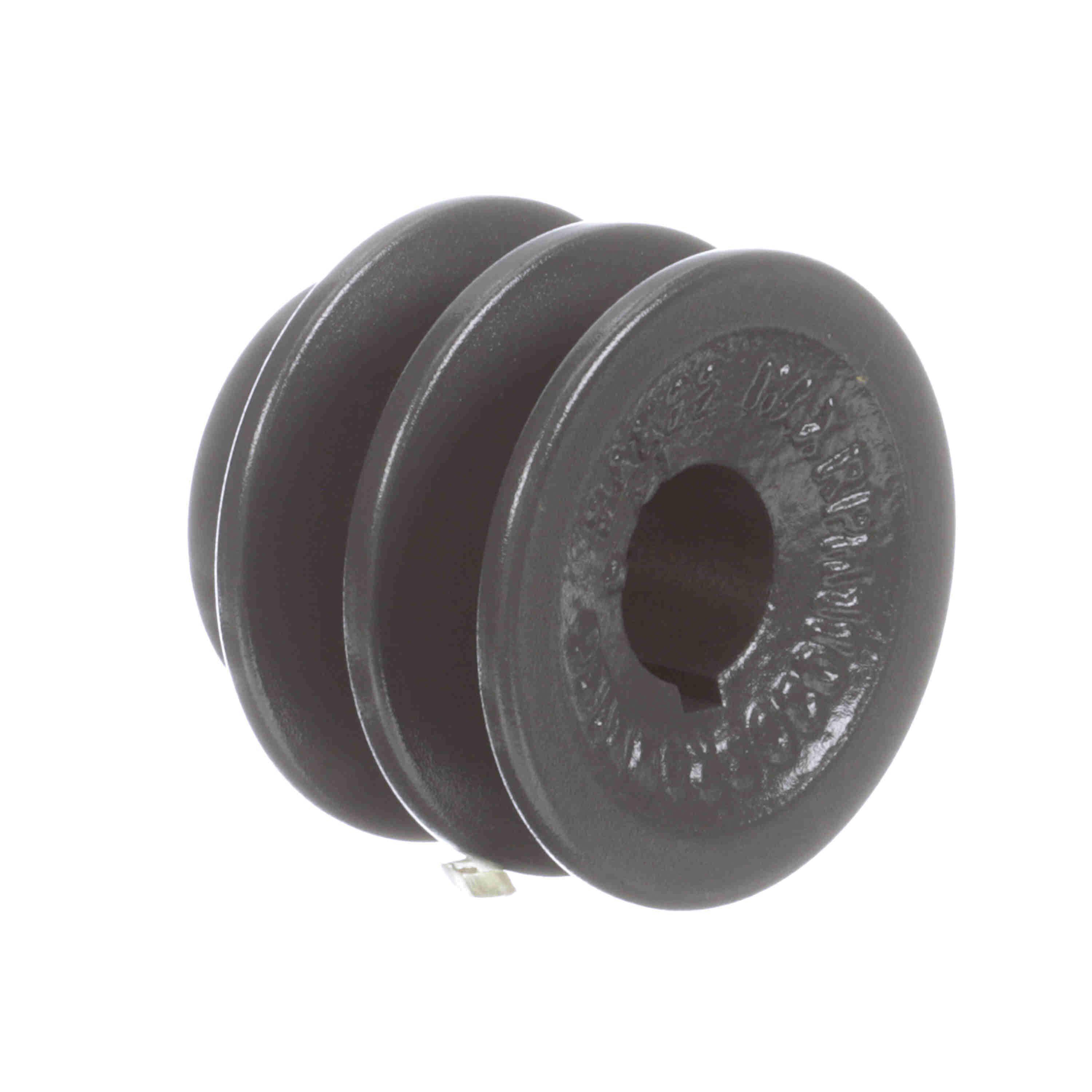

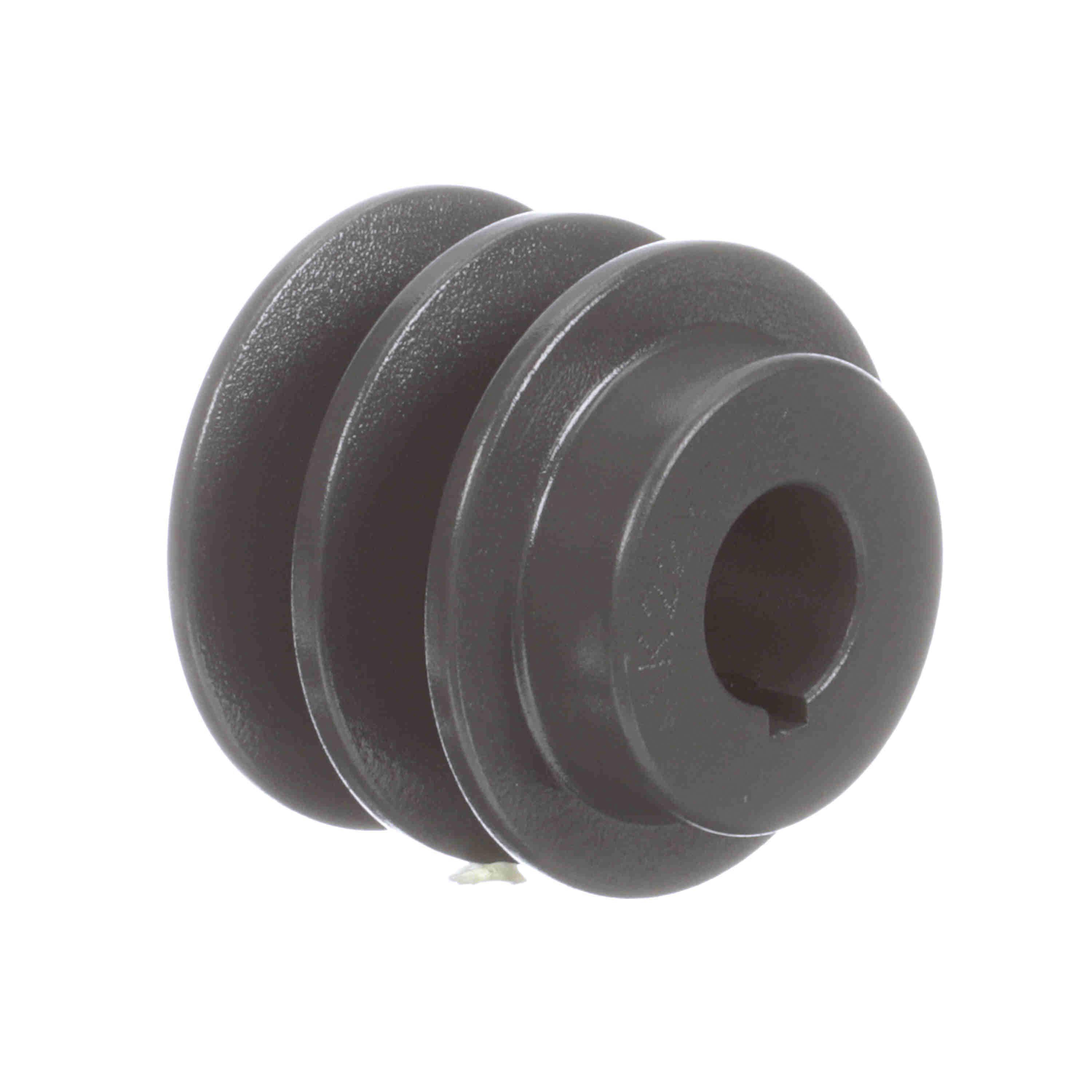

Browning® 1031723 FHP Bore Sheave, Finished with Keyway and SS Bore, 3/4 in Dia Bore, 1.37 in W Face, 2.2 in Dia Pitch
Brand: Browning®
Item No: 2AK22 3/4
Sign In for Availability
Description
Browning® FHP Bore Sheave, Finished with Keyway and SS, 3/4 in Dia Bore, Belt Section Size: 3L, 4L or A, Number of Grooves: 2, Pitch Diameter: 2.2 in, Face Width: 1.37 in, Keyway Size: 0.18 in, Cast Iron, 2.25 in OD x 1.84 in W, Plain Pulley, 1.66 in Datum Diameter (3L), 5/16-18 x 1/4 in Setscrew Thread, 90 in-lb Tightening Torque
Features
- Largest selection of finished bore sheaves of any other manufacturer Browning® offers finished bore sheaves in both A and B combination (A/B) configuration
- All sheaves are statically balanced to assure smooth, vibration-free performance
- Close grain cast iron allows Browning® to machine our sheaves to the closest tolerances possible
Specifications
|
Additional Information |
Plain Pulley, 1.66 in Datum Diameter (3L), 5/16-18 x 1/4 in Setscrew Thread, 90 in-lb Tightening Torque |
|
Belt Section Size |
3L, 4L or A |
|
Bore Diameter |
3/4 in |
|
Bore Type |
Finished with Keyway and SS |
|
Dimensions |
2.25 in OD x 1.84 in W |
|
Face Width |
1.37 in |
|
Keyway Size |
0.18 in |
|
Material |
Cast Iron |
|
Number of Grooves |
2 |
|
Pitch Diameter |
2.2 in |
