Browning® 1033414

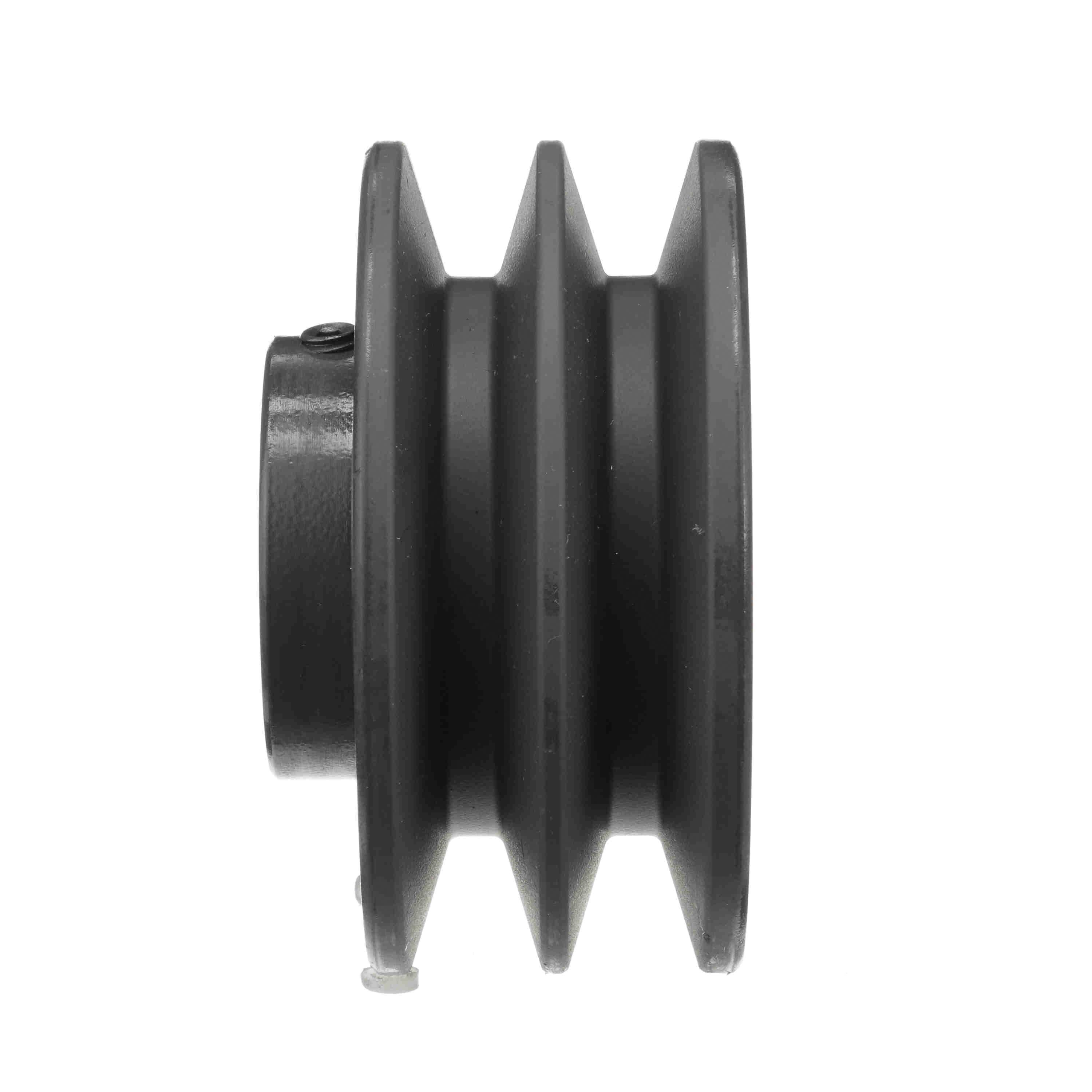

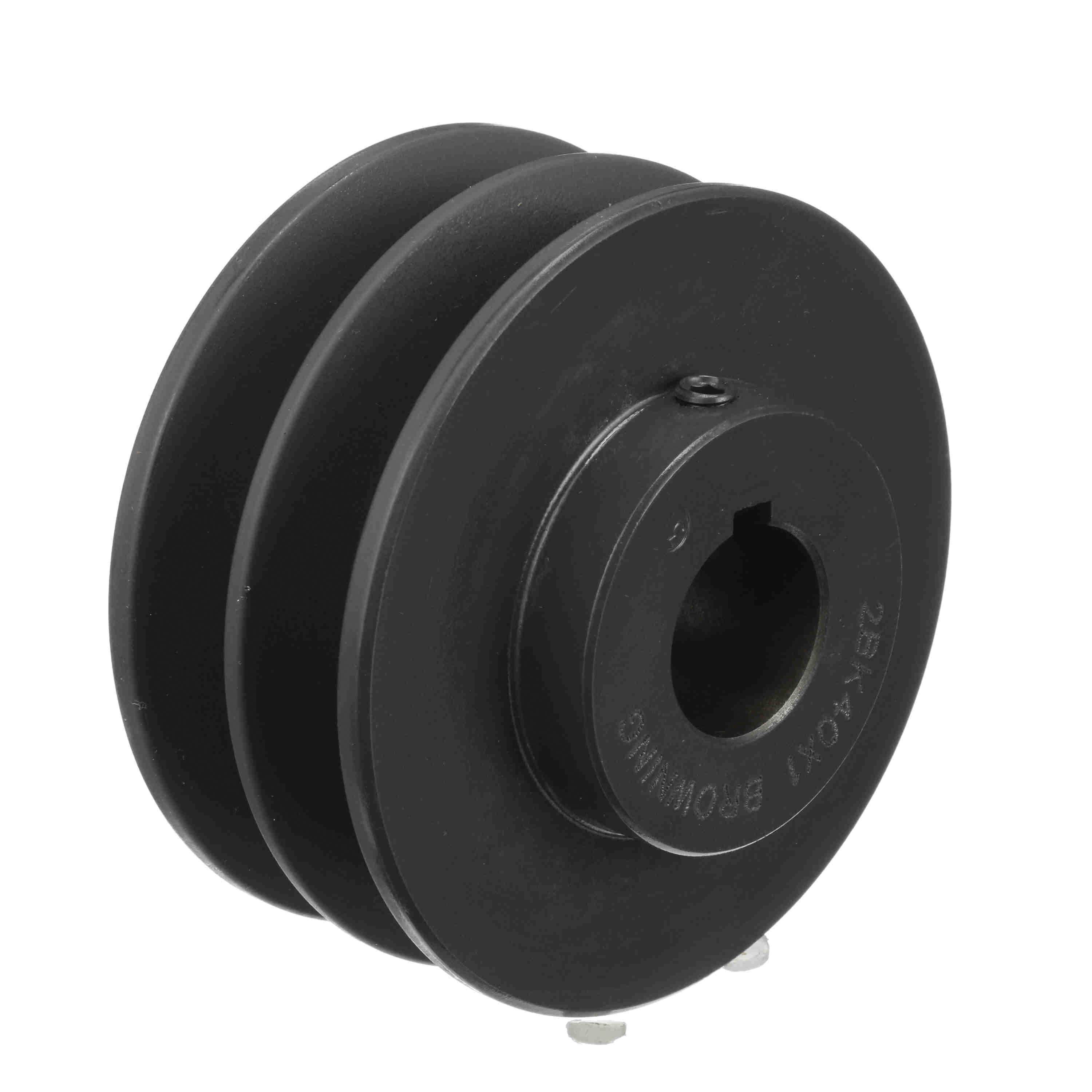

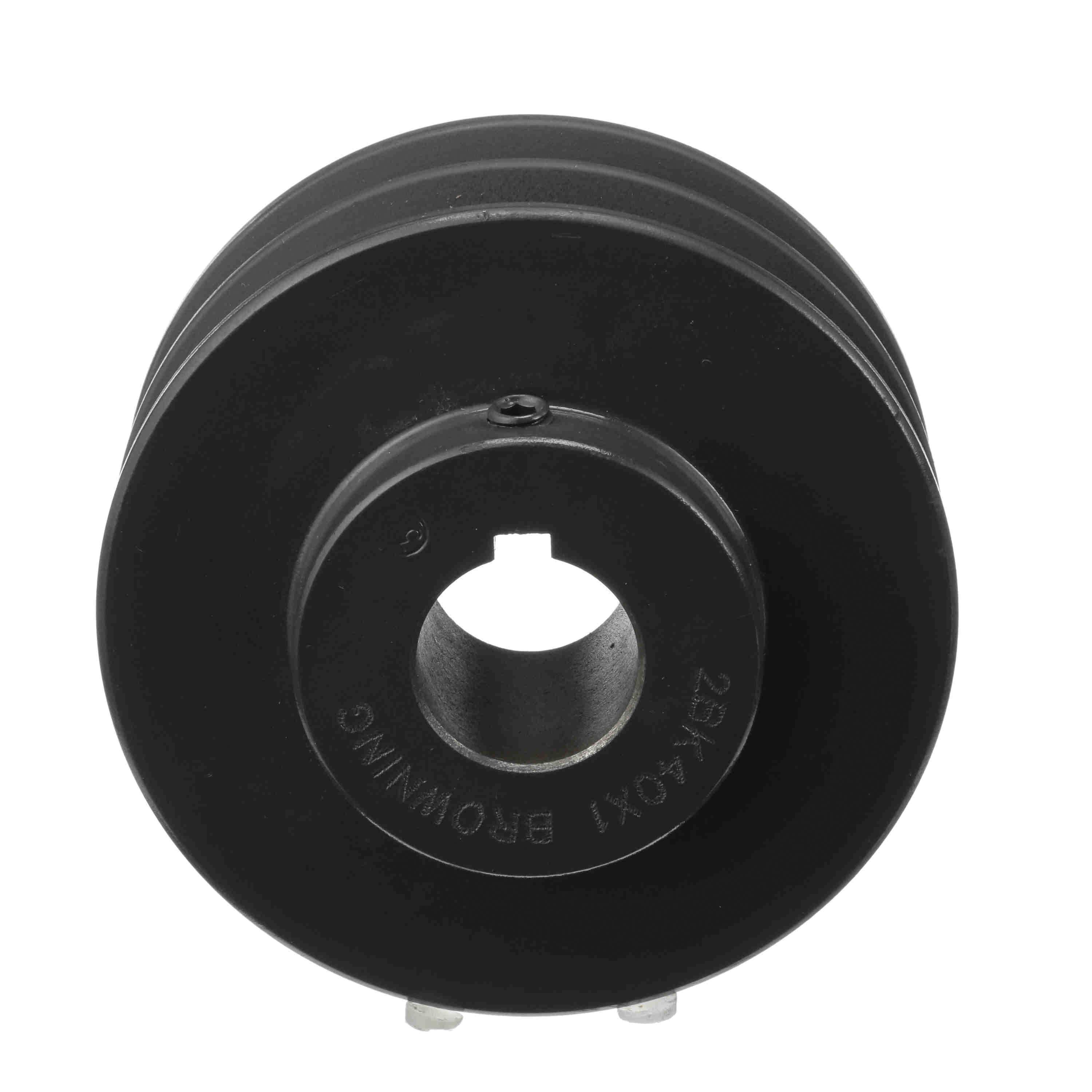

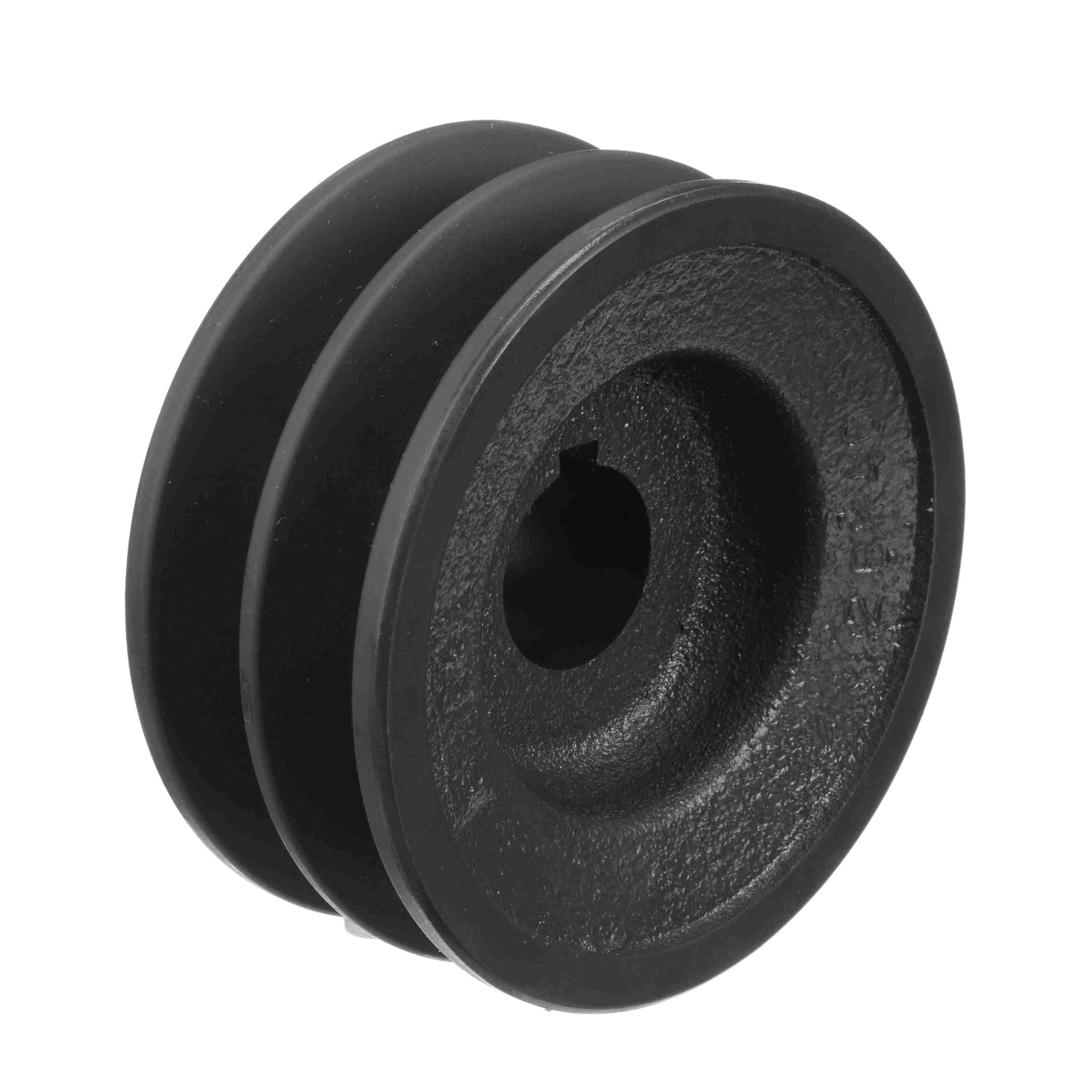

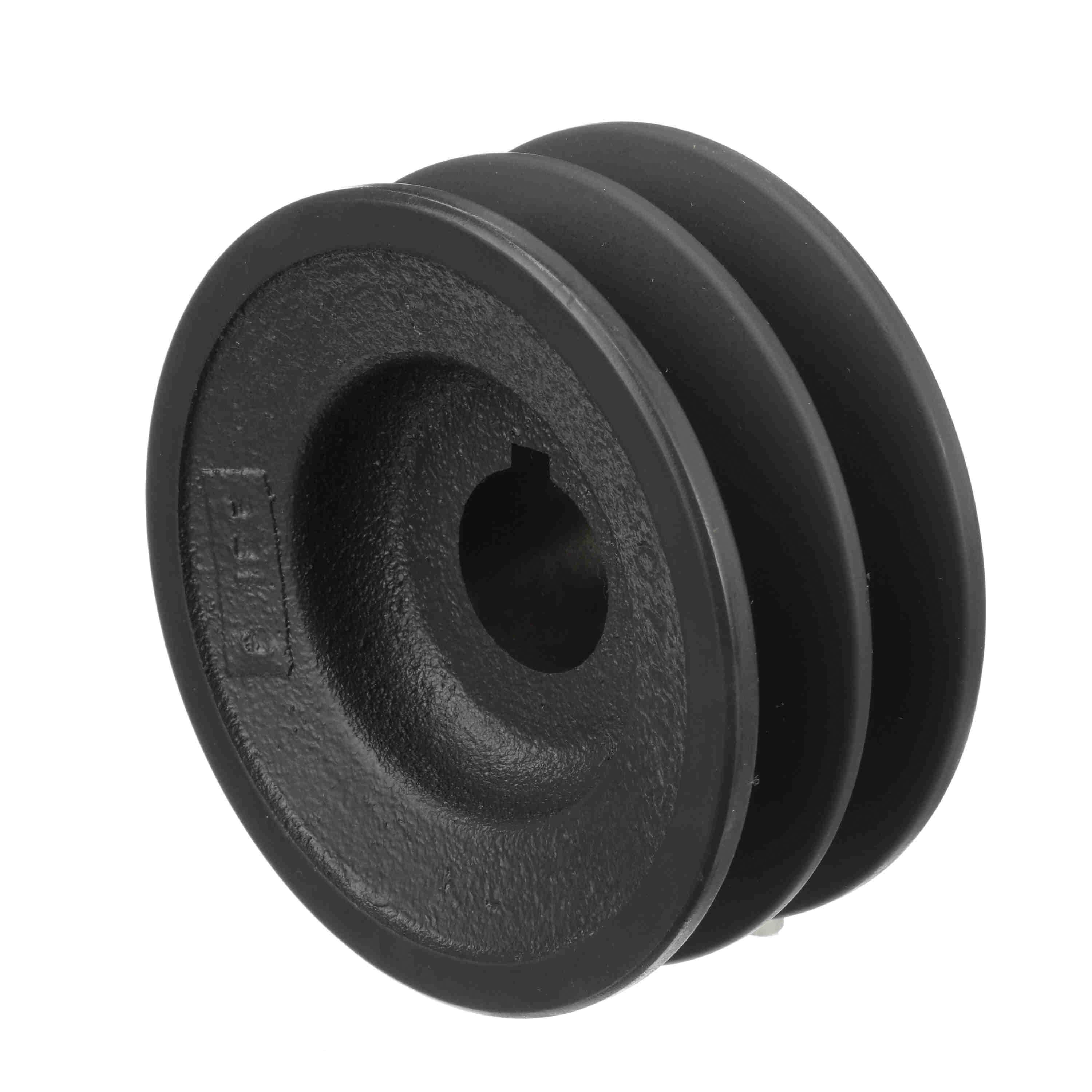

Browning® 1033414 FHP Bore Sheave, Finished with Keyway and SS Bore, 1 in Dia Bore, 1-3/4 in W Face
Brand: Browning®
Item No: 2BK40 1
Sign In for Availability
Description
Browning® FHP Bore Sheave, Finished with Keyway and SS, 1 in Dia Bore, Belt Section Size: 4L or A, 5L or B, Number of Grooves: 2, Pitch Diameter: 3.4 x 3.9 in, Face Width: 1-3/4 in, Keyway Size: 1/4 in, Cast Iron, 3.95 in OD x 2.21 in W, Webbed Pulley, 5/16-18 x 3/8 in Setscrew, 165 in-lb Tightening Torque
Features
- Largest selection of finished bore sheaves of any other manufacturer Browning® offers finished bore sheaves in both A and B combination (A/B) configuration
- Combination groove all Browning® BK sheaves permit the running of A, 4L, B and 5L belts to be run in them, thus providing a variety of different pitch diameters and horsepower's
Specifications
|
Additional Information |
Webbed Pulley, 5/16-18 x 3/8 in Setscrew, 165 in-lb Tightening Torque |
|
Belt Section Size |
4L or A, 5L or B |
|
Bore Diameter |
1 in |
|
Bore Type |
Finished with Keyway and SS |
|
Dimensions |
3.95 in OD x 2.21 in W |
|
Face Width |
1-3/4 in |
|
Keyway Size |
1/4 in |
|
Material |
Cast Iron |
|
Number of Grooves |
2 |
|
Pitch Diameter |
3.4 x 3.9 in |
