Browning® 3001021

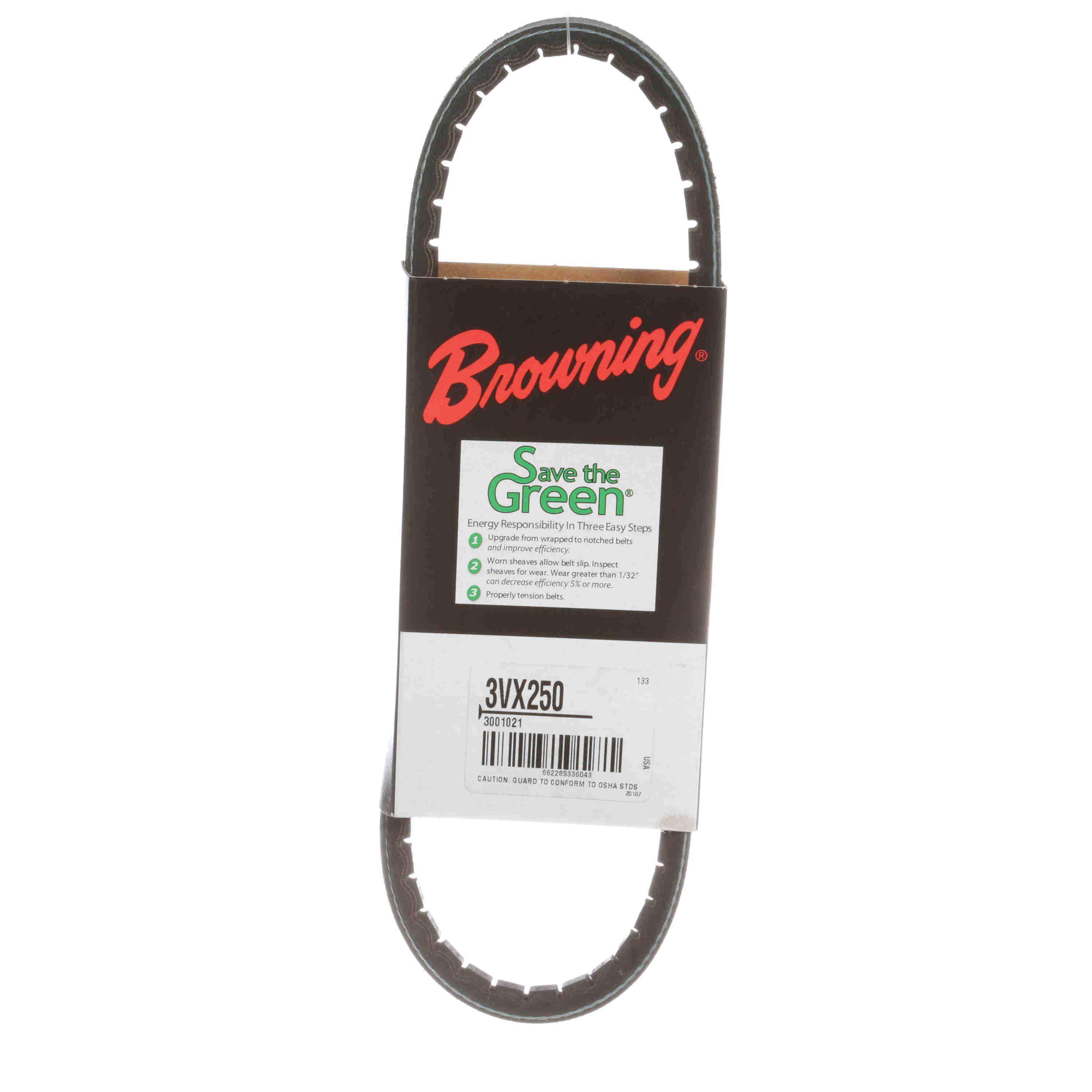

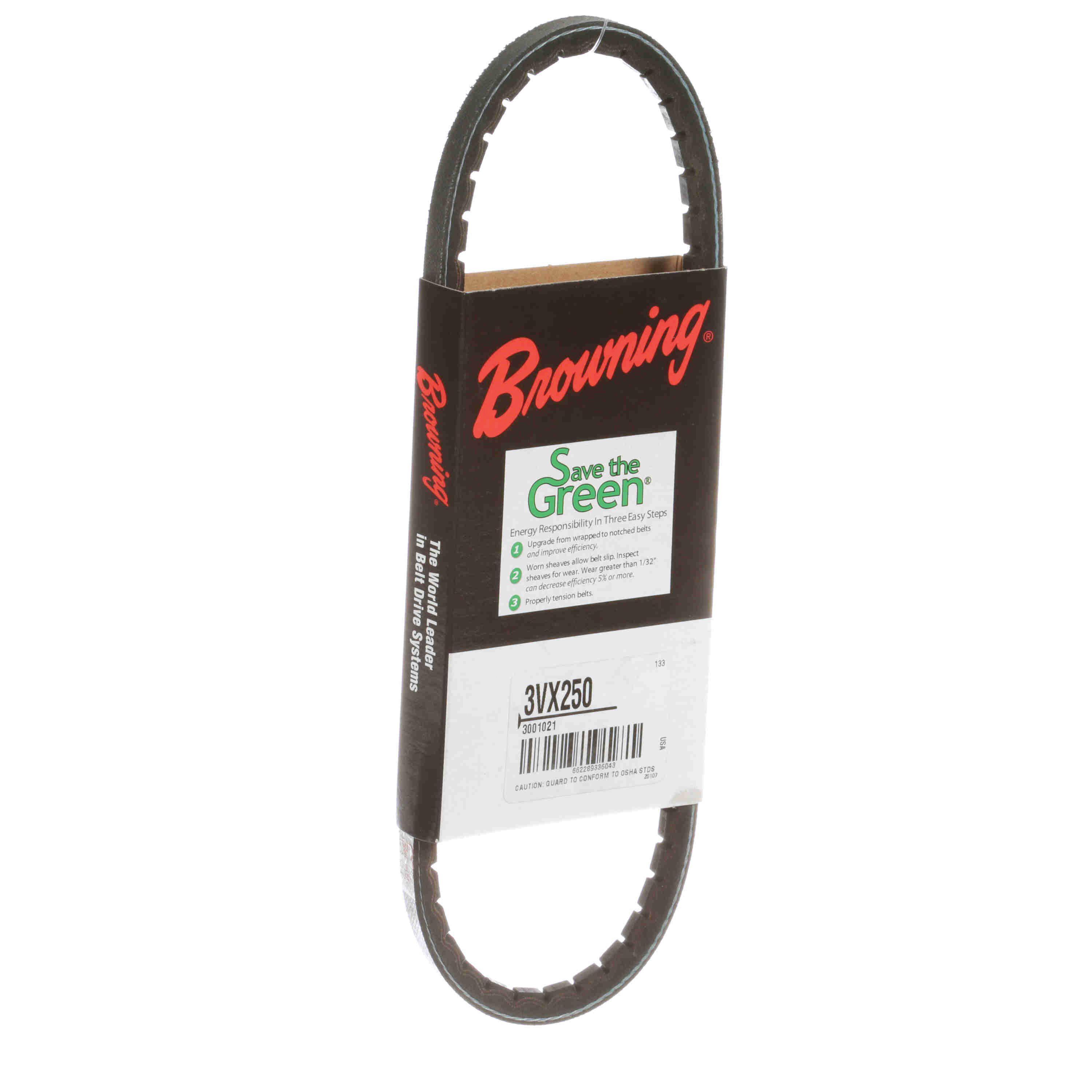

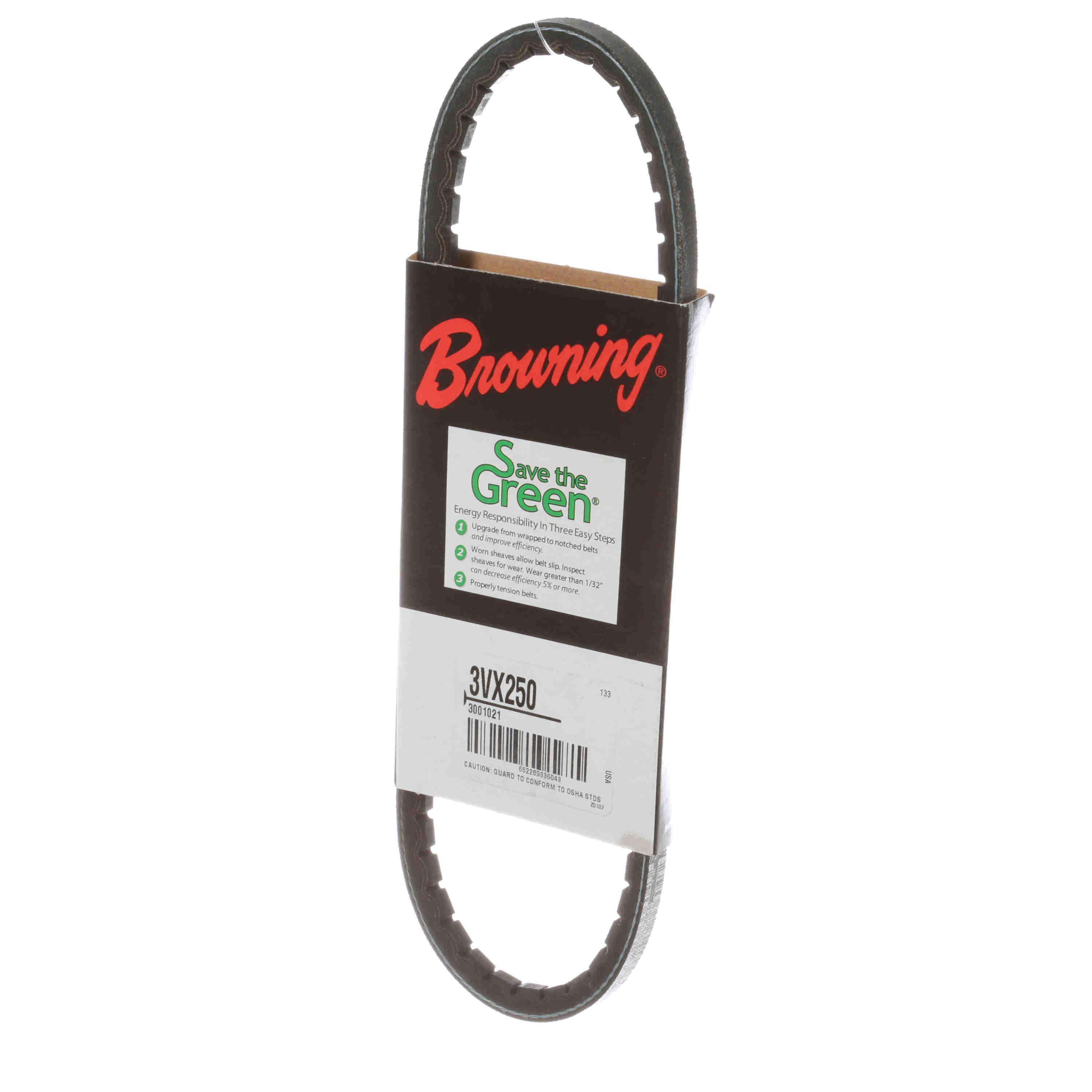

Browning® Gripnotch Series 3001021 Notched V-Belt, 3VX Section, 25 in L Outside, EPDM
Brand: Browning®
Item No: 3VX250
Sign In for Availability
Description
Browning® Notched V-Belt, Series Gripnotch Series, Section Size: 3VX, 25 in Length, Pitch Length: 25 in, EPDM, 250 deg F, Domestic/Import: Domestic, 0.98% Efficiency
Features
- Browning® 358 notched belts are constructed of EPDM material wrapped top and bottom, increased operating temperature range of -60 to 250 deg F
- More horsepower in less space Browning® 358 belts provide more horsepower in the same span than conventional ABC belts, this enables you to reduce drive cost
- Greater horsepower allows for smaller drive sheaves using 358 belts can allow for smaller drive components while still meeting the drive requirements, thus lowering the overall drive cost
- Browning® belts offer the Code 1 match belt system on all classical and 358 belts, allowing easy selection of just one match number for each belt size, this ensures tighter than RMA standards
Specifications
|
Additional Information |
0.98% Efficiency |
|
Domestic/Import |
Domestic |
|
Material |
EPDM |
|
Outside Length |
25 in |
|
Pitch Length |
25 in |
|
Section Size |
3VX |
|
Series |
Gripnotch Series |
|
Temperature Rating |
250 deg F |
