Browning® 1026152

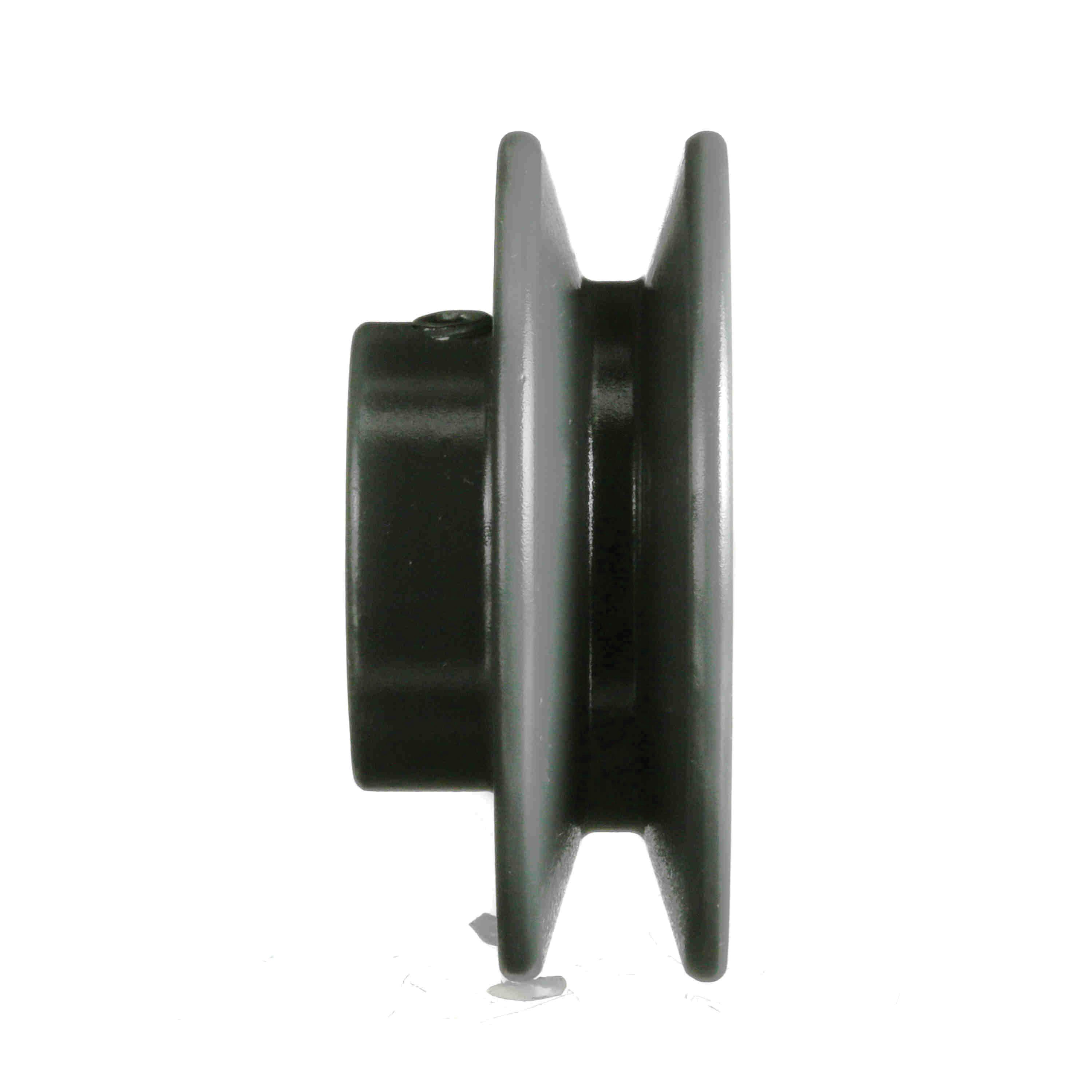

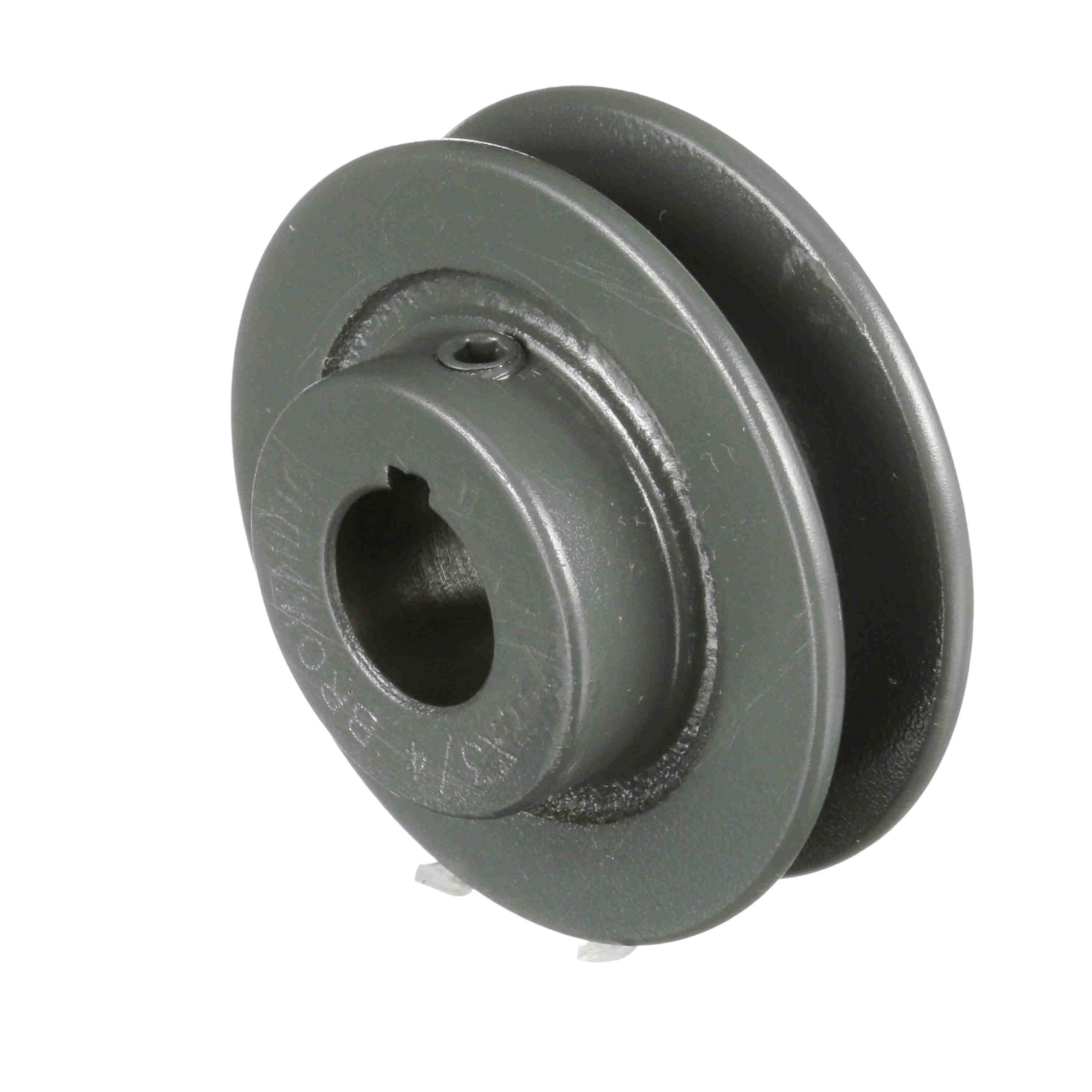

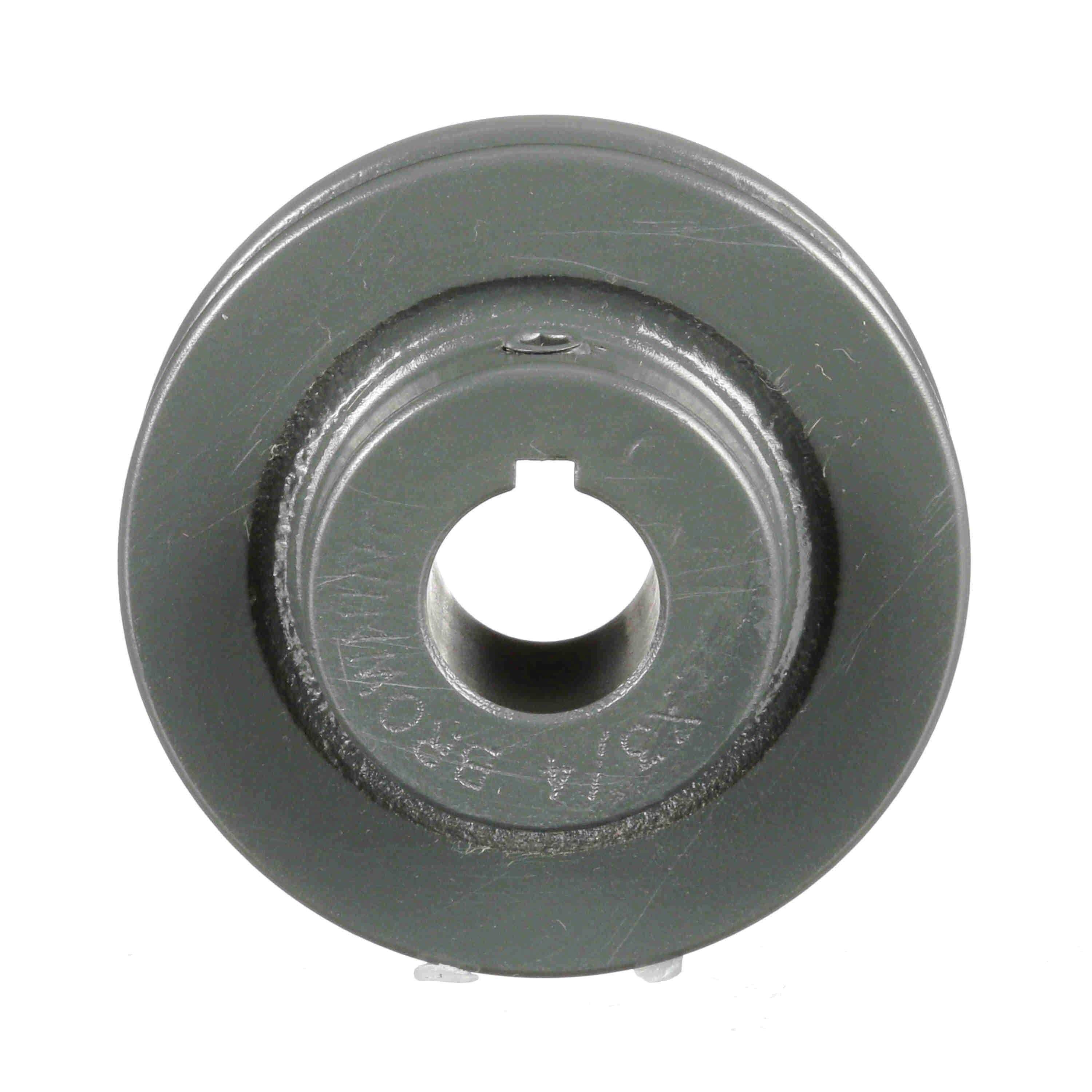

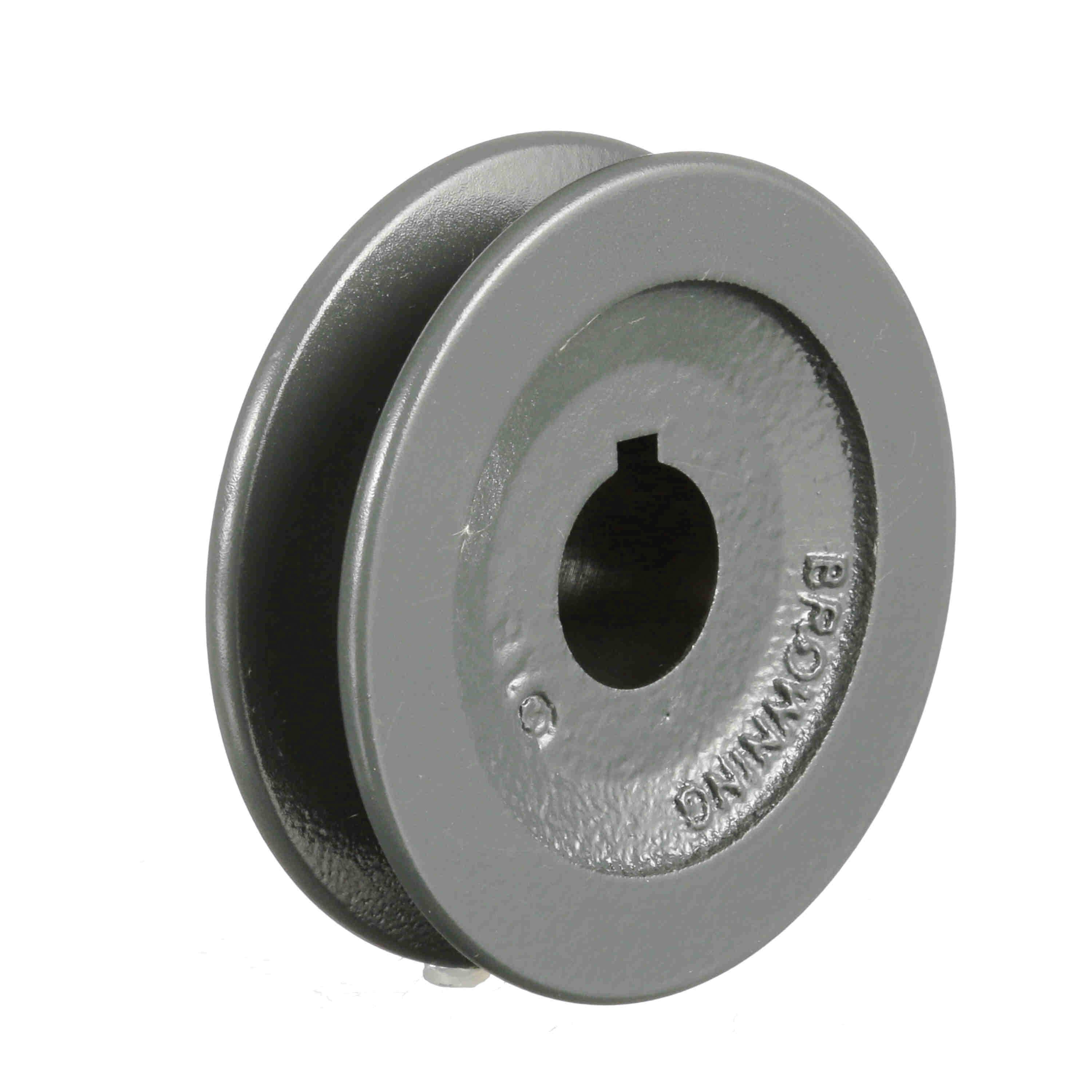

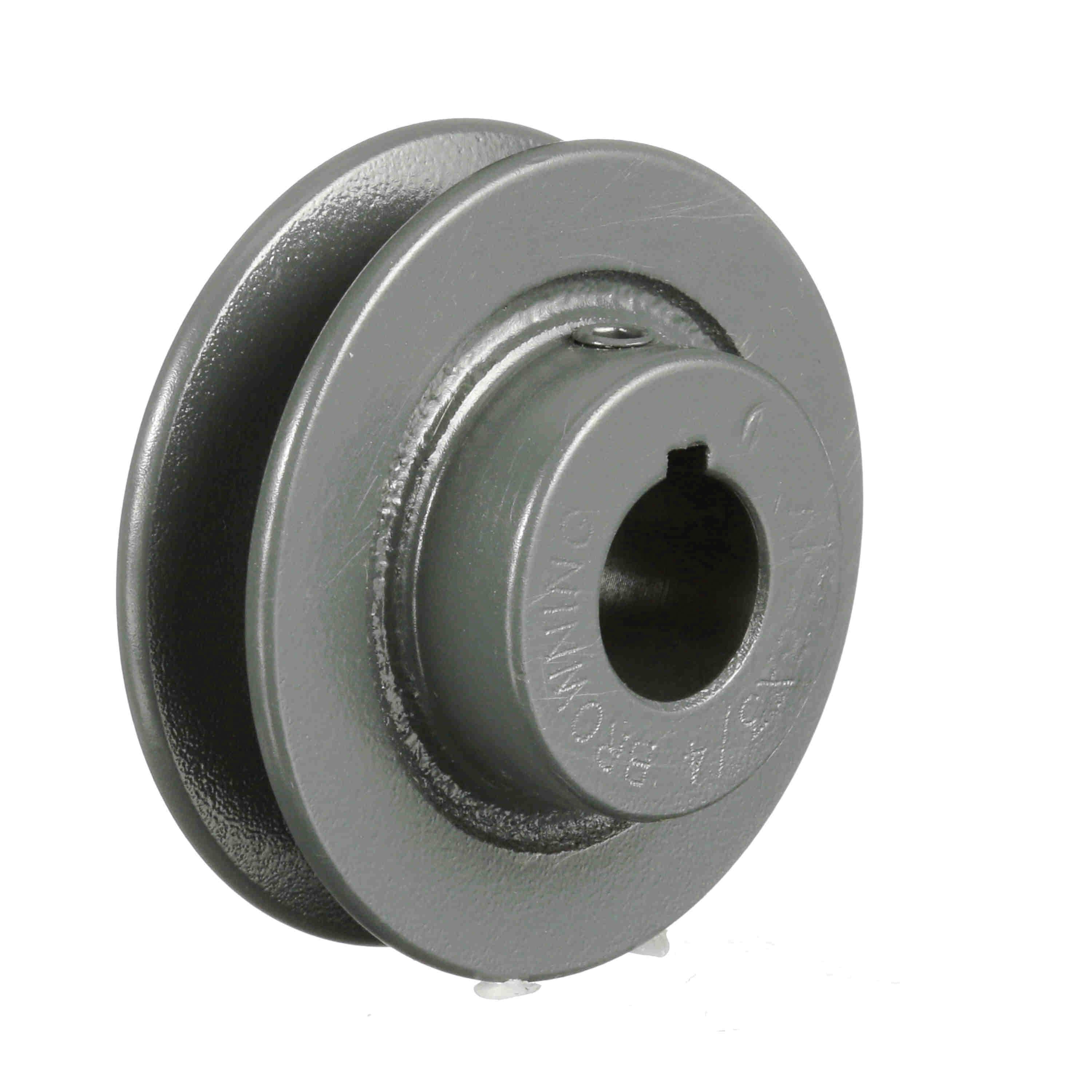

Browning® 1026152 FHP Bore Sheave, Finished with Keyway and SS Bore, 3/4 in Dia Bore, 0.65 in W Face, 2.8 in Dia Pitch
Brand: Browning®
Item No: AK28 3/4
Sign In for Availability
Description
Browning® FHP Bore Sheave, Finished with Keyway and SS, 3/4 in Dia Bore, Belt Section Size: 3L, 4L or A, Number of Grooves: 1, Pitch Diameter: 2.8 in, Face Width: 0.65 in, Keyway Size: 0.18 in, Cast Iron, 2.8 in OD x 1.09 in W, Webbed Pulley, 5/16-18 x 5/16 in Setscrew Thread, 165 in-lb Tightening Torque, 2.26 in Datum Diameter (3L)
Features
- Largest selection of finished bore sheaves of any other manufacturer Browning® offers finished bore sheaves in both A and B combination (A/B) configuration
- All sheaves are statically balanced to assure smooth, vibration-free performance
- Close grain cast iron allows Browning® to machine our sheaves to the closest tolerances possible
Specifications
|
Additional Information |
Webbed Pulley, 5/16-18 x 5/16 in Setscrew Thread, 165 in-lb Tightening Torque, 2.26 in Datum Diameter (3L) |
|
Belt Section Size |
3L, 4L or A |
|
Bore Diameter |
3/4 in |
|
Bore Type |
Finished with Keyway and SS |
|
Dimensions |
2.8 in OD x 1.09 in W |
|
Face Width |
0.65 in |
|
Keyway Size |
0.18 in |
|
Material |
Cast Iron |
|
Number of Grooves |
1 |
|
Pitch Diameter |
2.8 in |
