Browning® 1026459

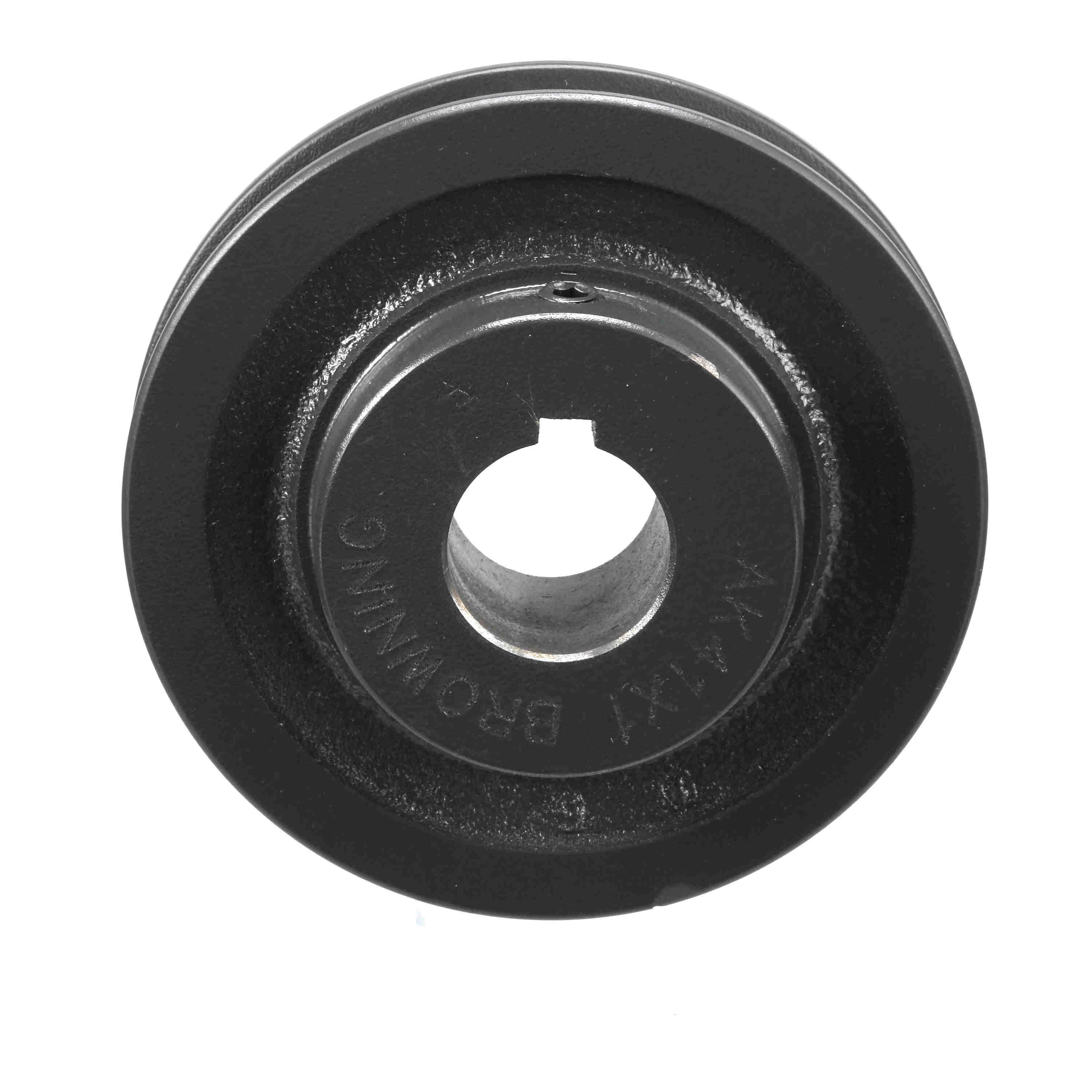

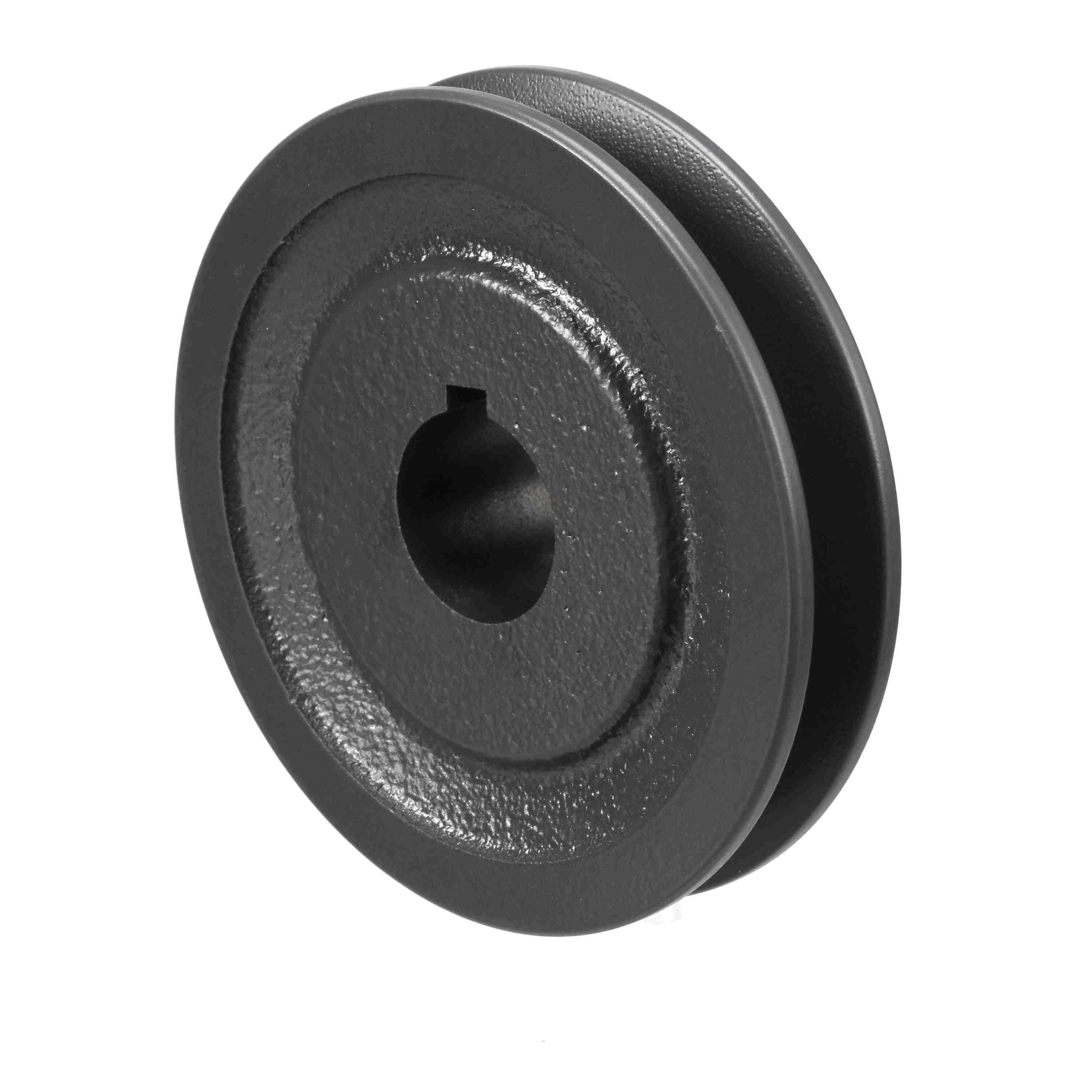

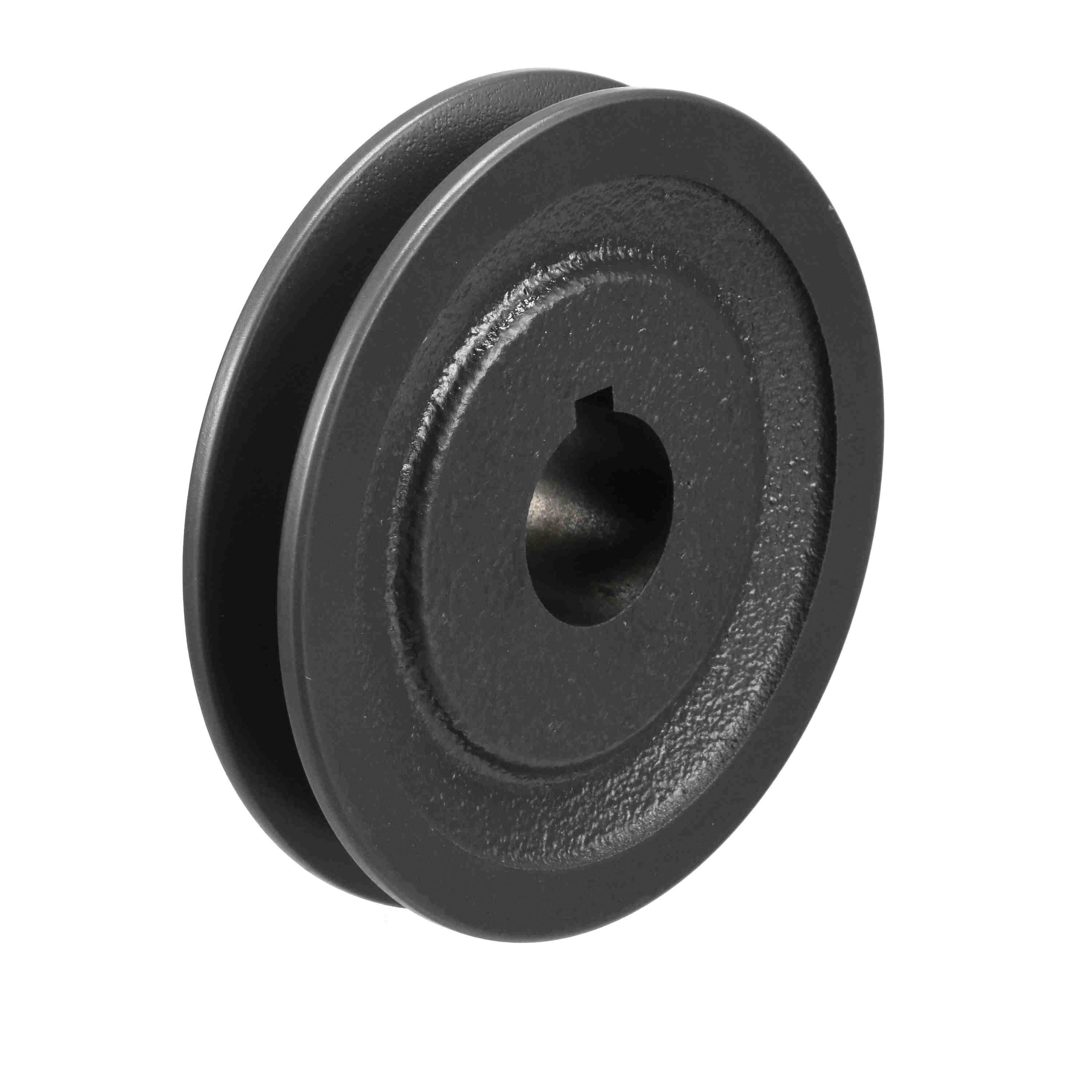

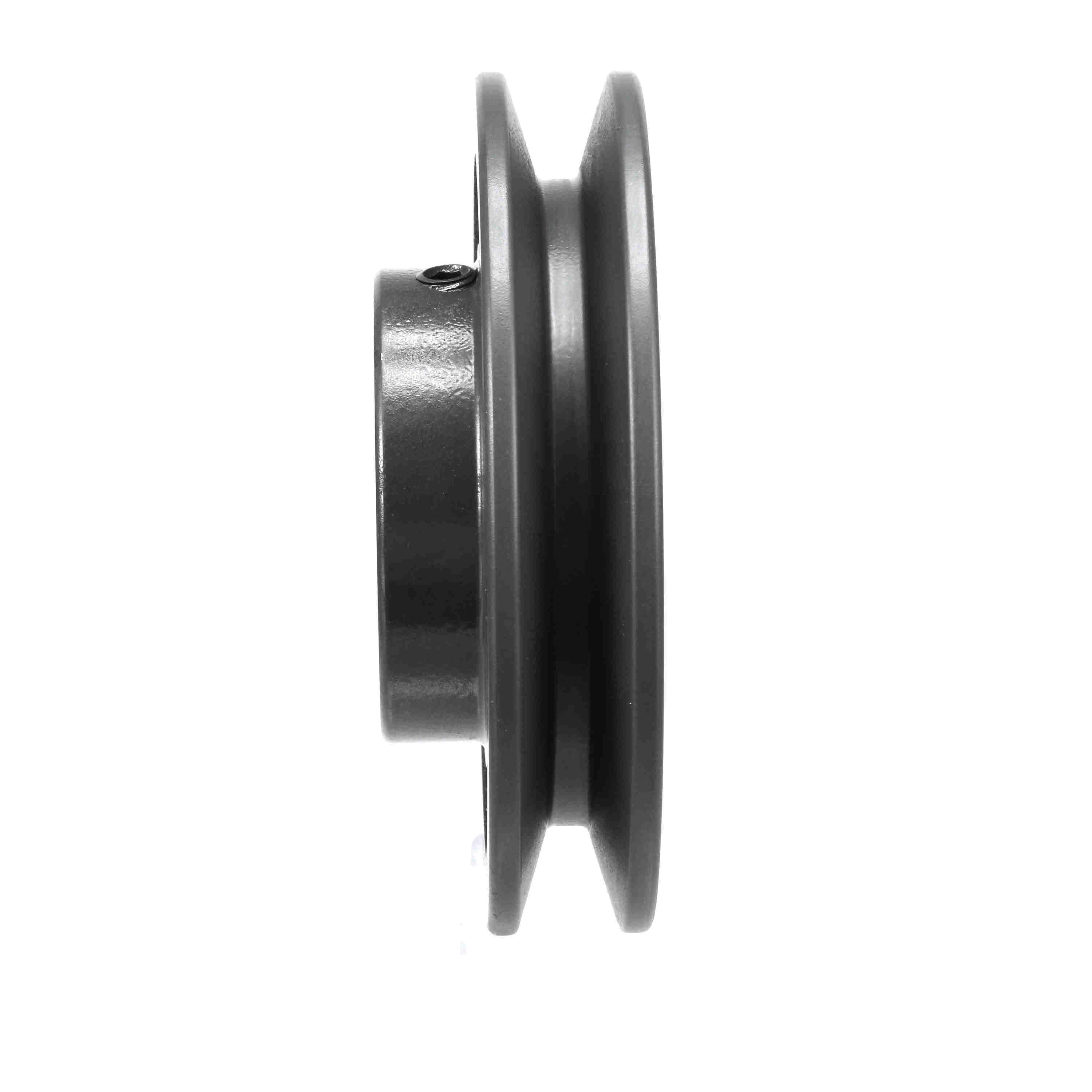

Browning® 1026459 FHP Bore Sheave, Finished with Keyway and SS Bore, 1 in Dia Bore, 3/4 in W Face, 3.9 in Dia Pitch
Brand: Browning®
Item No: AK41 1
Sign In for Availability
Description
Browning® FHP Bore Sheave, Finished with Keyway and SS, 1 in Dia Bore, Belt Section Size: 3L, A, Number of Grooves: 1, Pitch Diameter: 3.9 in, Face Width: 3/4 in, Keyway Size: 1/4 x 1/8 in, Cast Iron, 3.95 in OD x 1.21 in W, Webbed Pulley, 5/16-18 x 3/8 in Setscrew, 165 in-lb Tightening Torque
Features
- Largest selection of finished bore sheaves of any other manufacturer Browning® offers finished bore sheaves in both A and B combination (A/B) configuration
- All sheaves are statically balanced to assure smooth, vibration-free performance
- Close grain cast iron allows Browning® to machine our sheaves to the closest tolerances possible
Specifications
|
Additional Information |
Webbed Pulley, 5/16-18 x 3/8 in Setscrew, 165 in-lb Tightening Torque |
|
Belt Section Size |
3L, A |
|
Bore Diameter |
1 in |
|
Bore Type |
Finished with Keyway and SS |
|
Dimensions |
3.95 in OD x 1.21 in W |
|
Face Width |
3/4 in |
|
Keyway Size |
1/4 x 1/8 in |
|
Material |
Cast Iron |
|
Number of Grooves |
1 |
|
Pitch Diameter |
3.9 in |
