Browning® B 1 1/2

Description

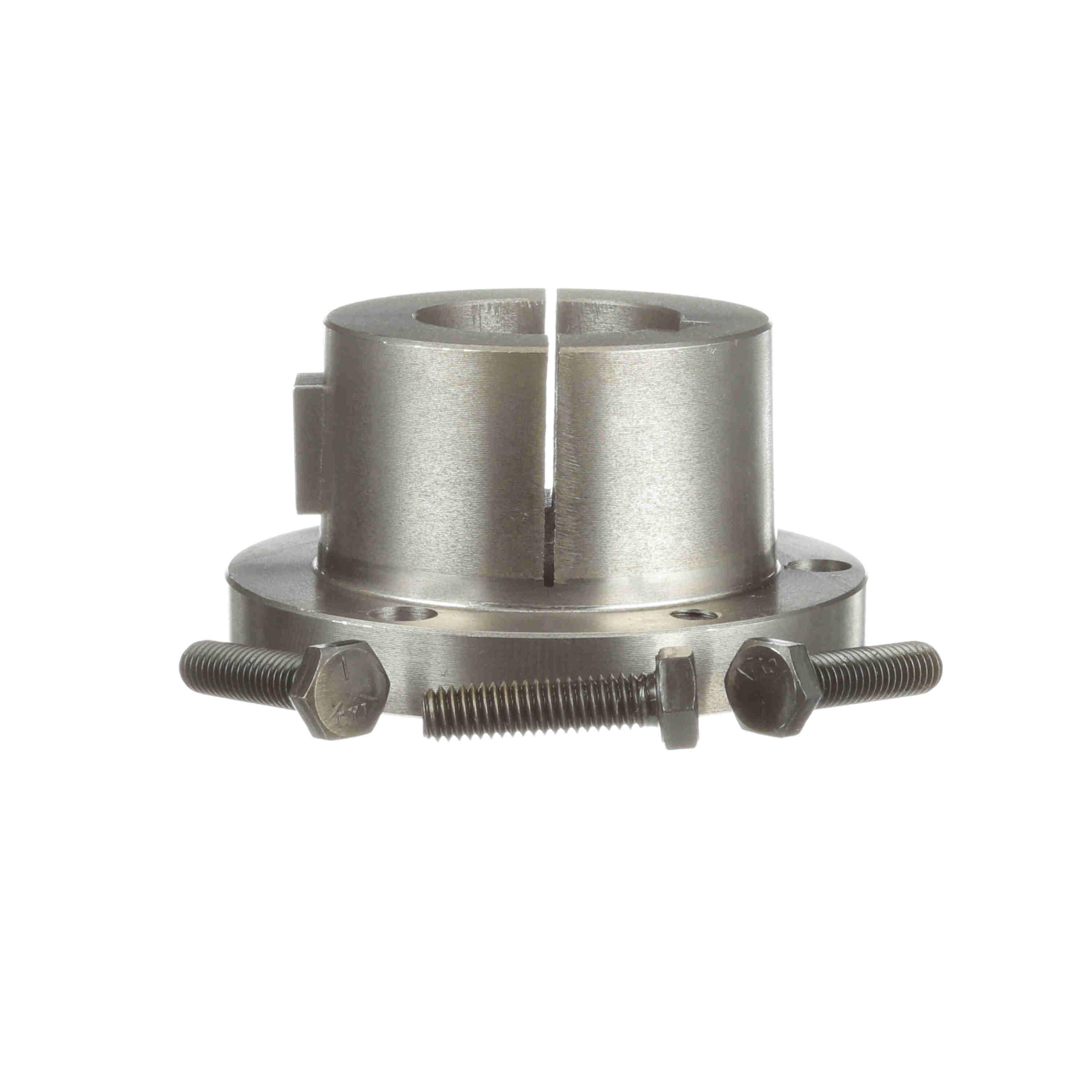

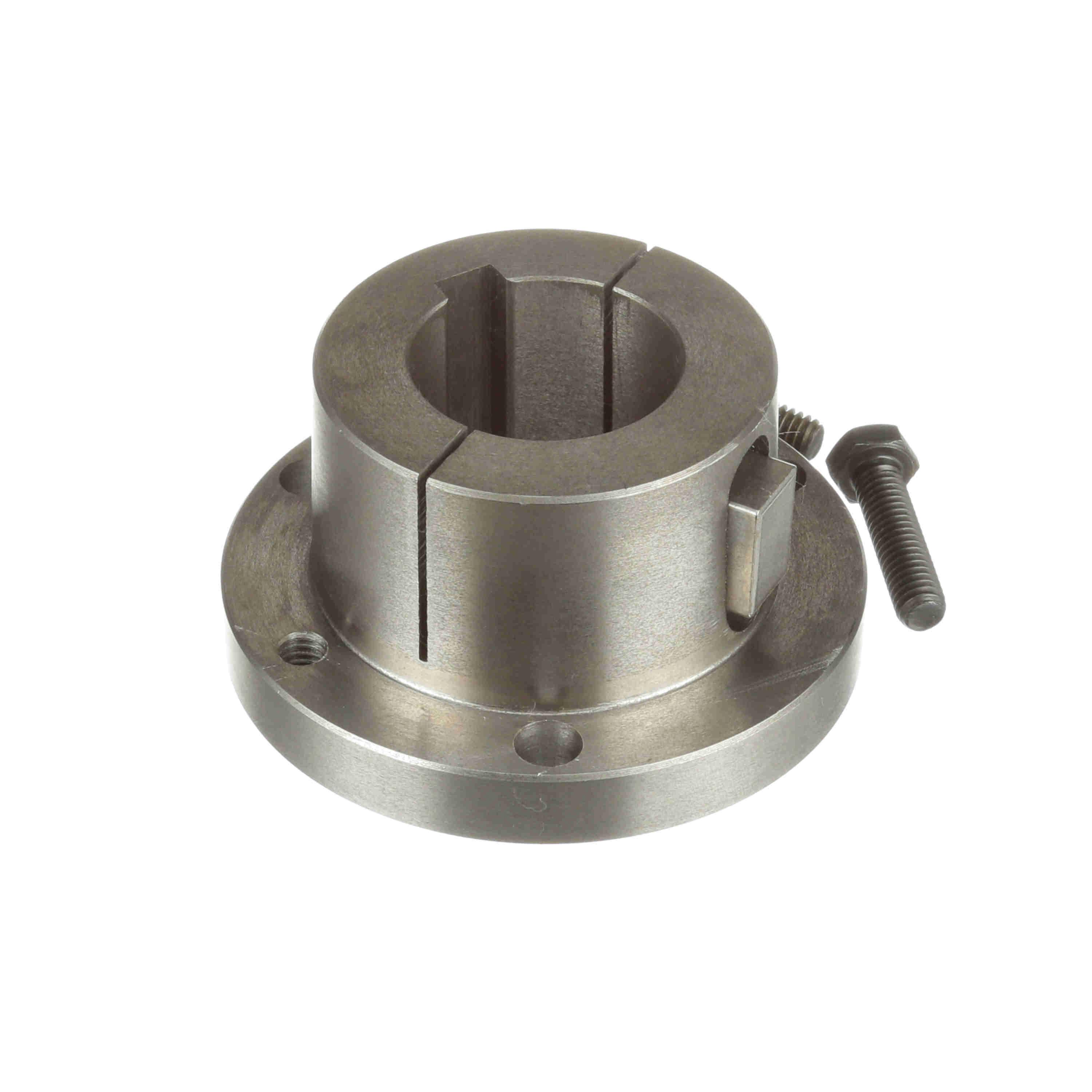

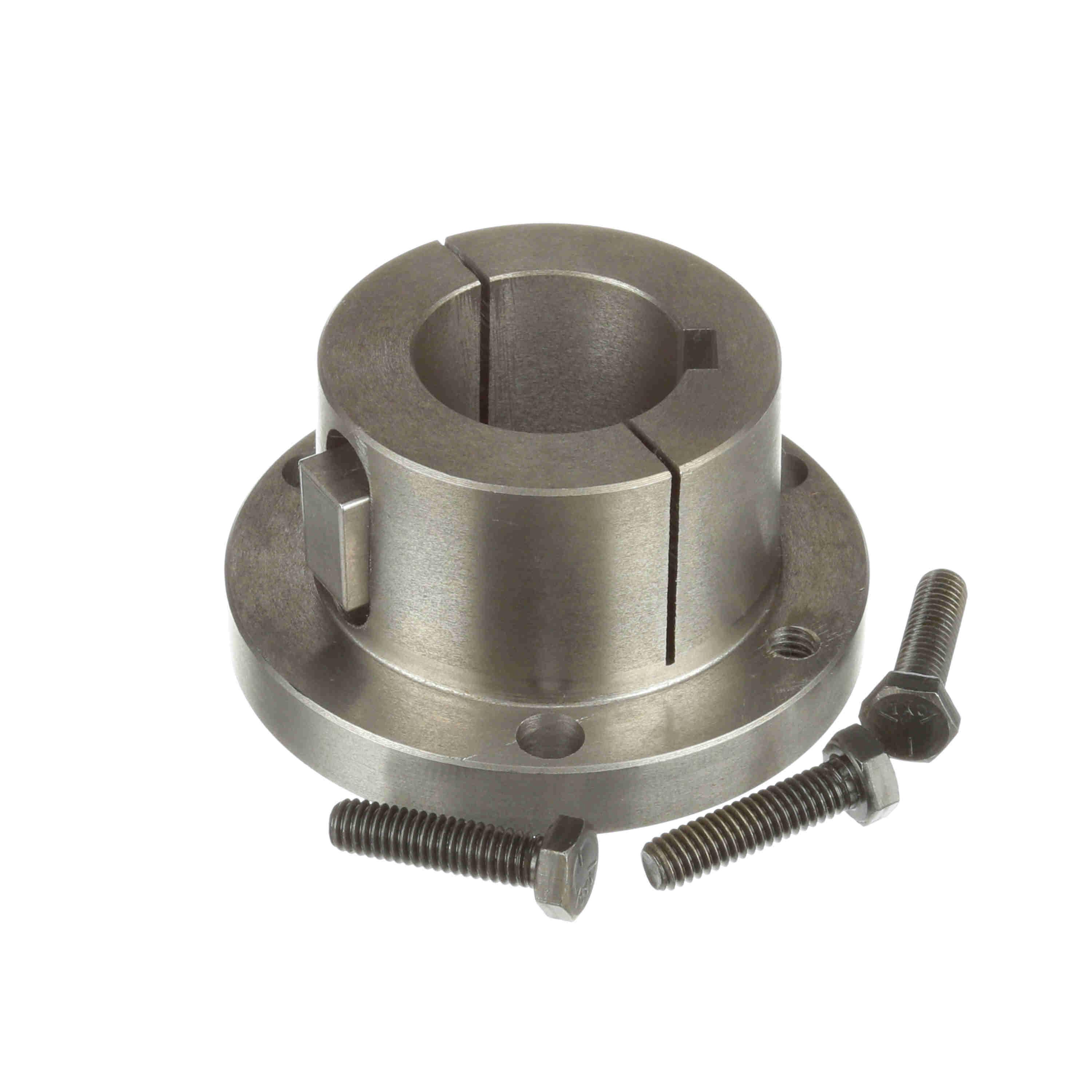

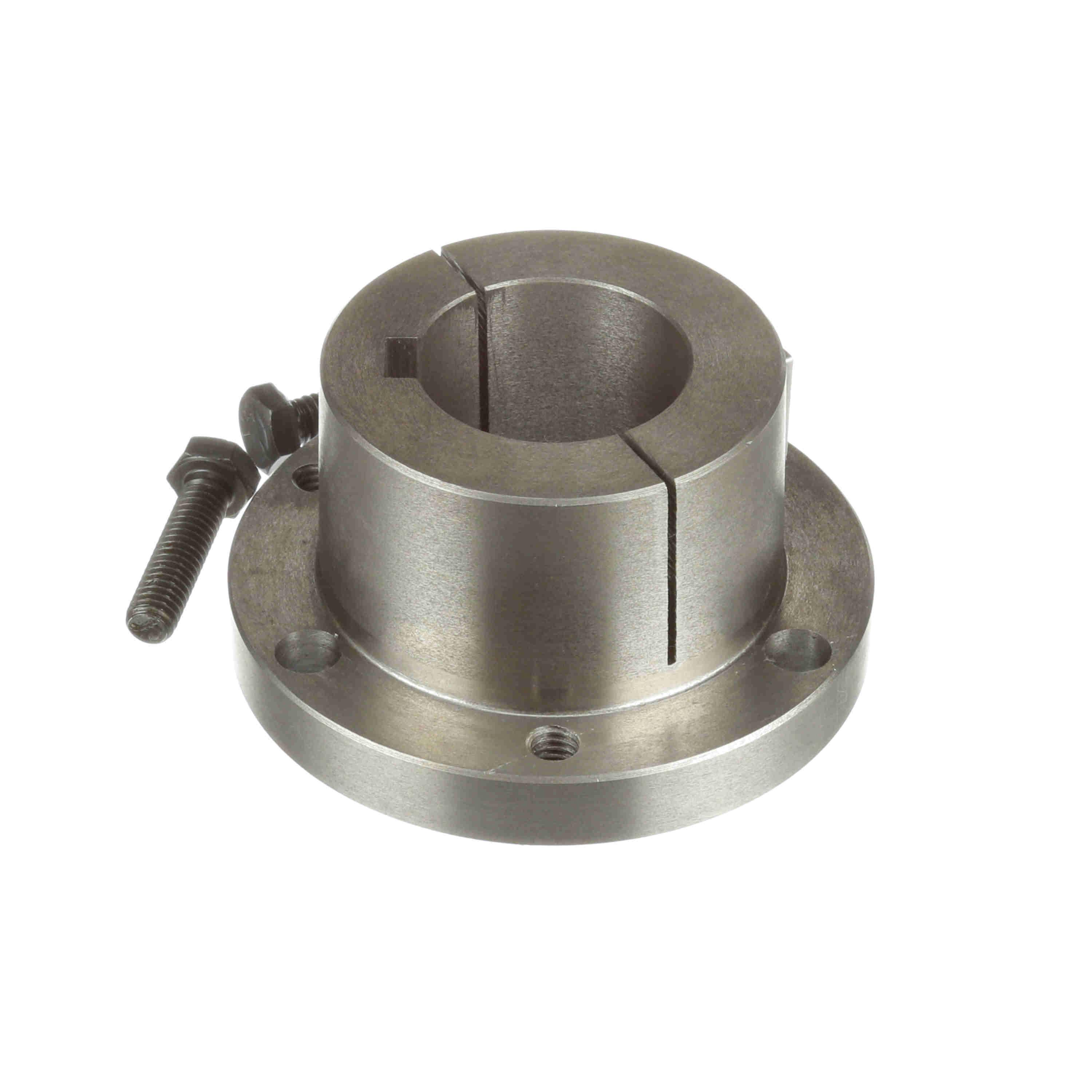

Browning® Split Tapered Bushing, Model: B-Type1_Bushing_Master, 1-1/2 in Bore Diameter, 3-11/16 in OD, 1-15/16 in Length, 3/8 x 3/16 in Keyway Size, Solid Flange Type, 3 Number of Cap Screws, 5/16 x 1-1/4 in Cap Screw Size, 192 in-lb Torque, Steel

Features

• If this bushing ever fails Browning will replace it free of charge
• Solid flange and double split barrel assures better concentricity to the shaft
• Key-to-key drive, with keys on both the shaft and product to provide the strongest possible drive
• 3/4 in/ft taper on barrel, self-locking taper provides the highest degree of mechanical locking product to product
• Lifetime warranty - if this bushing ever fails Browning will replace it free of charge
