Browning® 1029636

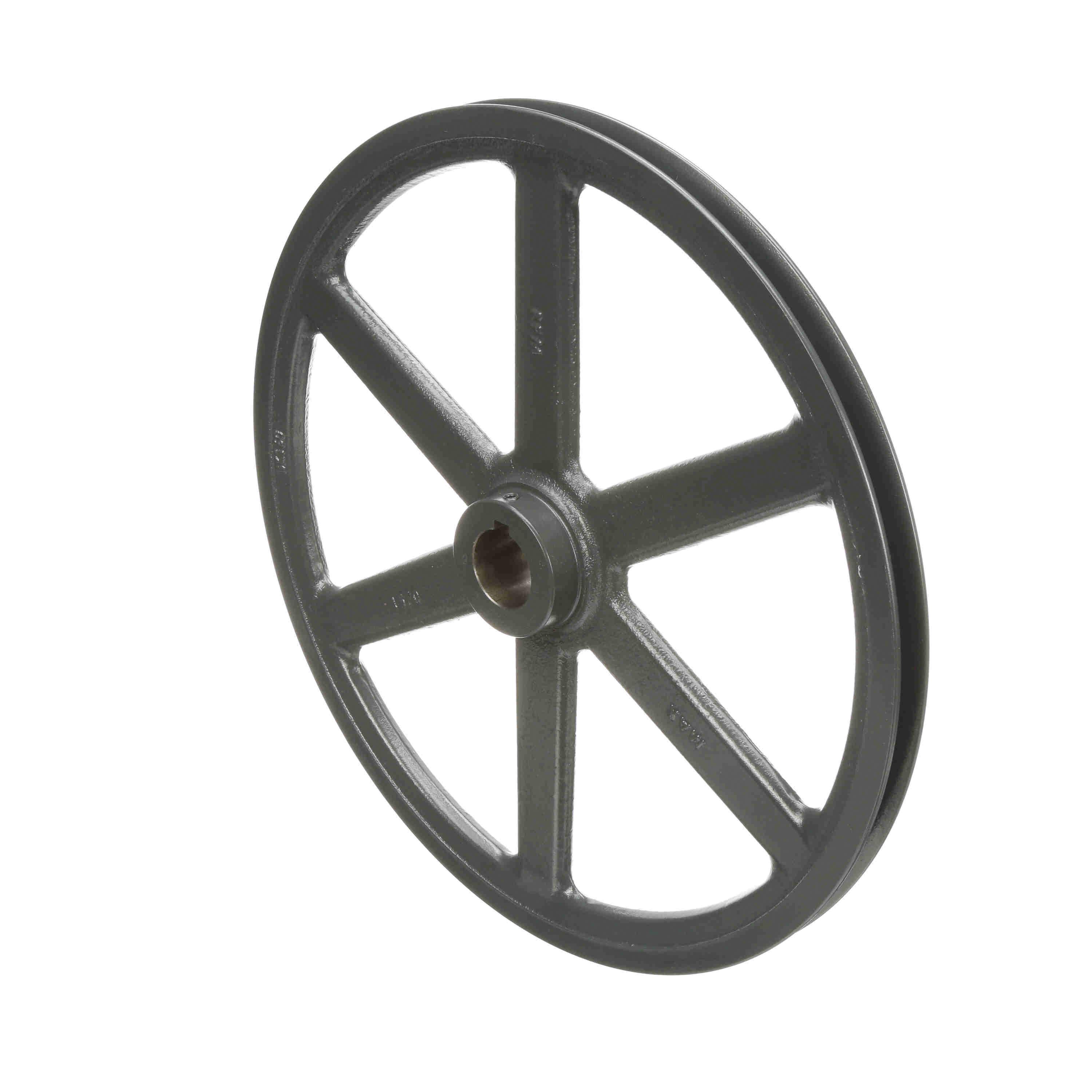

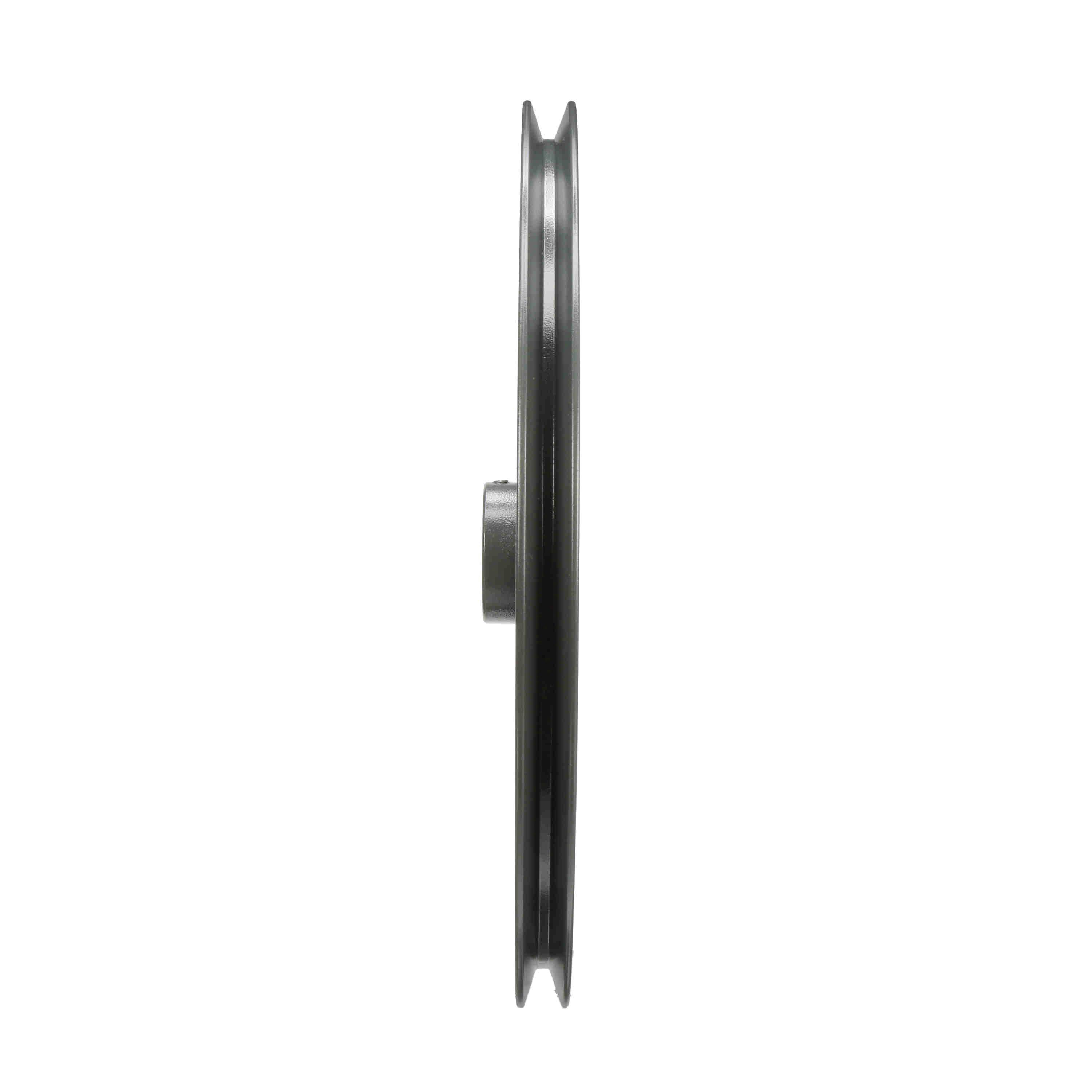

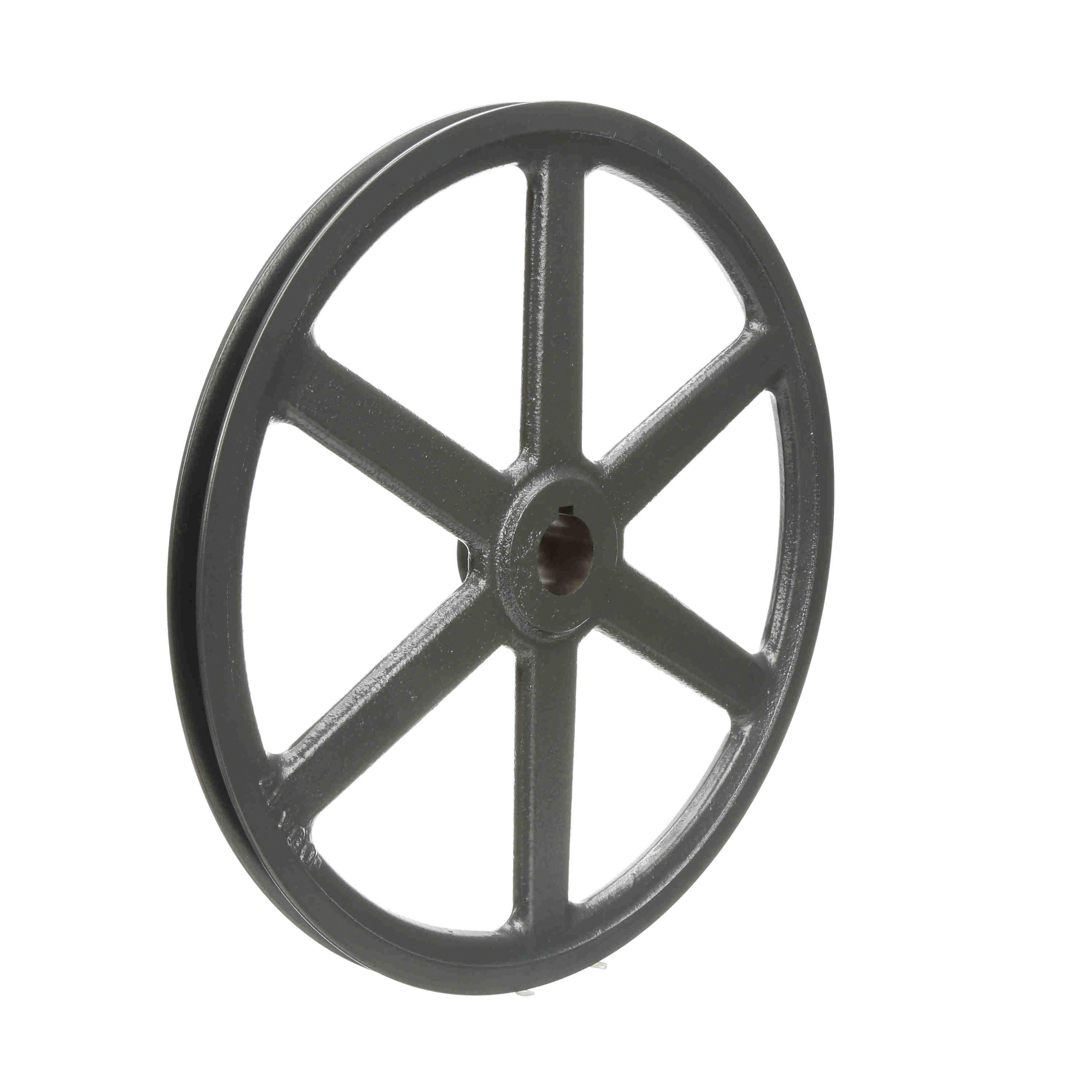

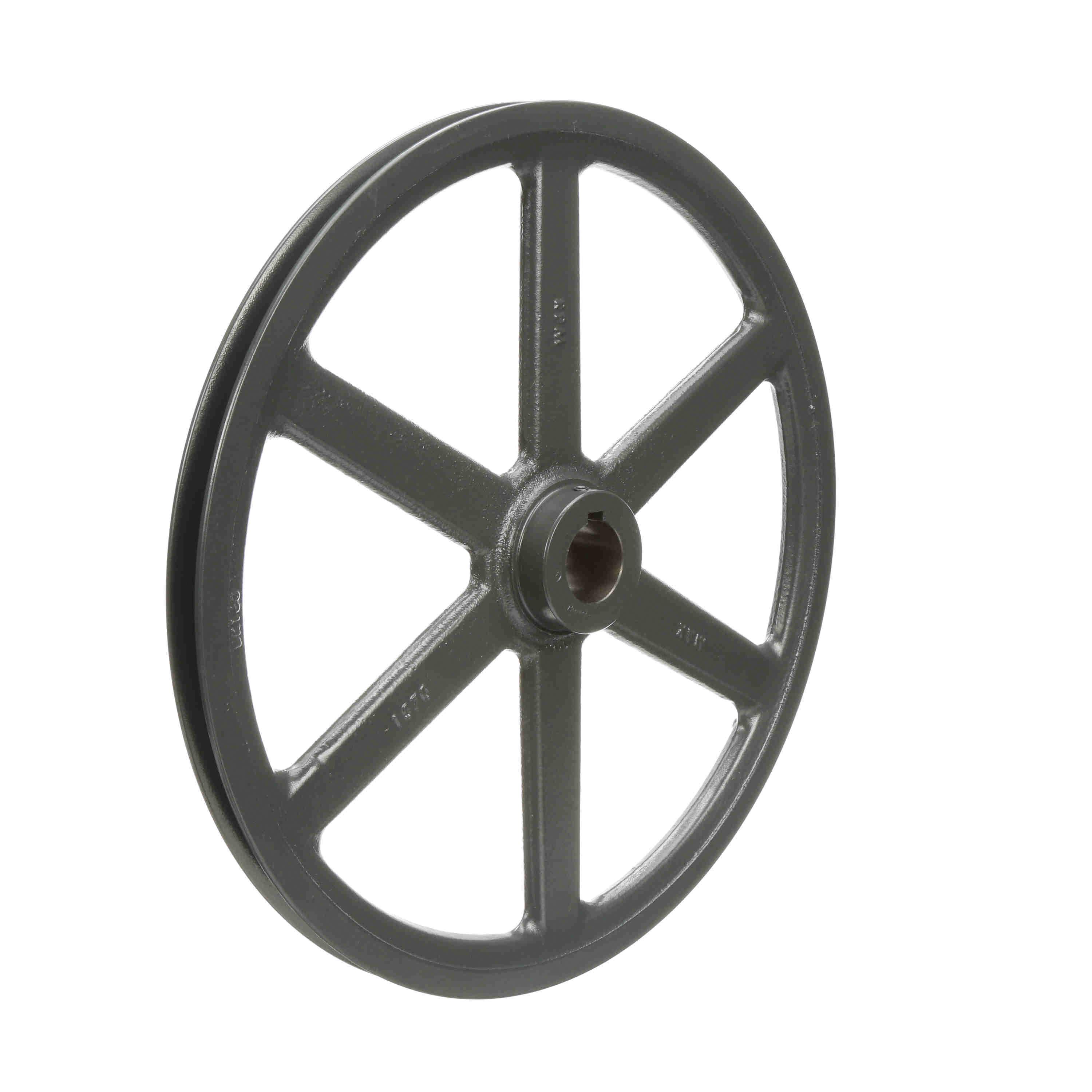

Browning® 1029636 FHP Bore Sheave, Finished Bore, 1.43 in Dia Bore, 0.88 in W Face, 15.2 x 15.7 in Dia Pitch
Brand: Browning®
Item No: BK160 1-7/16
Sign In for Availability
Description
Browning® FHP Bore Sheave, Finished, 1.43 in Dia Bore, Belt Section Size: 4L or A, 5L or B, Number of Grooves: 1, Pitch Diameter: 15.2 x 15.7 in, Face Width: 0.88 in, Keyway Size: 0.37 x 0.18 in, Cast Iron, 15.75 in OD x 1.54 in W, One Hub, Spoked Pulley, 5/16-18 x 5/16 in Setscrew, 165 in-lb Tightening Torque
Features
- Largest selection of finished bore sheaves of any other manufacturer Browning® offers finished bore sheaves in both A and B combination (A/B) configuration
- Combination groove all Browning® BK sheaves permit the running of A, 4L, B and 5L belts to be run in them, thus providing a variety of different pitch diameters and horsepower's
Specifications
|
Additional Information |
One Hub, Spoked Pulley, 5/16-18 x 5/16 in Setscrew, 165 in-lb Tightening Torque |
|
Belt Section Size |
4L or A, 5L or B |
|
Bore Diameter |
1.43 in |
|
Bore Type |
Finished |
|
Dimensions |
15.75 in OD x 1.54 in W |
|
Face Width |
0.88 in |
|
Keyway Size |
0.37 x 0.18 in |
|
Material |
Cast Iron |
|
Number of Grooves |
1 |
|
Pitch Diameter |
15.2 x 15.7 in |
