Browning® 1028489

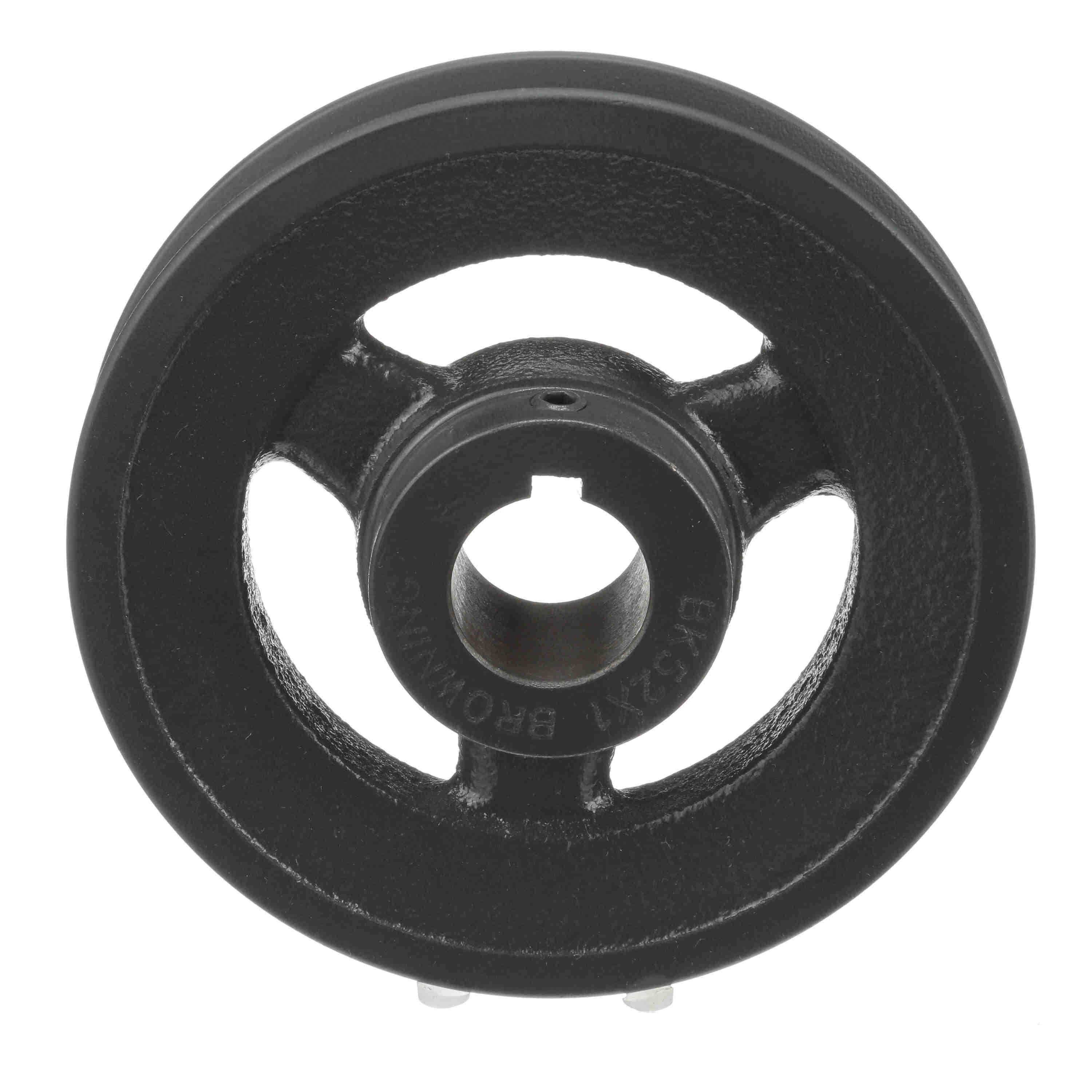

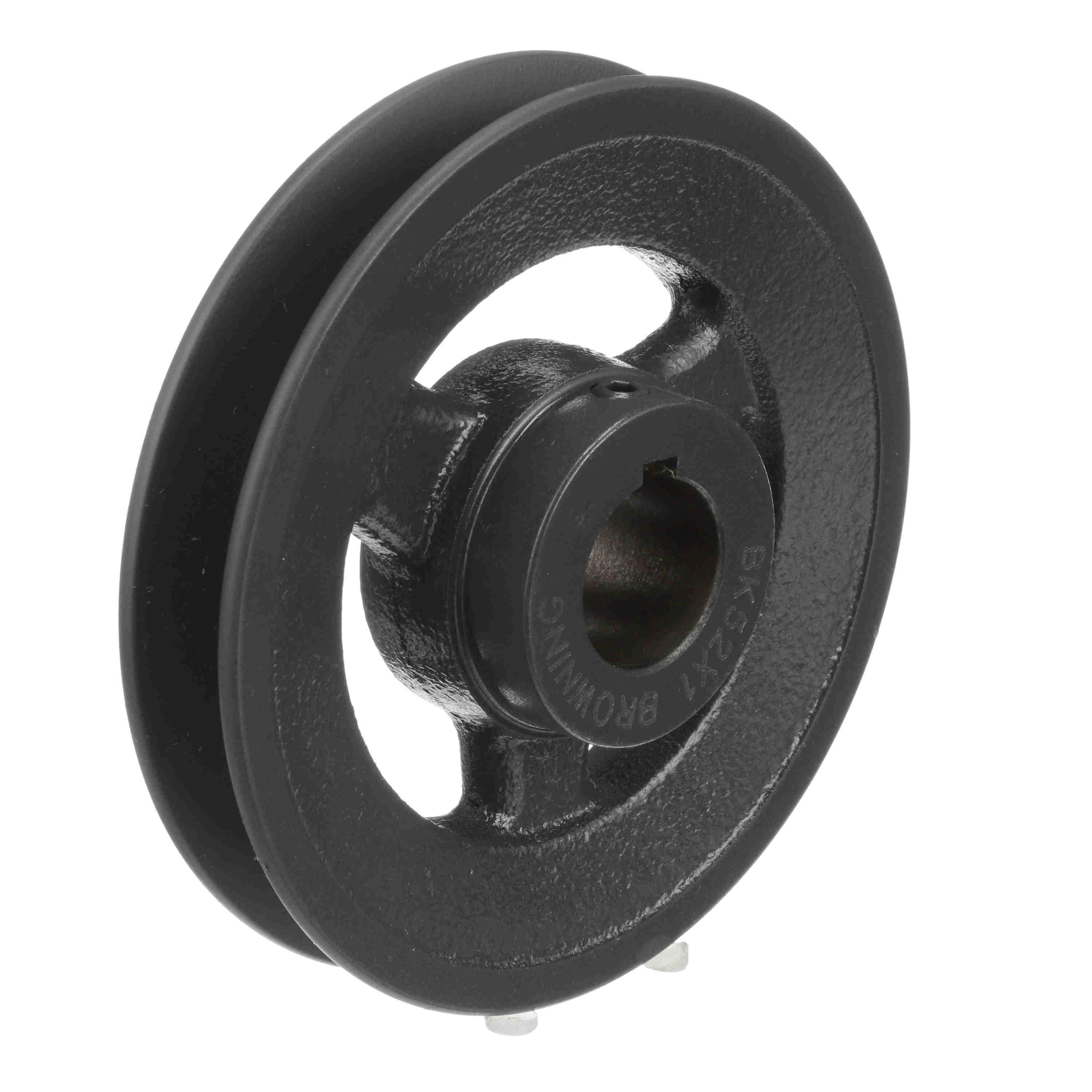

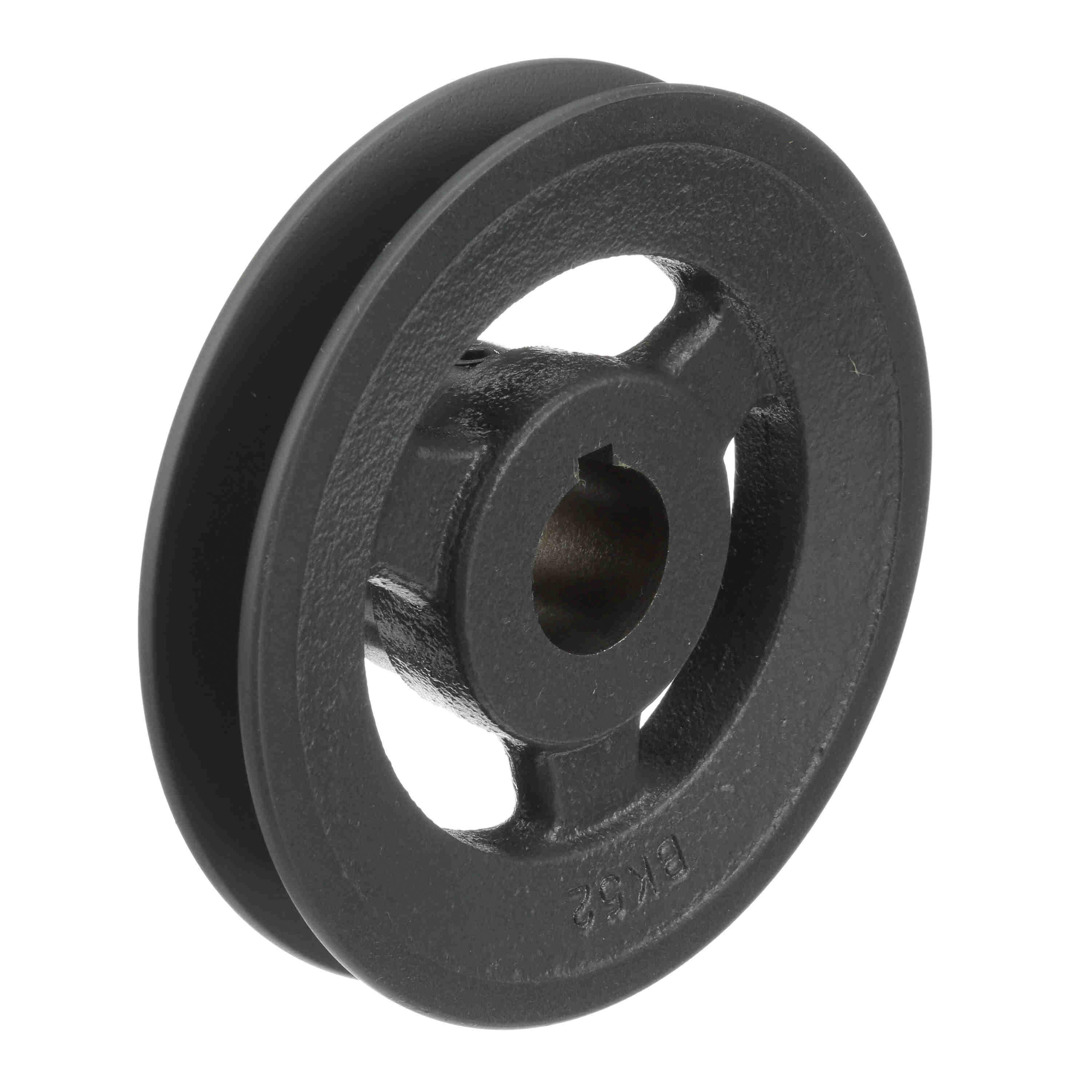

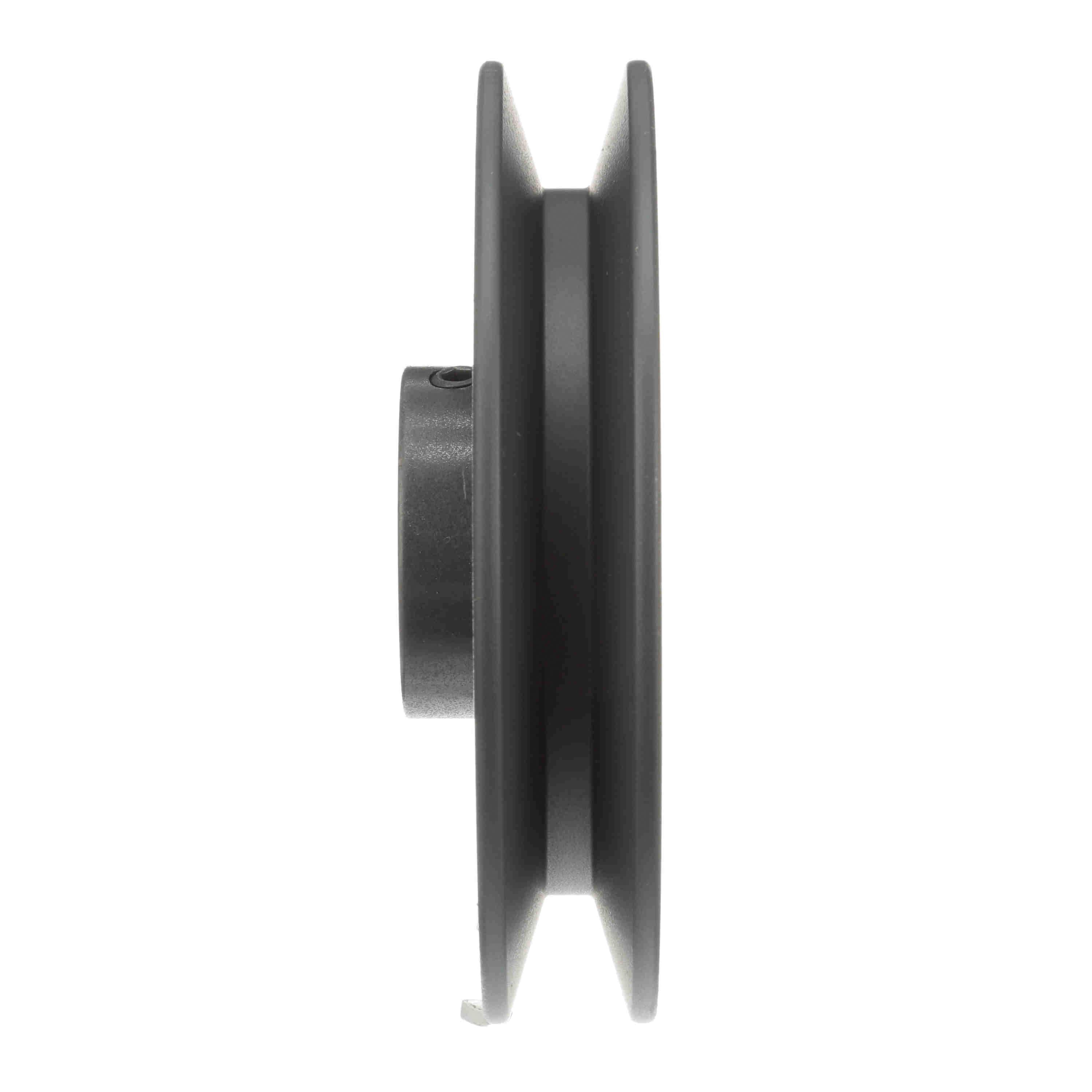

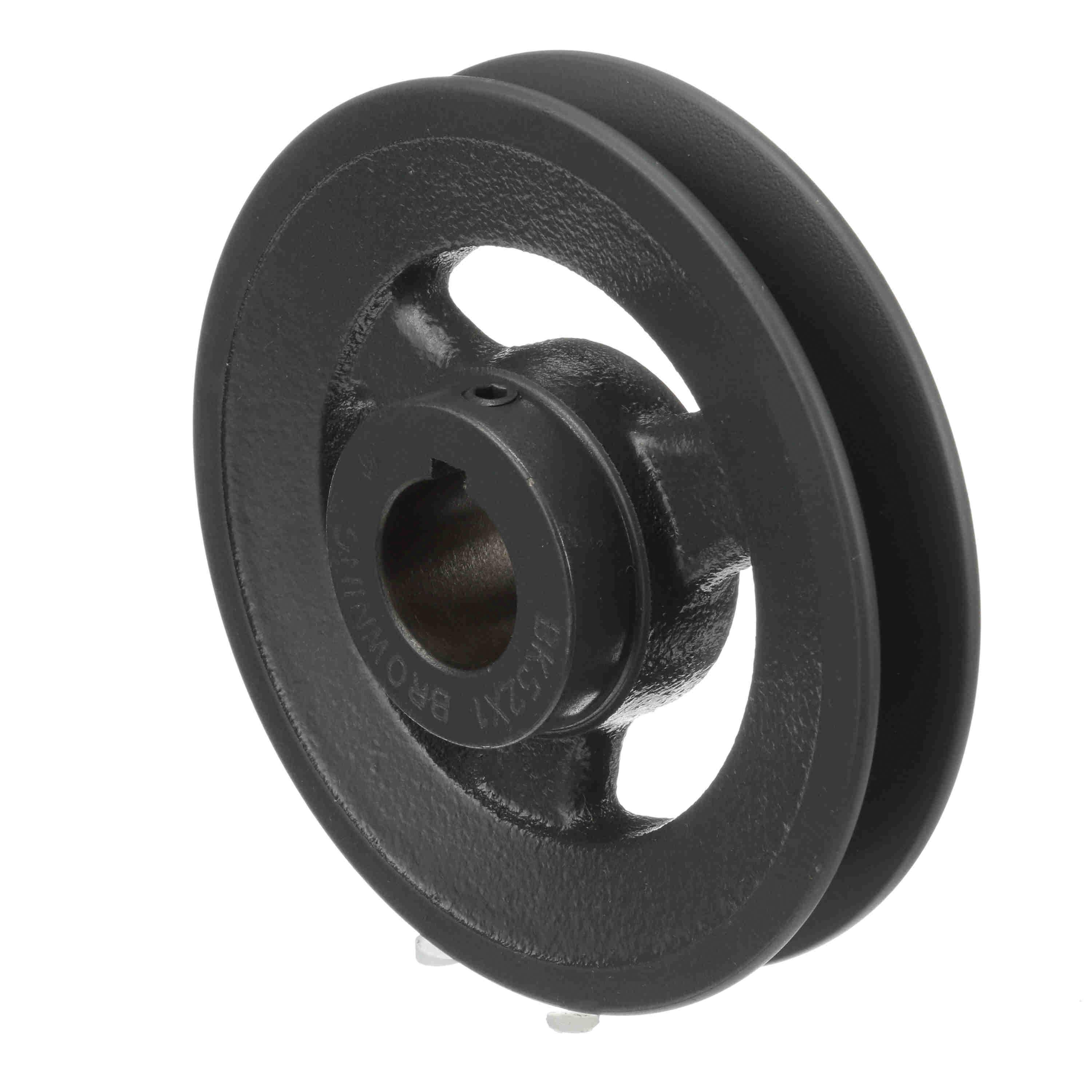

Browning® 1028489 FHP Bore Sheave, Finished with Keyway and SS Bore, 1 in Dia Bore, 0.87 in W Face
Brand: Browning®
Item No: BK52 1
Sign In for Availability
Description
Browning® FHP Bore Sheave, Finished with Keyway and SS, 1 in Dia Bore, Belt Section Size: 4L or A, 5L or B, Number of Grooves: 1, Pitch Diameter: 4.4 x 4.9 in, Face Width: 0.87 in, Keyway Size: 1/4 x 1/8 in, Cast Iron, 4.95 in OD x 1.28 in W, Spoked Pulley, 5/16-18 x 1/4 in Setscrew, 90 in-lb Tightening Torque
Features
- Largest selection of finished bore sheaves of any other manufacturer Browning® offers finished bore sheaves in both A and B combination (A/B) configuration
- Combination groove all Browning® BK sheaves permit the running of A, 4L, B and 5L belts to be run in them, thus providing a variety of different pitch diameters and horsepower's
Specifications
|
Additional Information |
Spoked Pulley, 5/16-18 x 1/4 in Setscrew, 90 in-lb Tightening Torque |
|
Belt Section Size |
4L or A, 5L or B |
|
Bore Diameter |
1 in |
|
Bore Type |
Finished with Keyway and SS |
|
Dimensions |
4.95 in OD x 1.28 in W |
|
Face Width |
0.87 in |
|
Keyway Size |
1/4 x 1/8 in |
|
Material |
Cast Iron |
|
Number of Grooves |
1 |
|
Pitch Diameter |
4.4 x 4.9 in |
