Browning® 1029115
Browning® 1029115 FHP Bore Sheave, Finished with Keyway and SS Bore, 1 in Dia Bore, 0.87 in W Face
Brand: Browning®
Item No: BK85 1
Sign In for Availability
Description

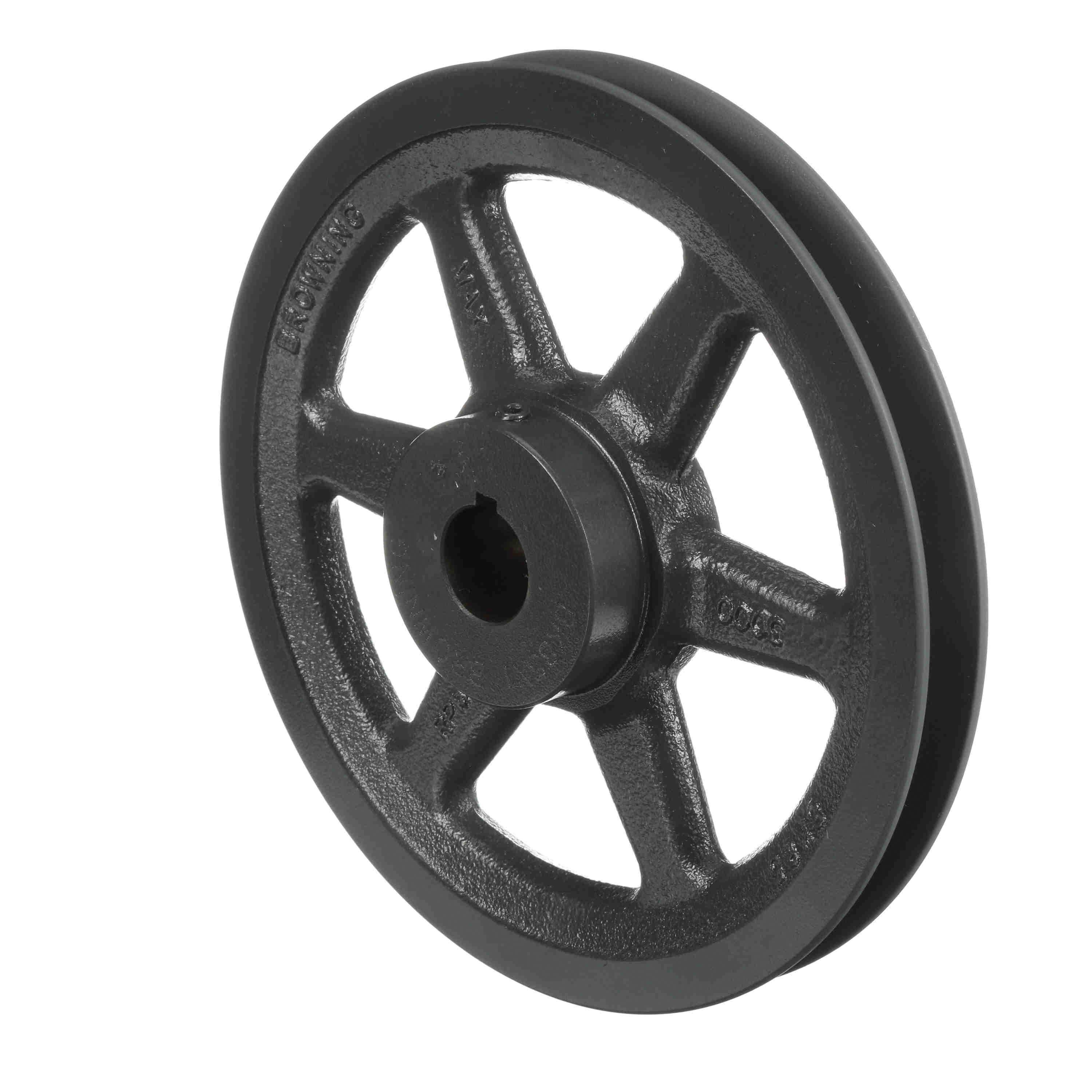

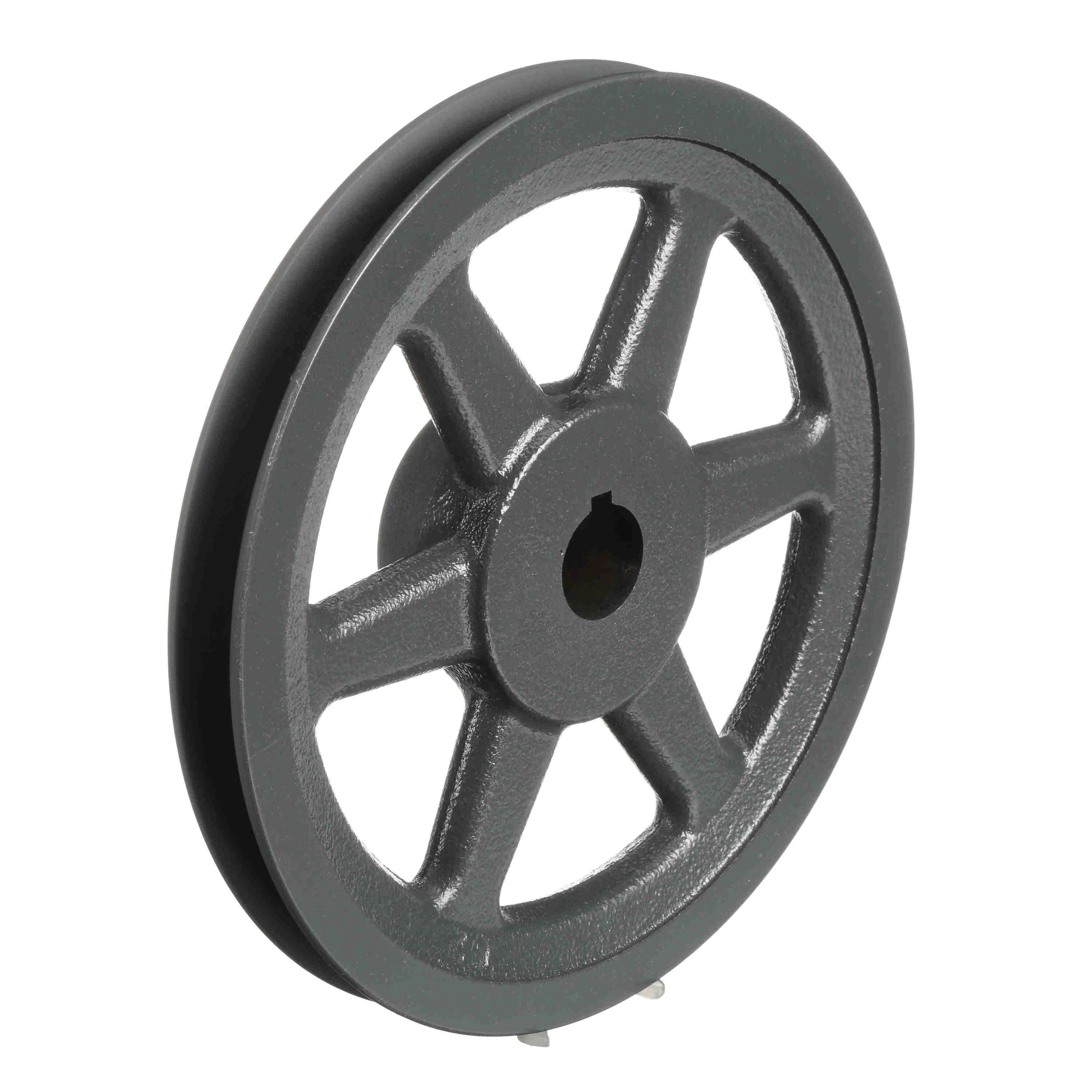

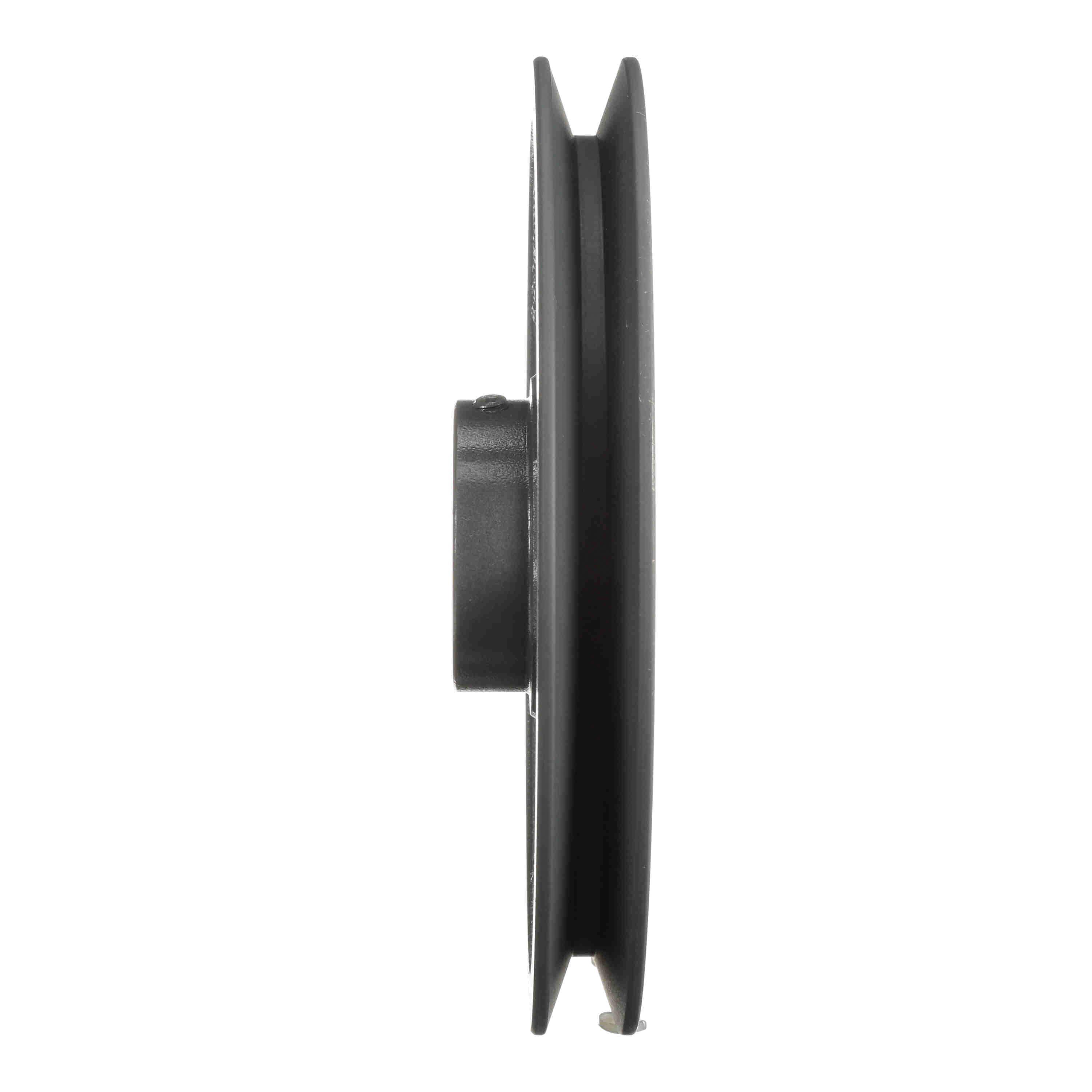

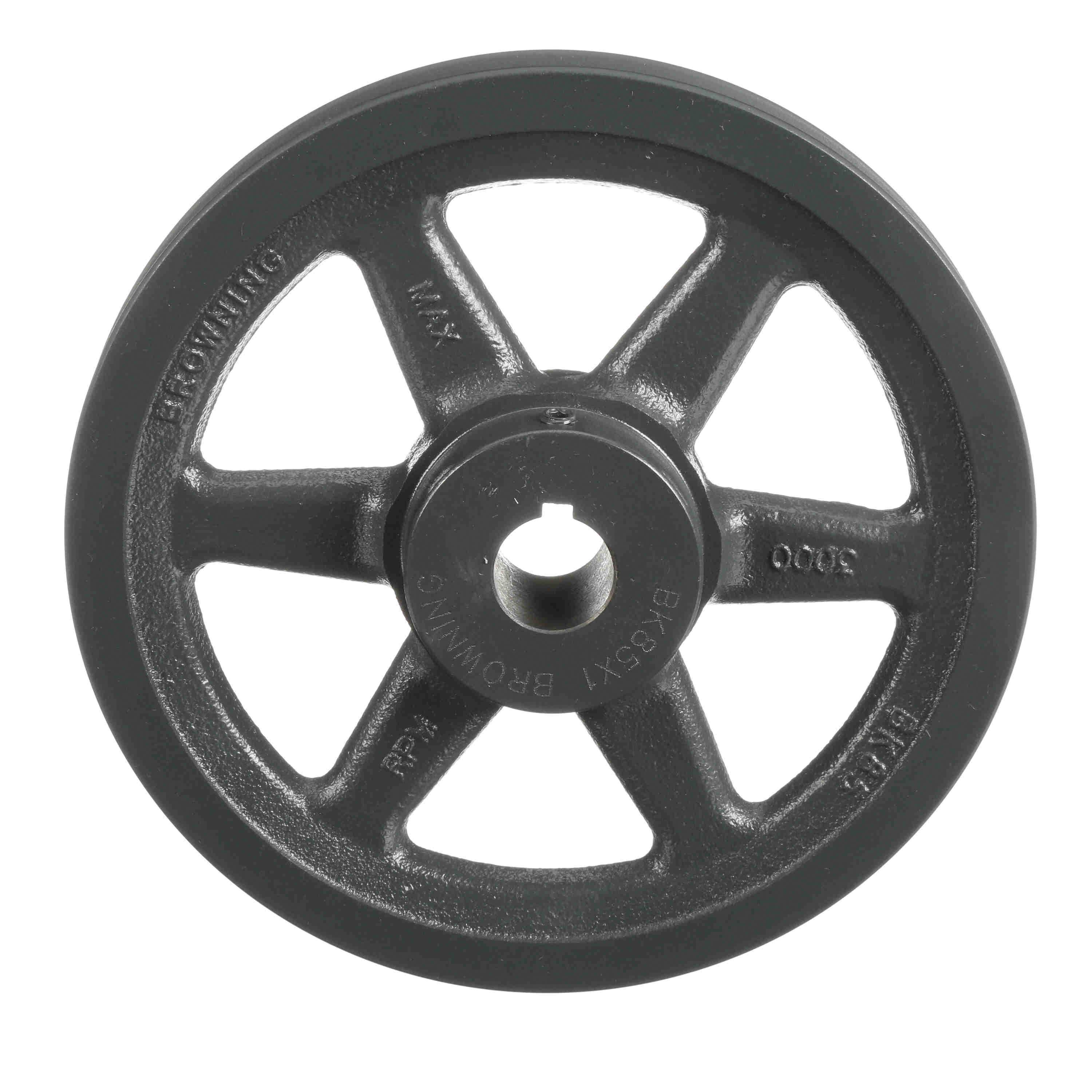

Browning® FHP Bore Sheave, Finished with Keyway and SS, 1 in Dia Bore, Belt Section Size: 4L or A, 5L or B, Number of Grooves: 1, Pitch Diameter: 7.7 x 8.2 in, Face Width: 0.87 in, Keyway Size: 1/4 in, Cast Iron, 8.25 in OD x 1.53 in W, Spoked Pulley, 5/16-18 x 3/8 in Setscrew, 165 in-lb Tightening Torque
Features
- Largest selection of finished bore sheaves of any other manufacturer Browning® offers finished bore sheaves in both A and B combination (A/B) configuration
- Combination groove all Browning® BK sheaves permit the running of A, 4L, B and 5L belts to be run in them, thus providing a variety of different pitch diameters and horsepower's
Specifications
|
Additional Information |
Spoked Pulley, 5/16-18 x 3/8 in Setscrew, 165 in-lb Tightening Torque |
|
Belt Section Size |
4L or A, 5L or B |
|
Bore Diameter |
1 in |
|
Bore Type |
Finished with Keyway and SS |
|
Dimensions |
8.25 in OD x 1.53 in W |
|
Face Width |
0.87 in |
|
Keyway Size |
1/4 in |
|
Material |
Cast Iron |
|
Number of Grooves |
1 |
|
Pitch Diameter |
7.7 x 8.2 in |
