Browning® 3528064

Description

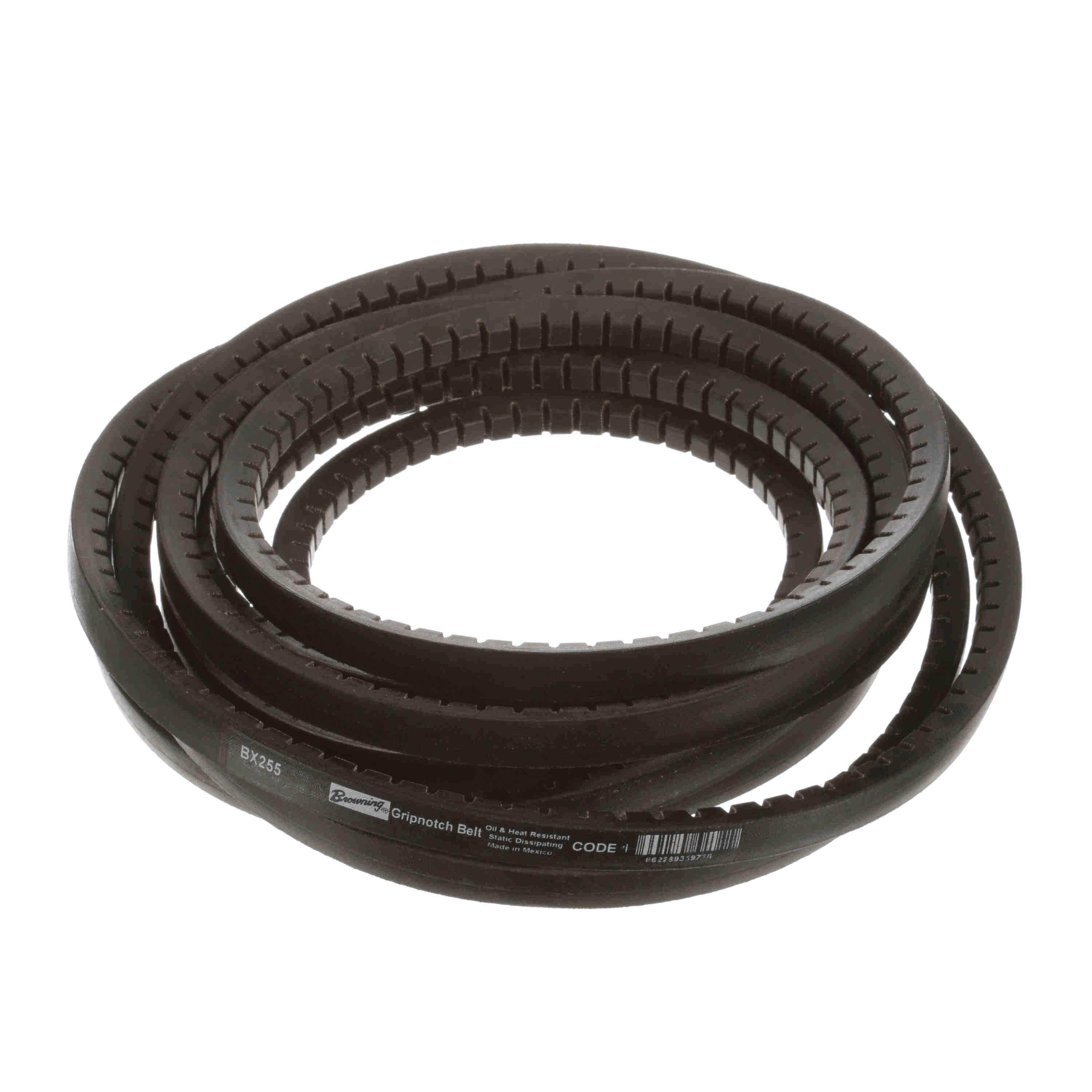

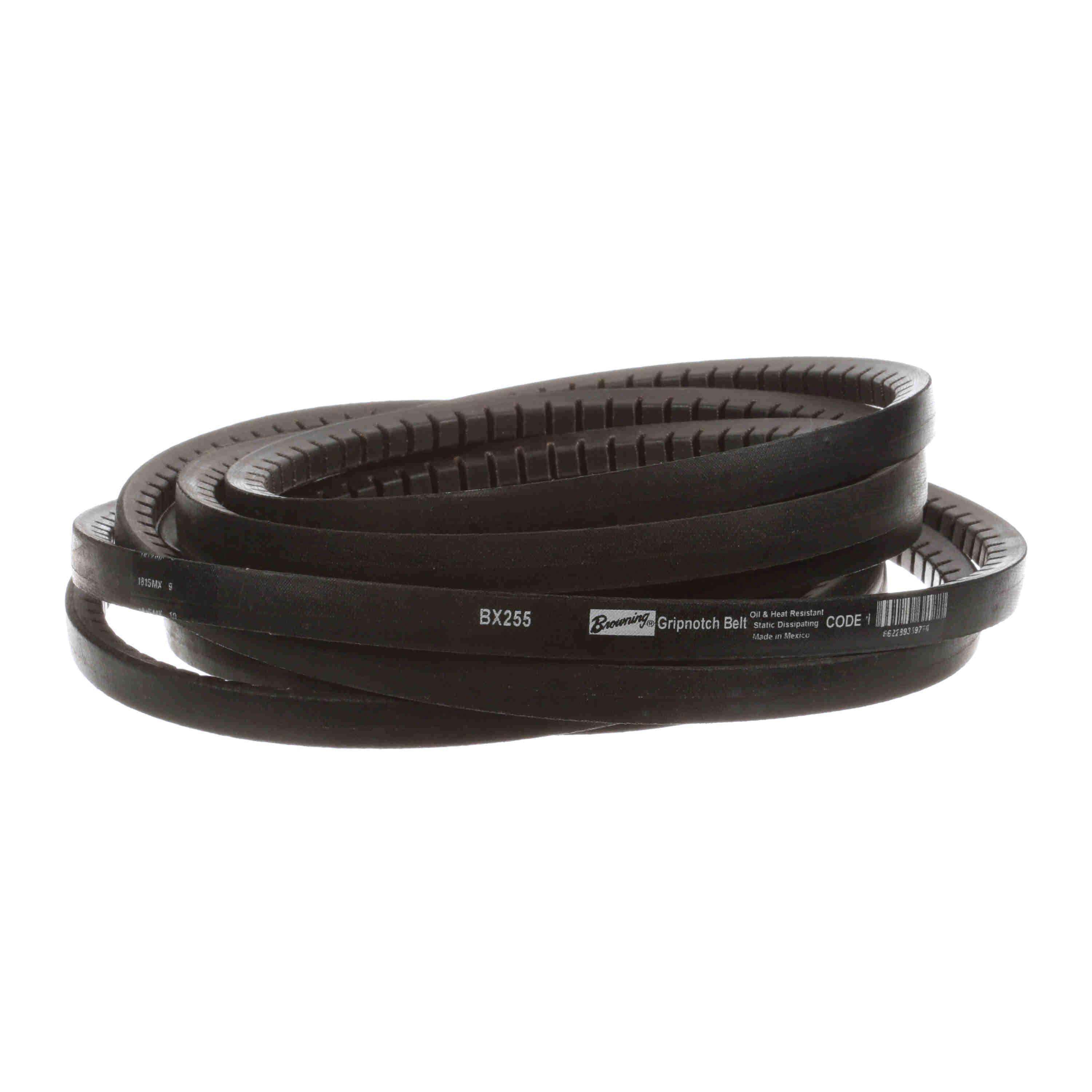

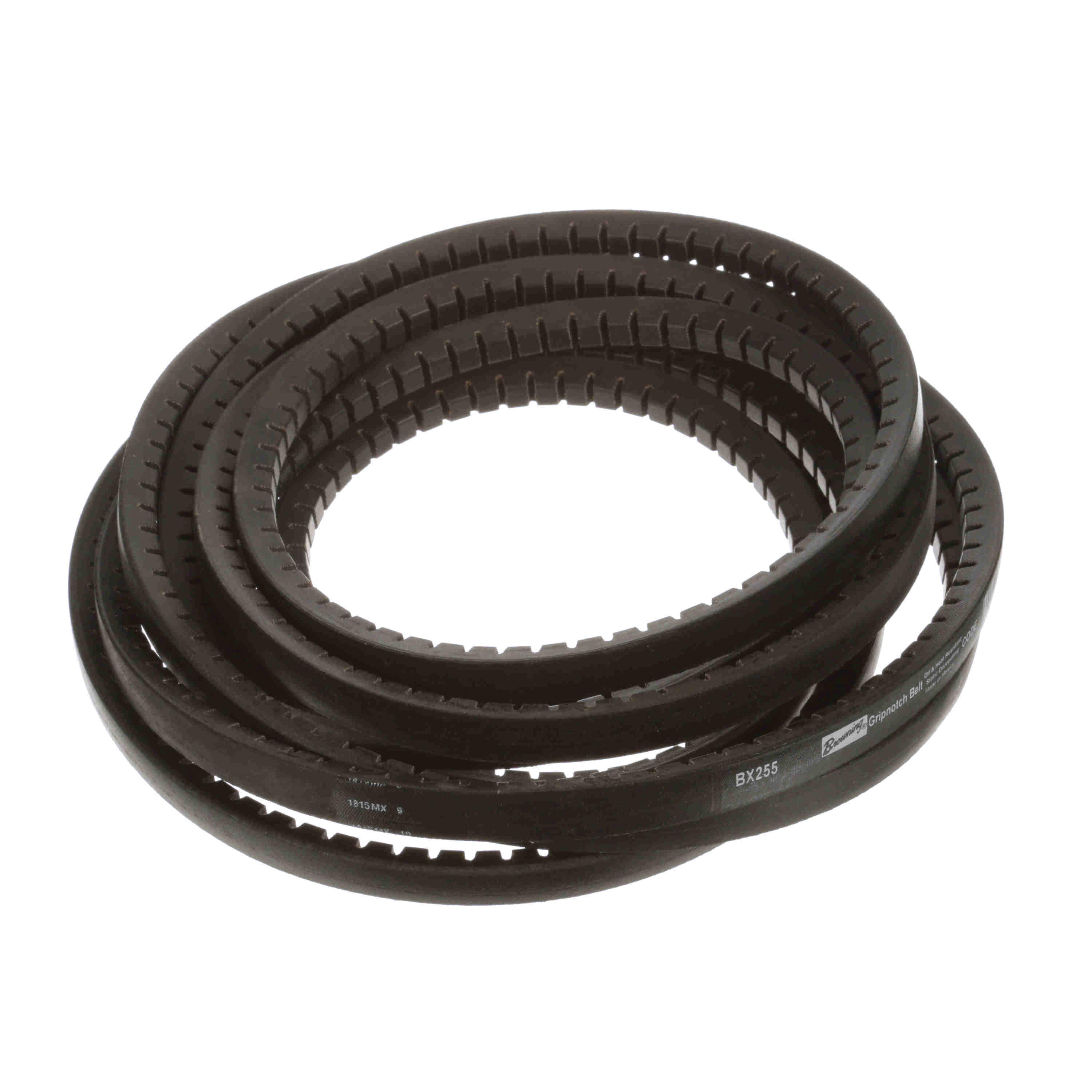

Browning® Notched V-Belt, Series Gripnotch Series, Section Size: BX, 256-1/2 in Length, Top Width: 0.65 in, 0.43 in Thickness, Pitch Length: 255.3 in, Number of Ribs: 1, Cogged, Reinforced Material: Nylon, EPDM, 250 deg F, Domestic/Import: Domestic, 0.98% Efficiency

Features

• EPDM material provides expanded operating temperature range to -60 to 250 deg F which helps ensure long life and reliable performance in the most demanding climates and heat sensitive applications
• Precision molded cogs provide more surface area for heat dissipation and increase belt flexibility, cooler running means longer life, Browning® notched belts assure longer life when replacing existing wrapped V-belt
• Browning® belts offer the Code 1 match belt system on all classical and 358 belts, allowing easy selection of just one match number for each belt size, this ensures tighter than RMA standards
• High tensile cord specially treated cords to provide strength and additional flex life while providing resistance to elongation for the belt
• Raw edge sidewalls improved gripping contract with pulley sidewalls, assures less vibration and smoother, quieter performance, notched belts provide higher horsepower than wrapped belts

Specifications
