Browning® 764060

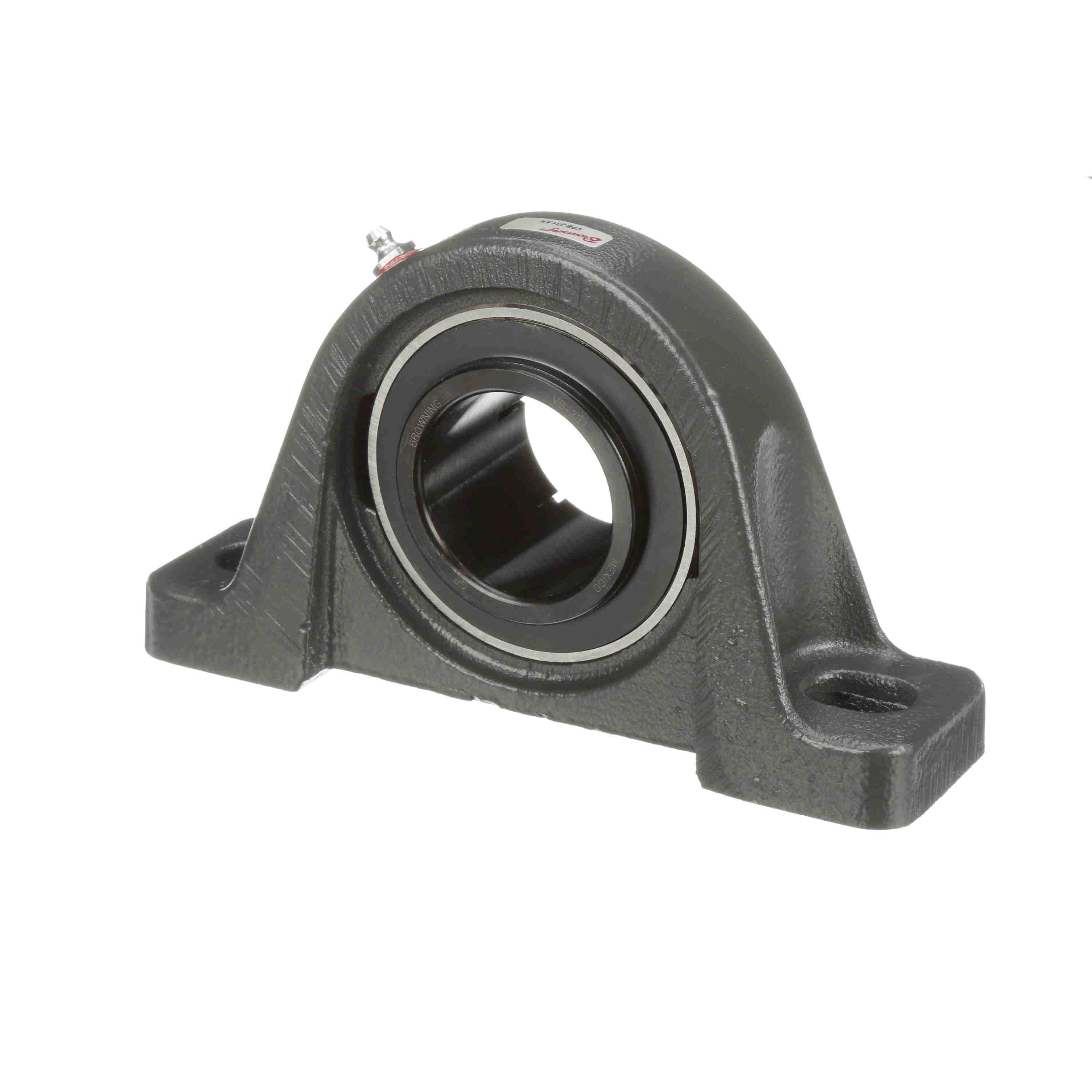

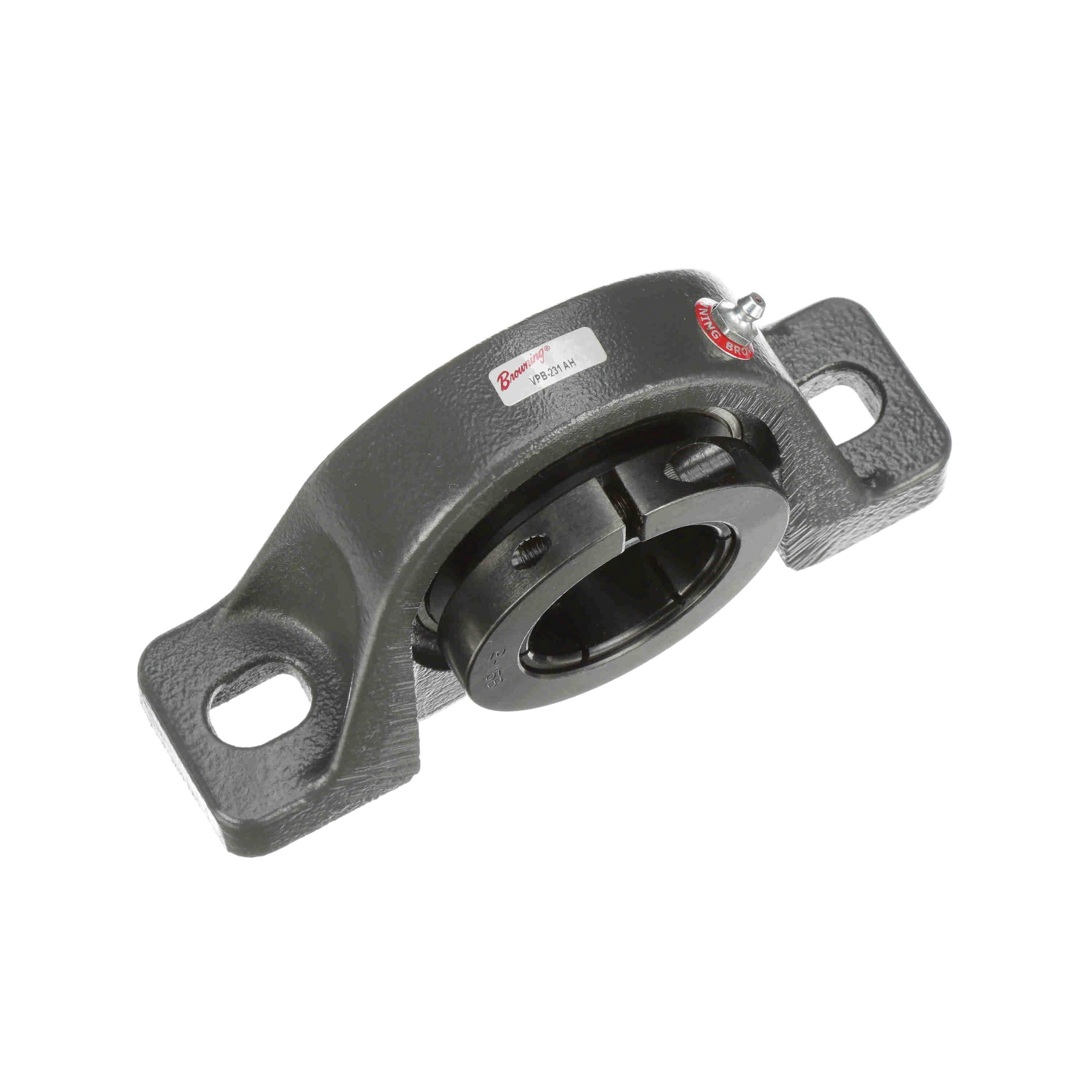

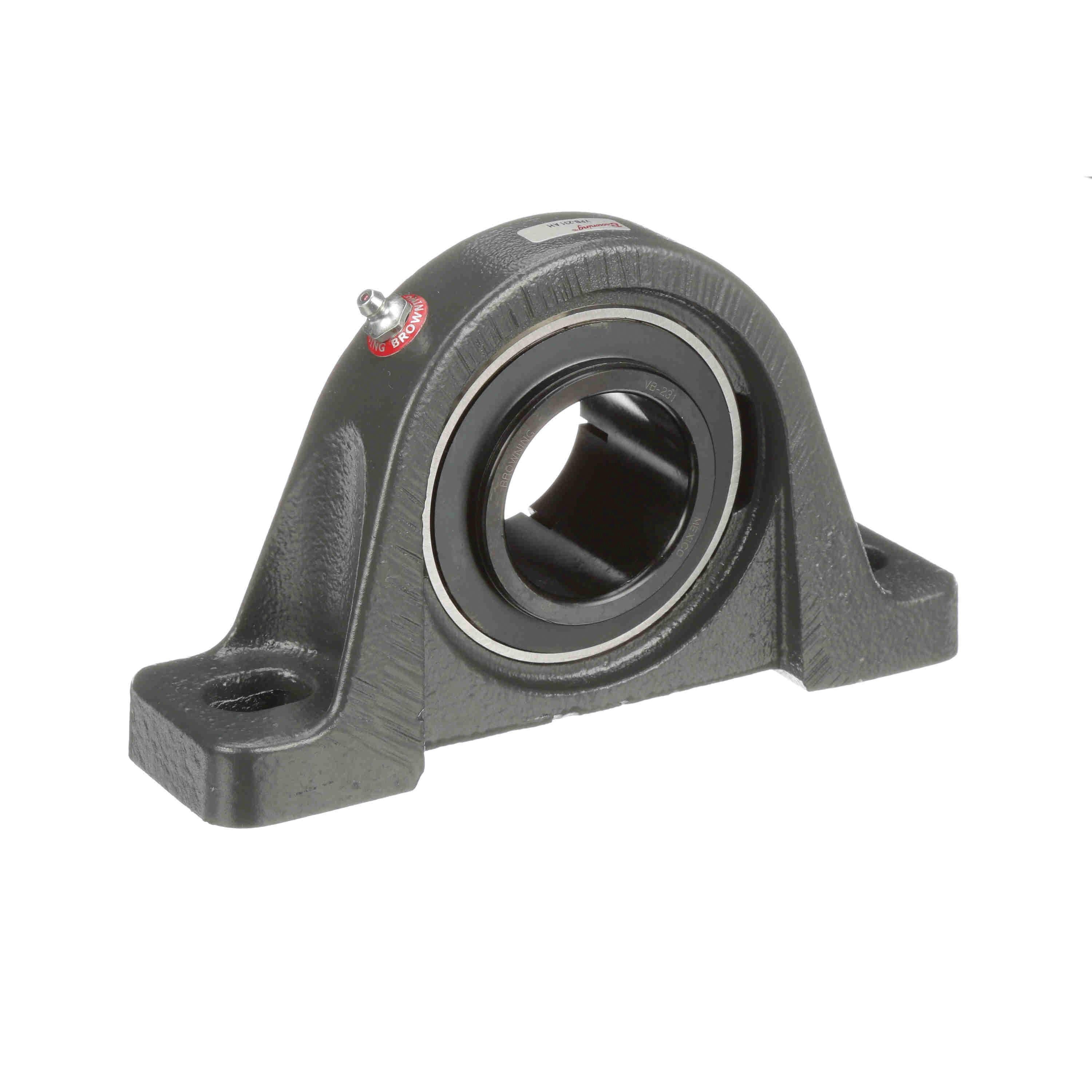

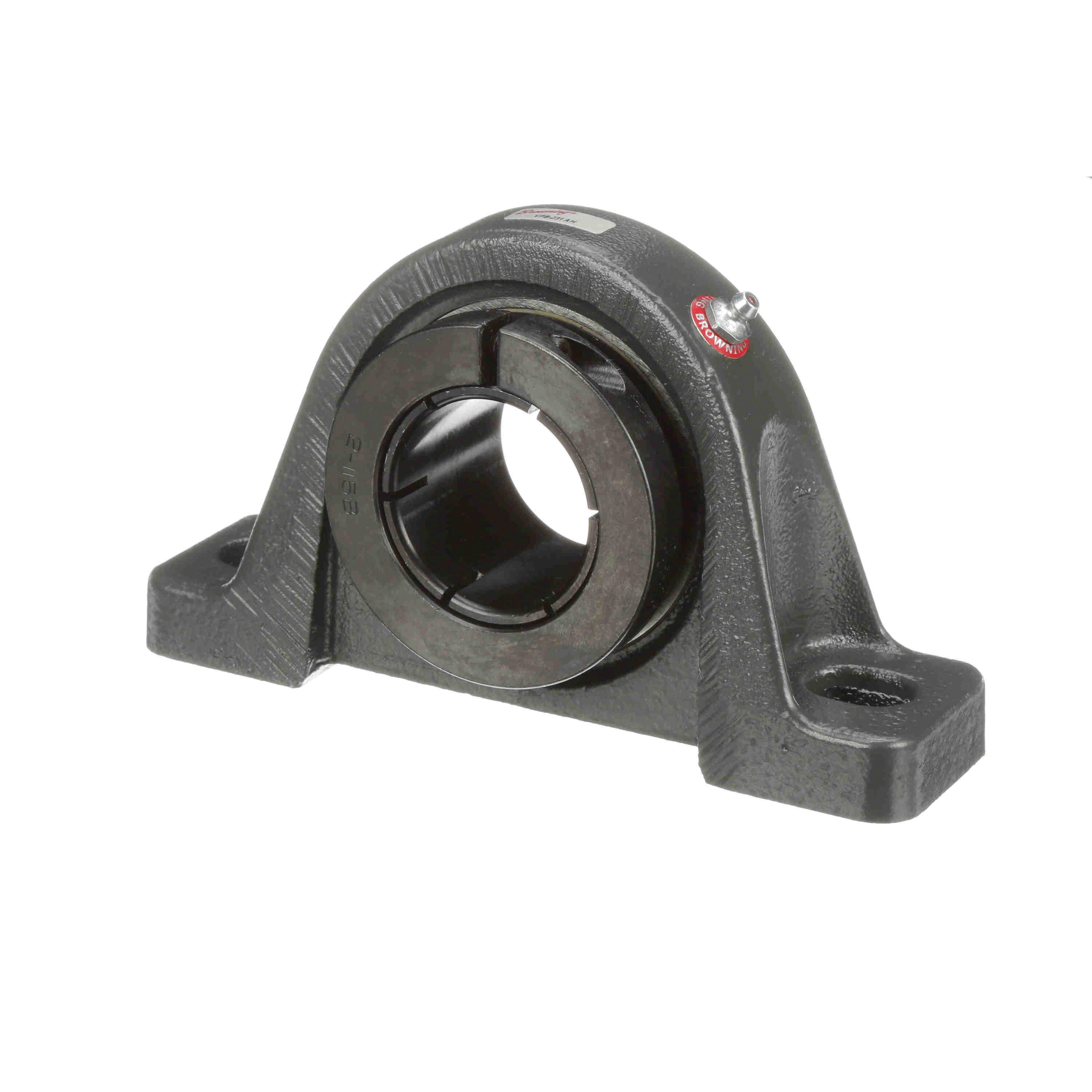

Browning® VPB 200 Series 764060 Pillow Block Bearing, 1-15/16 in Dia Bore, 5-7/8 to 6-1/2 in L Bolt Center-to-Center
Brand: Browning®
Item No: VPB-231AH
Sign In for Availability
Description
Browning® Pillow Block Bearing, VPB 200 Series, 1-15/16 in Dia Bore, 3-3/8 in Outside Diameter, 3/4 in, 2-3/16 in Base Width, 2-3/32 in Housing Width, 5-7/8 to 6-1/2 in Bolt Center-to-Center Length, 2-1/4 in Base to Bore Centerline, 5/8 in Bolt, 7889 lb Load, 3000 rpm Maximum Speed Rating, Rolling Element: Ball, Standard, Contact/Flinger Seal, Setscrew Locking Device, Cast Iron Bearing, Gray, Black Oxide, -20 to 200 deg F, 4-9/16 in H x 8 in W
Features
- Powder coat epoxy cast iron housing
- BOA concentric locking for near perfect concentricity
- Single lip contact seal and flinger
- Air handling noise check for quiet operation
- Looser than standard housing fit for ease of alignment on lightweight frames
Specifications
|
Base Width |
2-3/16 in |
|
Base to Bore Centerline |
2-1/4 in |
|
Bearing Material |
Cast Iron |
|
Bolt Center-to-Center Length |
5-7/8 to 6-1/2 in |
|
Bolt Size |
5/8 in |
|
Bore Diameter |
1-15/16 in |
|
Color |
Gray |
|
Dimensions |
4-9/16 in H x 8 in W |
|
Duty Type |
Standard |
|
Finish |
Black Oxide |
|
Flange Thickness |
3/4 in |
|
Housing Width |
2-3/32 in |
|
Load Capacity |
7889 lb |
|
Locking Device |
Setscrew |
|
Maximum Speed Rating |
3000 rpm |
|
Outside Diameter |
3-3/8 in |
|
Rolling Element |
Ball |
|
Seal Type |
Contact/Flinger |
|
Series |
VPB 200 Series |
|
Temperature Rating |
-20 to 200 deg F |
