Browning® 765478

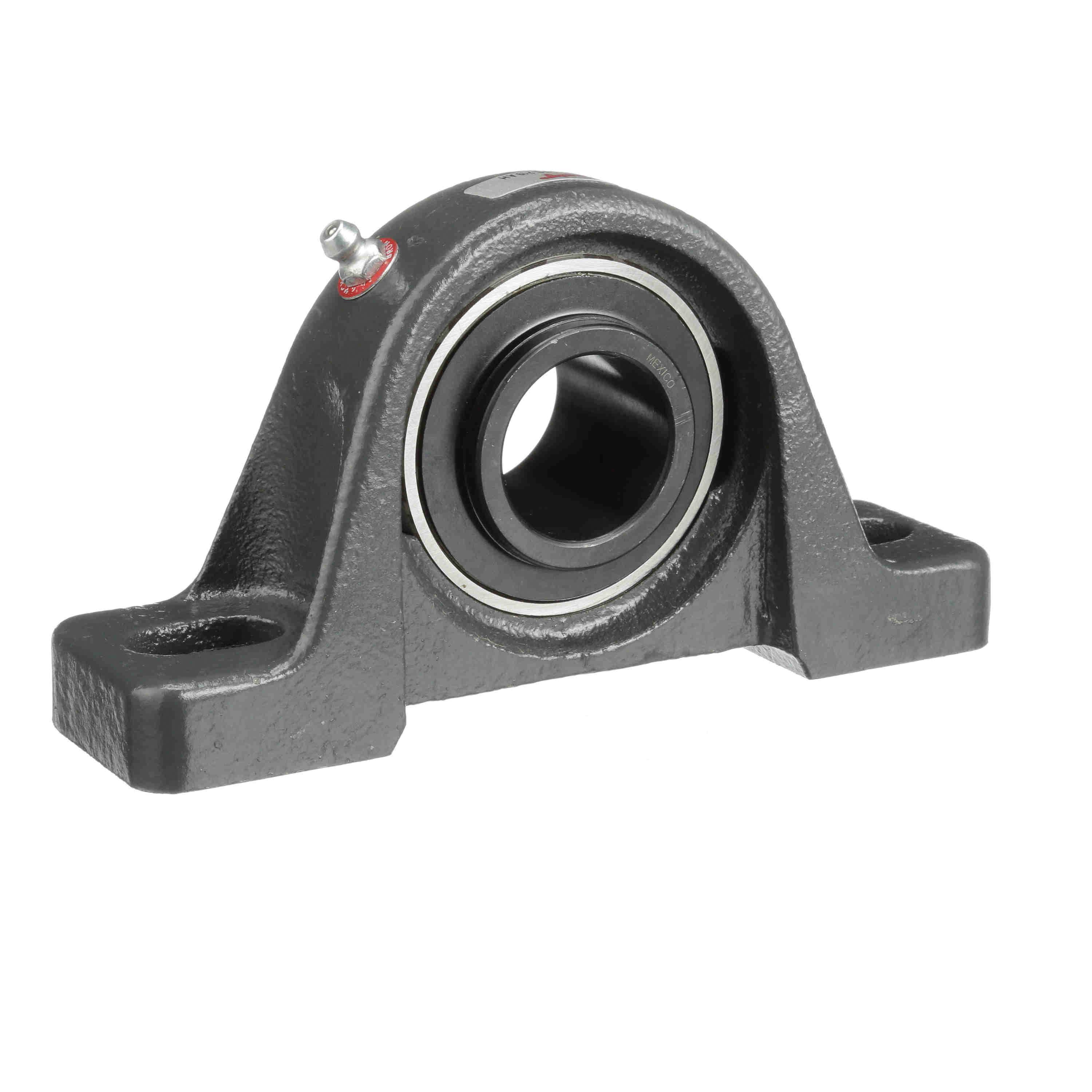

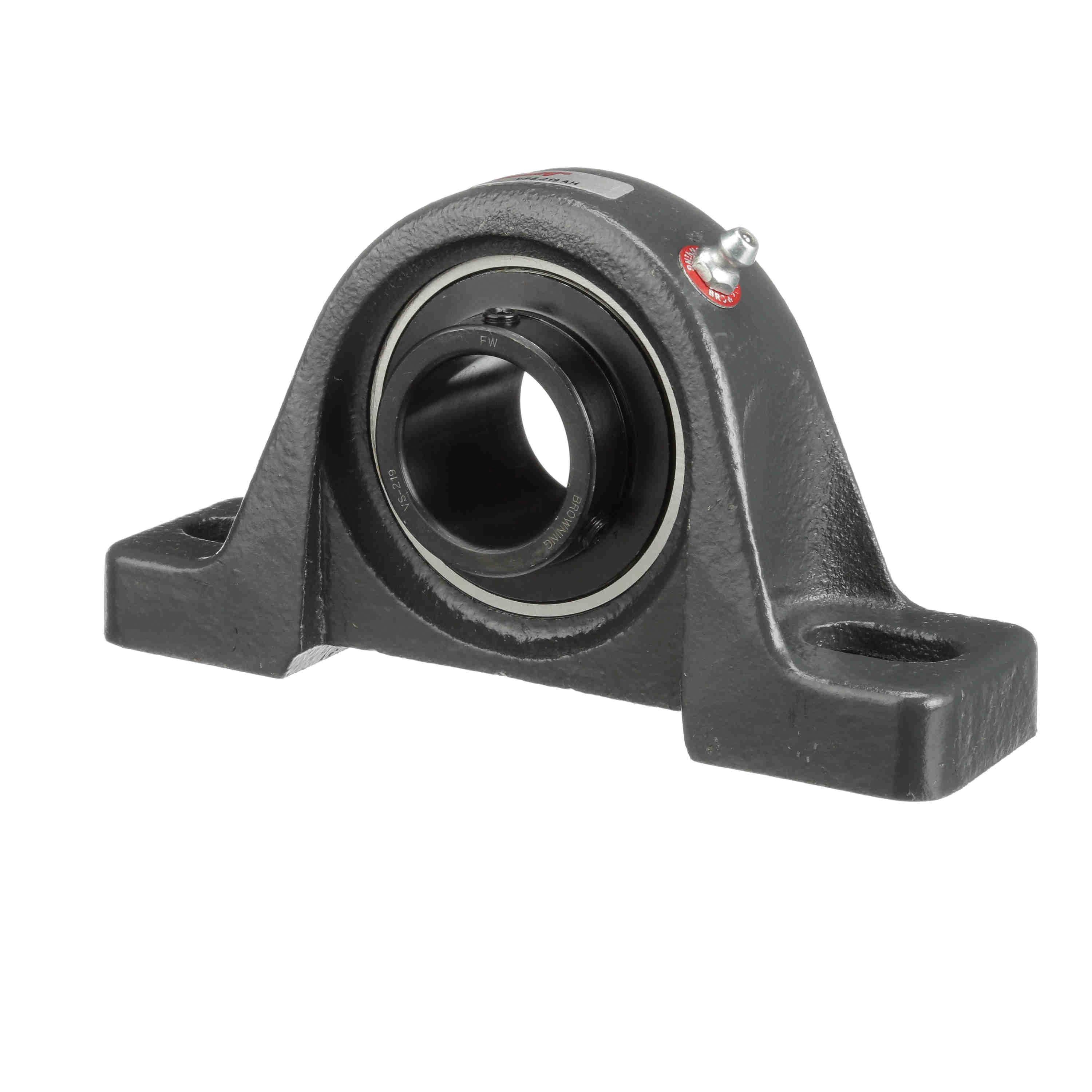

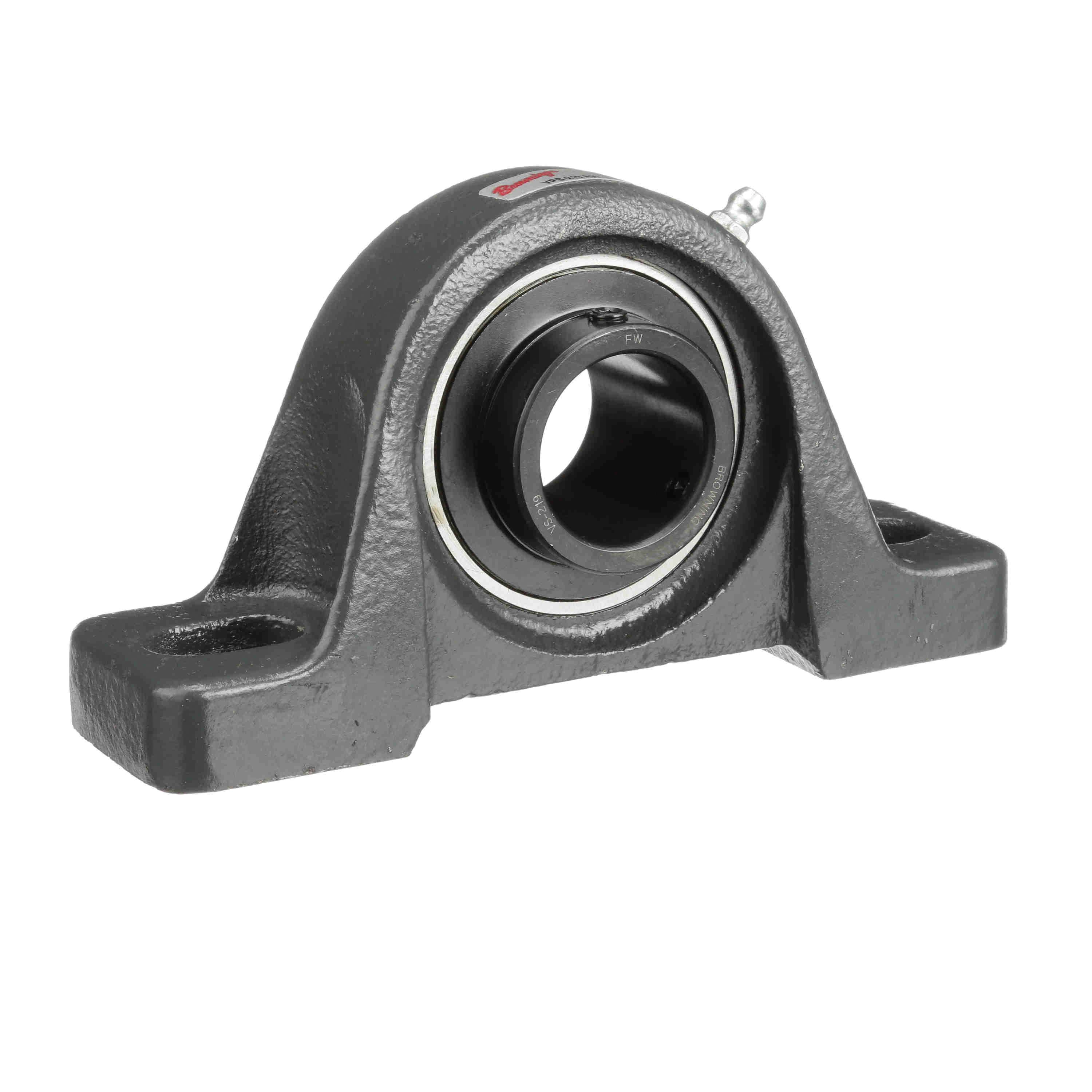

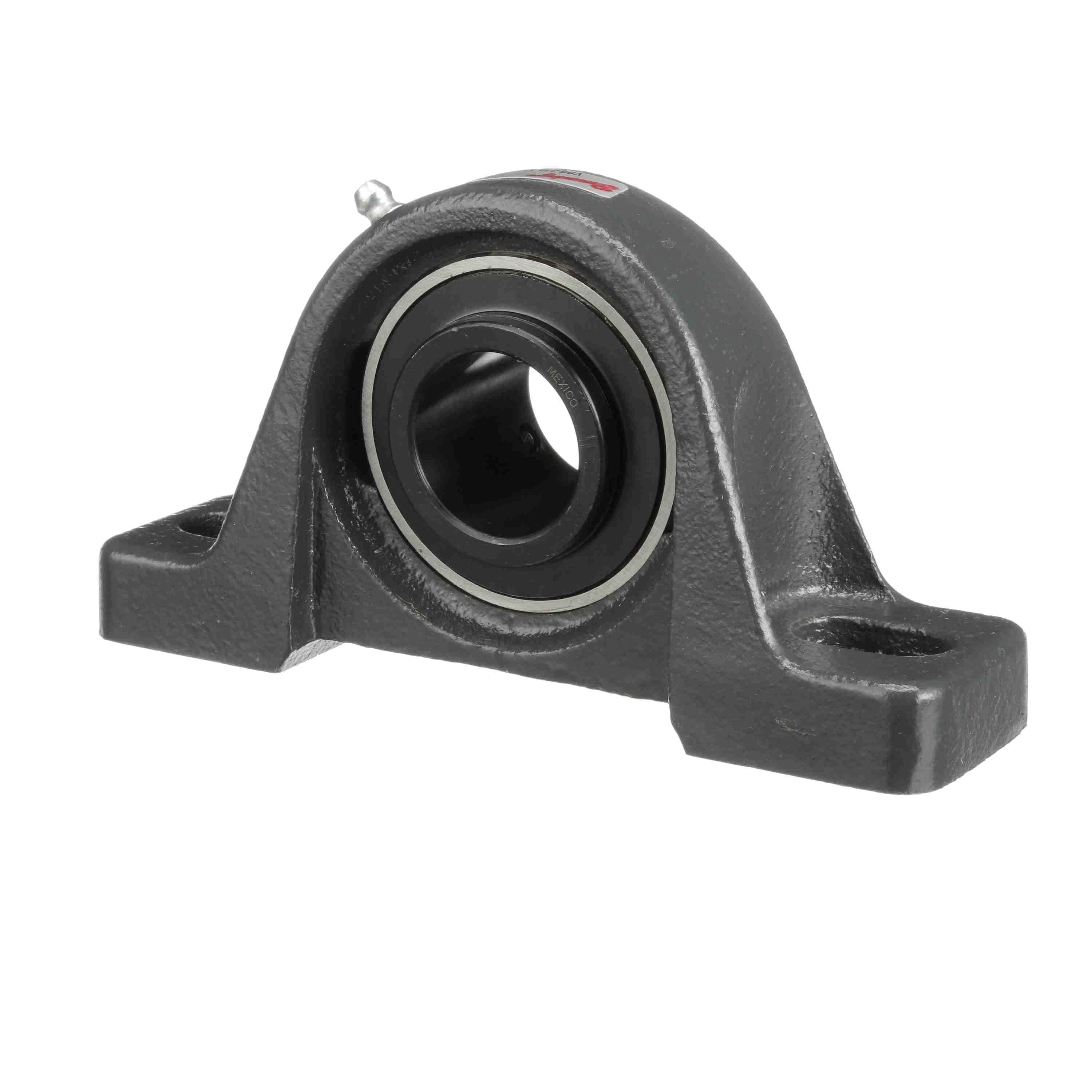

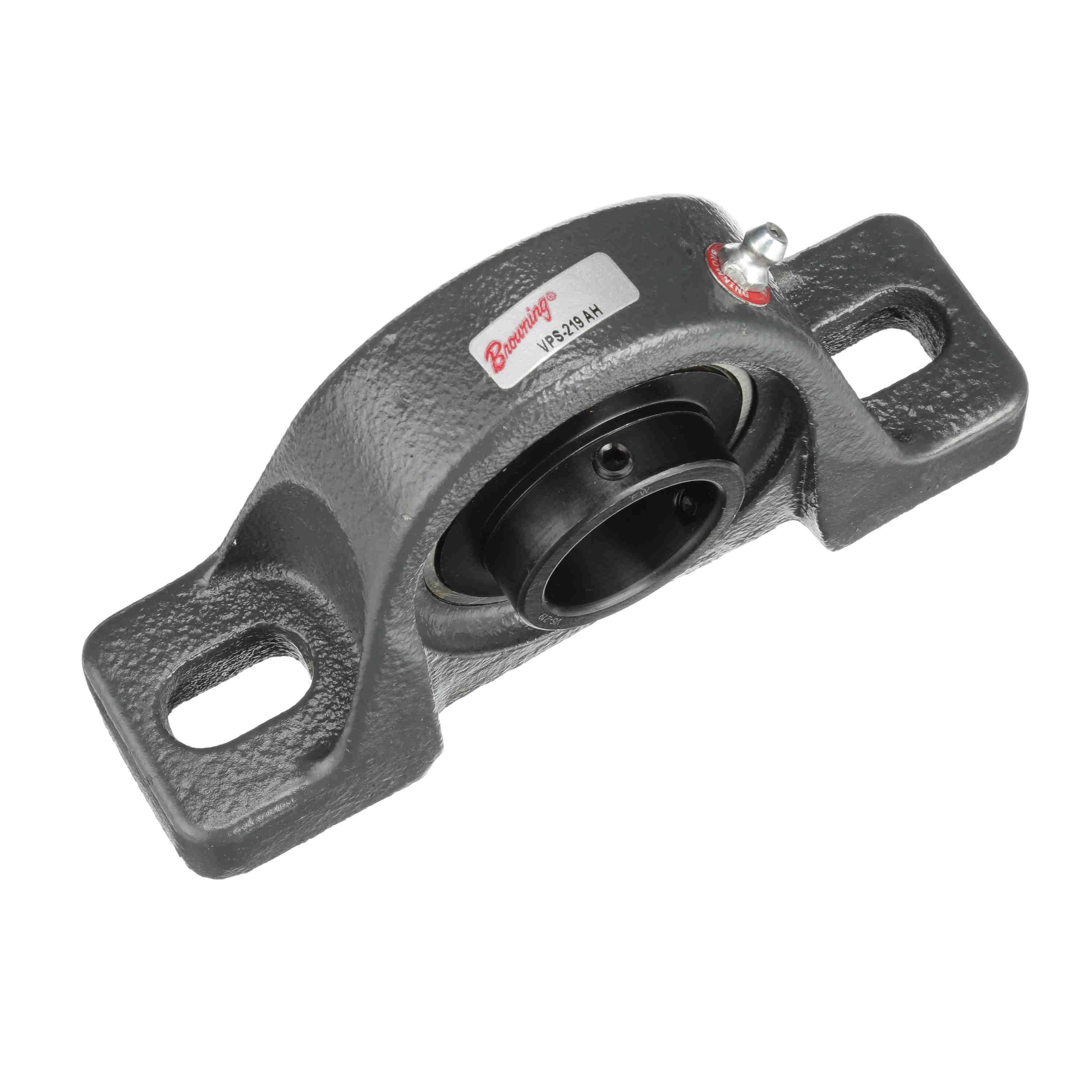

Browning® VPB 200 Series 765478 Pillow Block Bearing, 1-3/16 in Dia Bore, 4-3/16 to 5-1/16 in L Bolt Center-to-Center
Brand: Browning®
Item No: VPS-219AH
Sign In for Availability
Description
Browning® Pillow Block Bearing, VPB 200 Series, 1-3/16 in Dia Bore, 1-19/32 in Outside Diameter, 21/32 in, 1-9/16 in Base Width, 1-3/4 in Housing Width, 4-3/16 to 5-1/16 in Bolt Center-to-Center Length, 1-11/16 in Base to Bore Centerline, 1/2 in Bolt, 4381 lb Load, 4500 rpm Maximum Speed Rating, Rolling Element: Ball, Standard, Contact/Flinger Seal, Setscrew Locking Device, Cast Iron Bearing, Gray, Black Oxide, -20 to 200 deg F, 4-9/16 in H x 8 in W
Features
- Powder coat epoxy cast iron housing
- Zone hardened inner ring with 120 deg spacing setscrew lock with diamond faceted setscrews
- Single lip contact seal and flinger
- Air handling noise check for quiet operation
- Looser than standard housing fit for ease of alignment on lightweight frames
Specifications
|
Base Width |
1-9/16 in |
|
Base to Bore Centerline |
1-11/16 in |
|
Bearing Material |
Cast Iron |
|
Bolt Center-to-Center Length |
4-3/16 to 5-1/16 in |
|
Bolt Size |
1/2 in |
|
Bore Diameter |
1-3/16 in |
|
Color |
Gray |
|
Dimensions |
4-9/16 in H x 8 in W |
|
Duty Type |
Standard |
|
Finish |
Black Oxide |
|
Flange Thickness |
21/32 in |
|
Housing Width |
1-3/4 in |
|
Load Capacity |
4381 lb |
|
Locking Device |
Setscrew |
|
Maximum Speed Rating |
4500 rpm |
|
Outside Diameter |
1-19/32 in |
|
Rolling Element |
Ball |
|
Seal Type |
Contact/Flinger |
|
Series |
VPB 200 Series |
|
Temperature Rating |
-20 to 200 deg F |
