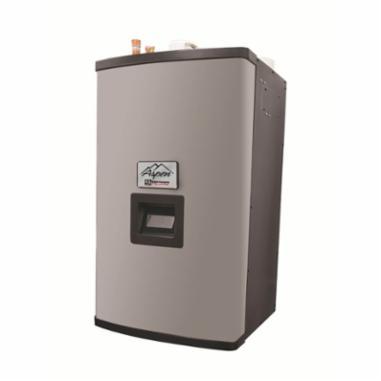

Burnham® ASPN-205A-6L00M

Description

On the outside of the Aspen high efficiency condensing boiler is sleek, smart, ergonomically optimized styling an elegant design so striking that it has actually been adopted by others in the industry. But that's where the comparison ends. On the inside you'll find a proven stainless steel fire tube heat exchanger and an advanced combustion system, designed to set new standards for reliability, efficiency, ease of installation and operation.

Burnham® High Efficiency Gas Boiler, Model: ASPN-205, 96 % AFUE Rating, 20.5 to 205 mbh, 5.1 gal Capacity, 30 psi, Natural Gas Fuel, Direct Vent, Chimney/Breeching/Vent Size: 3 in, 189 mbh DOE Heating Capacity, 164 mbh Net BTU Rating, Stainless Steel, Silver Metallic, 180 deg F, 33-5/16 in H x 20 in W, Domestic/Import: Domestic, Additional Information: 1/2 in Gas, 1-1/4 in Return/Inlet Water, 1 in Supply/Outlet Water

Features

• Up to 96% AFUE with 10:1 turndown high efficiency and low emissions
• Field proven, stainless steel fire tube heat exchanger
• Advanced Sage2.3™ boiler control provides out of the box high performance and easy set-up
• Easily connects to optional sage zone controls for additional energy savings, system optimization and short cycle prevention
• High altitude zero or minimal derating reduces the costs of oversizing, field adjustable
• Easy access side service panel
• Versatile top and bottom connections for supply and return (heating only models)
• Universal vent connection for CPVC/PVC, polypropylene and stainless steel flex
• Split voltage junction box, fused easy connect terminals
• Outdoor reset and sensor (wired)
• Piped and wired for low water cut-off installation
