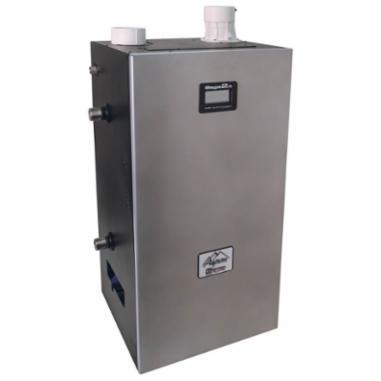

Burnham® ASPN-399A-6L00

Description

The Aspen line now includes a 320 and 399 mbh model so you can efficiently heat larger applications. Impressively, this boiler can be wall or floor mounted due to a pre-installed wall bracket and adjustable feet. Also unique to this boiler is the ability to swap the touch screen display and boiler logo badge for optimal ergonomics.

Burnham® Aspen High-Efficiency Gas Commercial Boiler, Model: ASPN-399, AFUE Rating: 95 %, 39.9 to 399 mbh BTU, 6.7 gal Capacity, 30 psi Pressure, Natural Gas Fuel, Vent Type: Direct, Chimney/Breeching/Vent Size: 4 in, Net BTU Rating: 330 mbh, 180 deg F, 45.28 in H, Domestic/Import: Domestic, 1-1/2 in Supply/Outlet, 1-1/2 in Return/Inlet, 3/4 in Gas

Features

• Up to 95% thermal efficiency with 10:1 turndown
• High efficiency and low emissions
• Field proven, stainless steel fire tube heat exchanger with low pressure drop
• Advanced Sage2.3™ boiler control provides out of the box high performance and easy set-up
• Touch screen display simplifies installation, operation and diagnostics
• Easily connects to optional sage zone controls for additional energy savings, system optimization and short cycle prevention
• Configured for lead/lag operation
• High altitude zero or minimal derating reduces the costs of oversizing, field adjustable
• Low NOx
