Century® 614

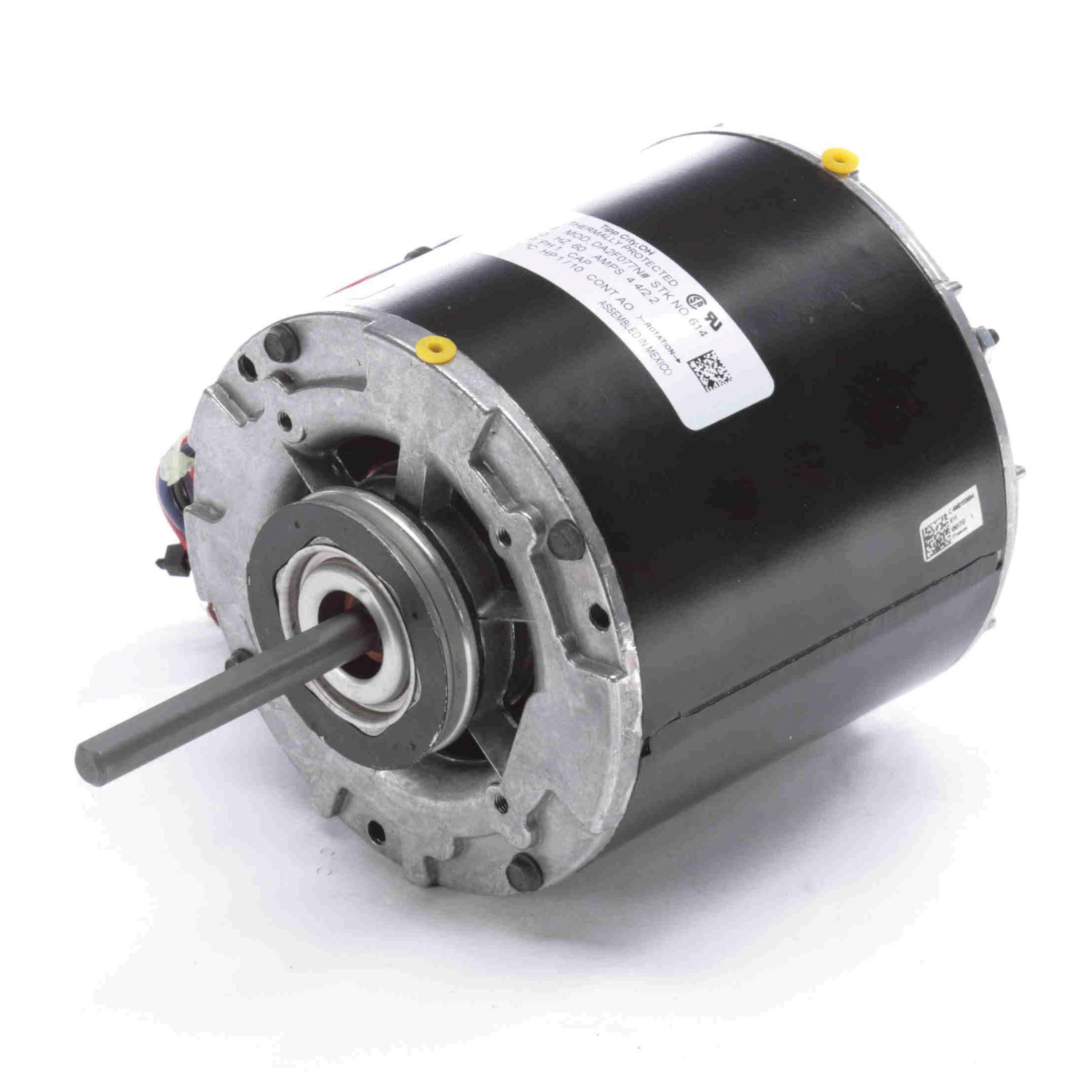

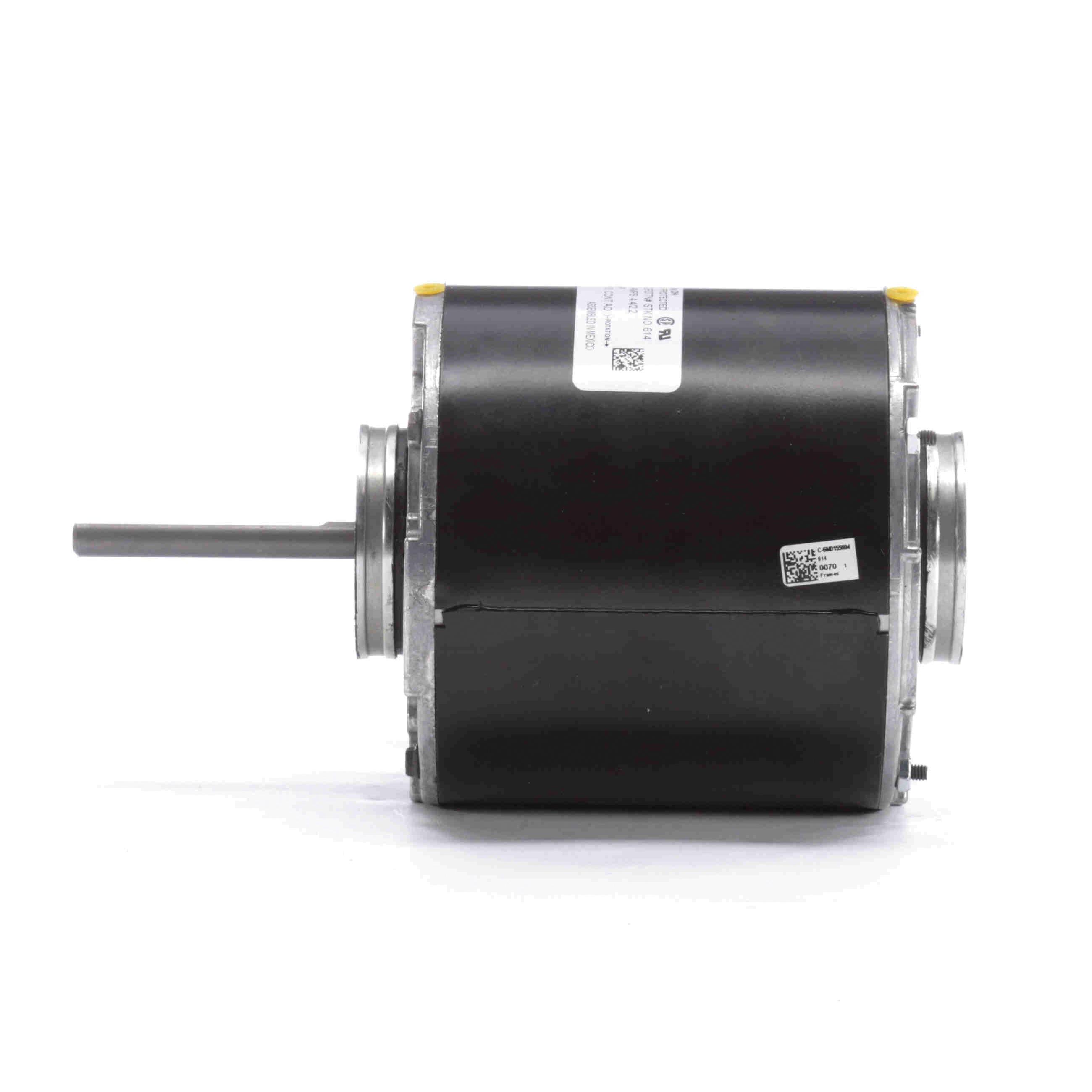

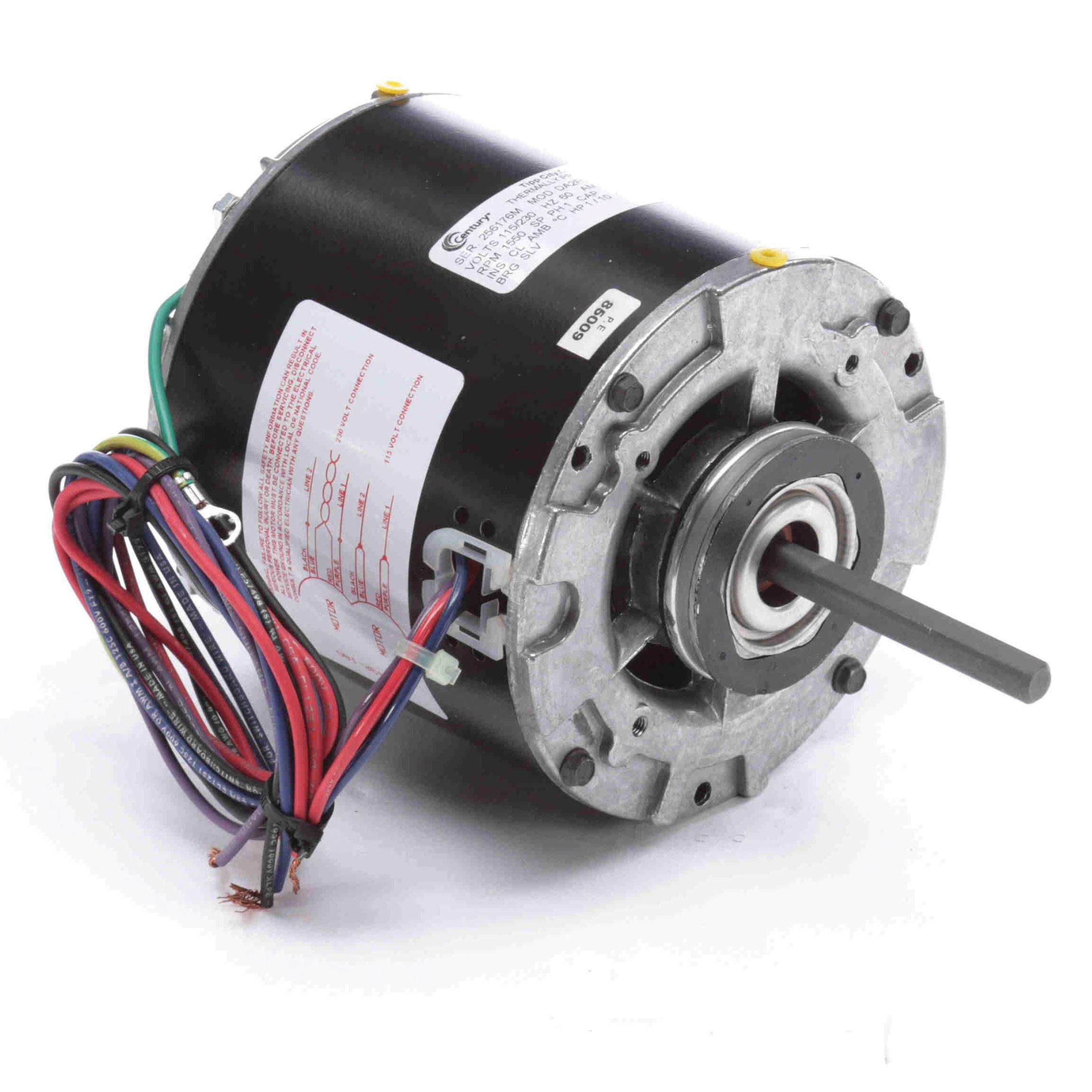

Century® 614 Refrigeration Motor, 1/10 hp, 115/230 V, 60 Hz, 1 ph-Phase, 42 Frame, 1550 rpm Speed
Brand: Century®
Item No: 614
Sign In for Availability
Description
Century® Refrigeration Motor, 1/10 hp HP Rating, 115/230 V, 4.4 A, 60 Hz, 1 ph, 1550 rpm Speed Rating, 1 Speed, Open Air Over, 42 Frame, 3/8 in Dia x 3-1/4 in L Shaft, Service Factor: 1, Sleeve Bearing, Resilient Ring Mount, 40 deg C, Insulation Class: Class A, Steel Housing, Additional Information: Clockwise Lead End Rotation, 8.47 in L Motor, 4-Pole, Shaded Pole Electrical-Type
Features
- Tapped holes for shaft end mounting, resilient ring mounting
Specifications
|
Additional Information |
Clockwise Lead End Rotation, 8.47 in L Motor, 4-Pole, Shaded Pole Electrical-Type |
|
Amperage Rating |
4.4 A |
|
Bearing Type |
Sleeve |
|
Enclosure Type |
Open Air Over |
|
Frame |
42 |
|
Frequency Rating |
60 Hz |
|
HP Rating |
1/10 hp |
|
Housing Material |
Steel |
|
Insulation Class |
Class A |
|
Mounting Type |
Resilient Ring |
|
Number of Speeds |
1 |
|
Phase |
1 ph |
|
Service Factor |
1 |
|
Shaft Size |
3/8 in Dia x 3-1/4 in L |
|
Speed Rating |
1550 rpm |
|
Temperature Rating |
40 deg C |
|
Voltage Rating |
115/230 V |
