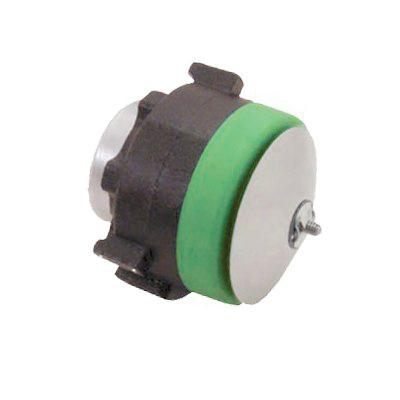

Century® 9207F2
Century® 9207F2 Unit Bearing Motor, 115 VAC, 0.2/0.3 A, 1550 rpm Speed, 6 W, 9 W, 12 W, 1 ph -Phase, 50 Hz, 60 Hz
Brand: Century®
Item No: 9207F2
Sign In for Availability
Description
Century® Unit Bearing Motor, 115 VAC, 0.2/0.3 A, 1550 rpm, 6 W, 9 W, 12 W, 1 ph Phase, 50 Hz, 60 Hz, Totally Enclosed Air Over Motor Enclosure, 1/4-20 Shaft, Clockwise Shaft End Rotation, 3 Speed, 65 % Efficiency, Sleeve Bearing, Hole Mounting, Continuous, B Insulation Class, 1 Service Factor, Cast Iron, 40 deg C, 3.46 in Dia x 4.145 in L
Features
- 13 in lead length
- Lyall plug
- Wide temperature range oil for use in evaporators and condensers
- Tapped and drilled mounting holes
- Five rear mounting holes
Specifications
|
Amperage Rating |
0.2/0.3 A |
|
Bearing Type |
Sleeve |
|
Dimensions |
3.46 in Dia x 4.145 in L |
|
Duty Type |
Continuous |
|
Efficiency |
65 % |
|
Frequency Rating |
50 Hz, 60 Hz |
|
Insulation Class |
B |
|
Material |
Cast Iron |
|
Motor Enclosure Type |
Totally Enclosed Air Over |
|
Mounting Type |
Hole |
|
Number of Speeds |
3 |
|
Phase |
1 ph |
|
Power Rating |
6 W, 9 W, 12 W |
|
Rotation Type |
Clockwise Shaft End |
|
Service Factor |
1 |
|
Shaft Size |
1/4-20 |
|
Speed Rating |
1550 rpm |
|
Temperature Rating |
40 deg C |
|
Voltage Rating |
115 VAC |
