Century® B180

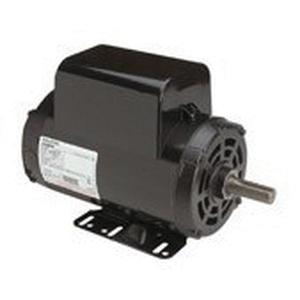

Century® B180 Electric Pressure Washer Motor, 208 to 230 VAC, 22 A, 5 hp, 3450 rpm Speed, 3.7 kW, 1 ph -Phase, 60 Hz
Brand: Century®
Item No: B180
Sign In for Availability
Description
Century® Electric Pressure Washer Motor, 208 to 230 VAC, 22 A, 5 hp, 3450 rpm, 3.7 kW, 1 ph Phase, 60 Hz, Open Drip-Proof Motor Enclosure, 56Y Frame, 0.875 in Dia Shaft, Clockwise Rotation, 1 Speed, Keyed Shaft Type, Ball Bearing, Rigid Base Mounting, Continuous, B Insulation Class, 2 Poles, 1.15 Service Factor, Across the Line Starting Method, Rolled Steel, 40 deg C, 14.56 in L
Features
- Thermal protection
Specifications
|
Amperage Rating |
22 A |
|
Bearing Type |
Ball |
|
Dimensions |
14.56 in L |
|
Duty Type |
Continuous |
|
Frame Size |
56Y |
|
Frequency Rating |
60 Hz |
|
HP Rating |
5 hp |
|
Insulation Class |
B |
|
Material |
Rolled Steel |
|
Motor Enclosure Type |
Open Drip-Proof |
|
Mounting Type |
Rigid Base |
|
Number of Poles |
2 |
|
Number of Speeds |
1 |
|
Phase |
1 ph |
|
Power Rating |
3.7 kW |
|
Rotation Type |
Clockwise |
|
Service Factor |
1.15 |
|
Shaft Size |
0.875 in Dia |
|
Shaft Type |
Keyed |
|
Speed Rating |
3450 rpm |
|
Starting Method |
Across the Line |
|
Temperature Rating |
40 deg C |
|
Voltage Rating |
208 to 230 VAC |
