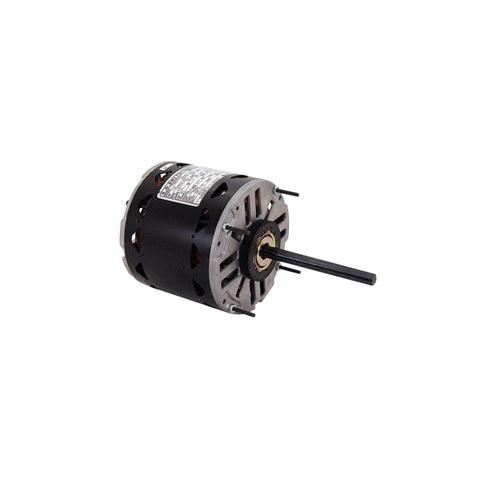

Century® FDL6001
Century® FDL6001 Fan and Blower Motor, 115 VAC, 7 A, 1/2 hp, 1075 rpm Speed, 0.37 kW, 1 ph -Phase, 60 Hz, 48Y Frame
Brand: Century®
Item No: FDL6001
Sign In for Availability
Description
Century® Fan and Blower Motor, 115 VAC, 7 A, 1/2 hp, 1075 rpm, 0.37 kW, 1 ph Phase, 60 Hz, Open Enclosed Motor Enclosure, 48Y Frame, 1/2 in Dia x 5 in L Shaft, Reversible Rotation, 4 Speed, Flat Shaft Type, 64.3 % Efficiency, Ball Bearing, Resilient Ring, Extended Stud Mounting, Direct Drive, Continuous Air Over, B Insulation Class, 6 Poles, 1 Service Factor, Across the Line Starting Method, Rolled Steel, 40 deg C, 5.625 in Dia x 10.36 in L
Features
- Energy-efficient
- Different capacitor/speed combinations
- Designed for 370 VAC capacitor
- Resilient rings on blower motors
- Extended thru-bolts
- Automatic thermal protection
- Less inventory required
- Versatile, time saver
- Easy installation
- Capacitor 10 uF at 370 VAC
Specifications
|
Amperage Rating |
7 A |
|
Bearing Type |
Ball |
|
Dimensions |
5.625 in Dia x 10.36 in L |
|
Drive Type |
Direct |
|
Duty Type |
Continuous Air Over |
|
Efficiency |
64.3 % |
|
Frame Size |
48Y |
|
Frequency Rating |
60 Hz |
|
HP Rating |
1/2 hp |
|
Insulation Class |
B |
|
Material |
Rolled Steel |
|
Motor Enclosure Type |
Open Enclosed |
|
Mounting Type |
Resilient Ring, Extended Stud |
|
Number of Poles |
6 |
|
Number of Speeds |
4 |
|
Phase |
1 ph |
|
Power Rating |
0.37 kW |
|
Rotation Type |
Reversible |
|
Service Factor |
1 |
|
Shaft Size |
1/2 in Dia x 5 in L |
|
Shaft Type |
Flat |
|
Speed Rating |
1075 rpm |
|
Starting Method |
Across the Line |
|
Temperature Rating |
40 deg C |
|
Voltage Rating |
115 VAC |
