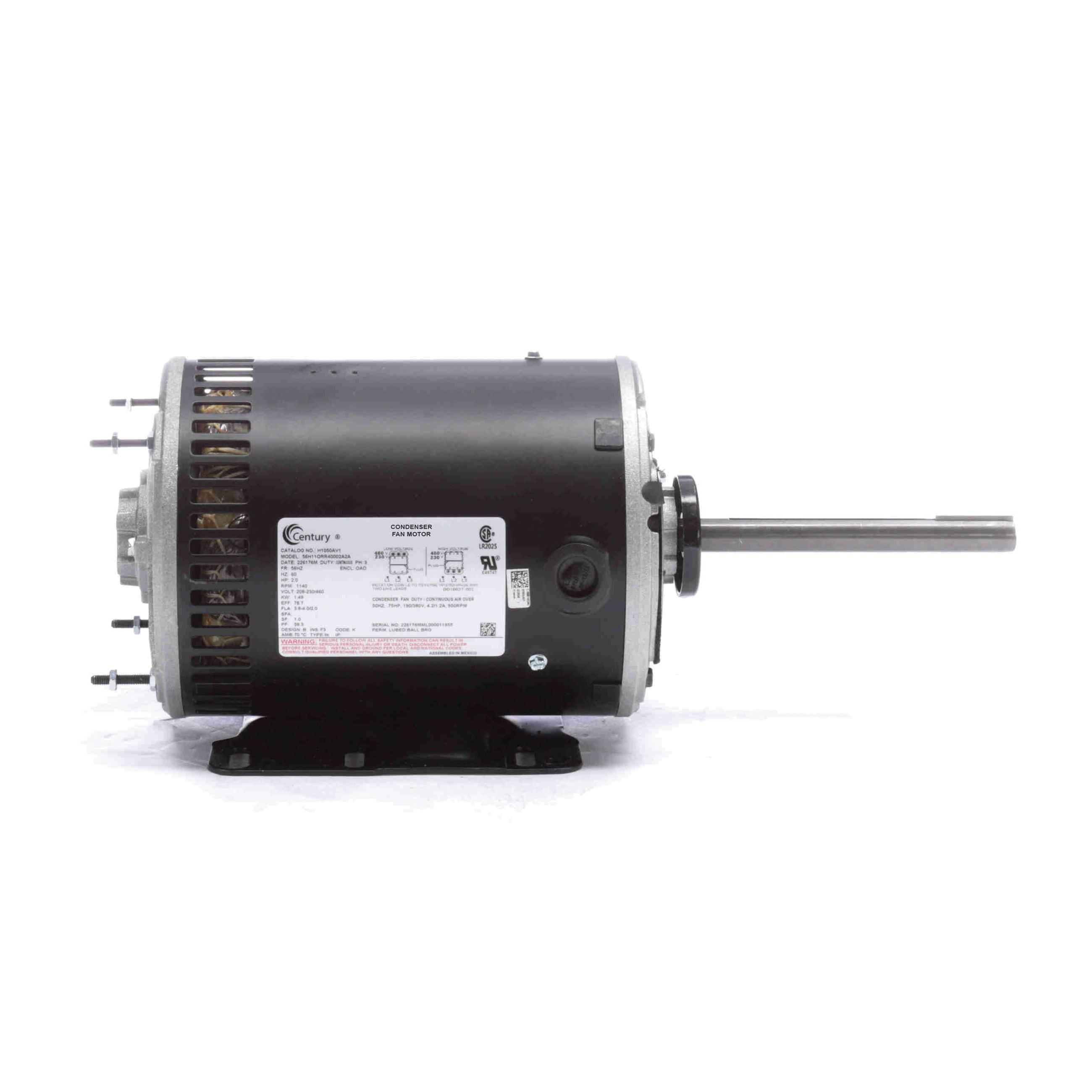

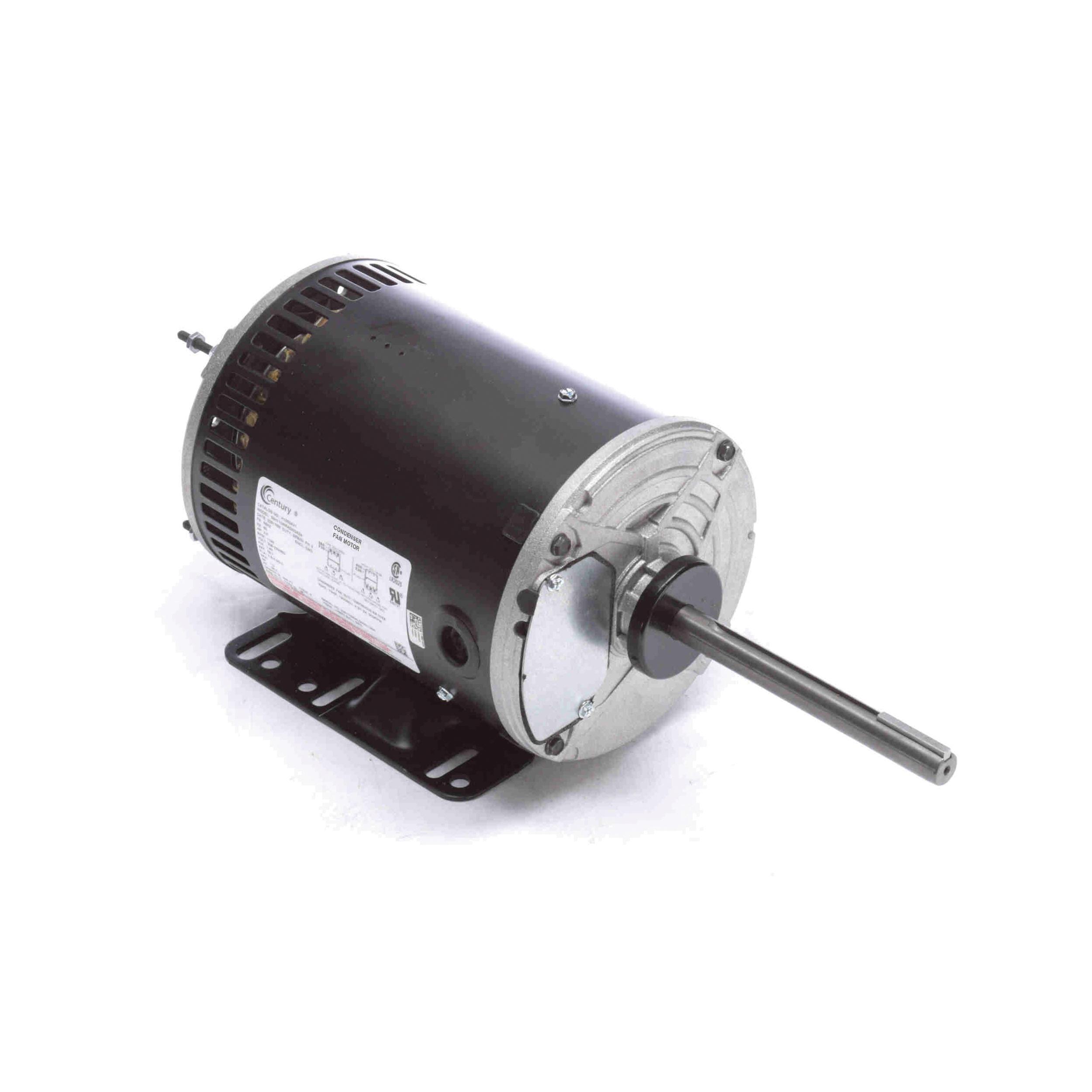

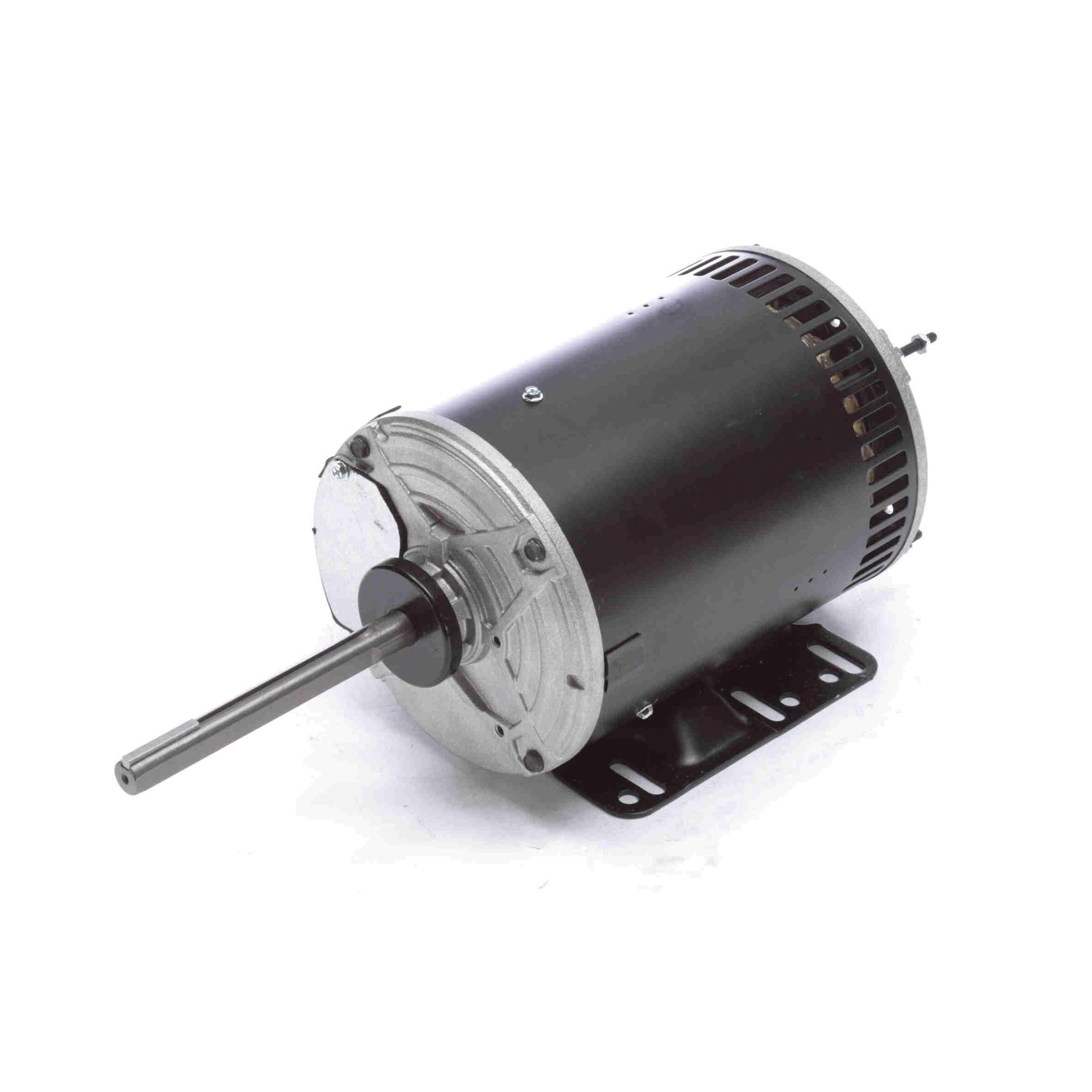

Century® H1050AV1
Century® JUGGERNAUT® H1050AV1 Condenser Fan Motor, 1 hp, 230/460 V, 60 Hz, 3 ph -Phase, 56HZ Frame, 1140 rpm Speed
Brand: Century®
Item No: H1050AV1
Sign In for Availability
Description
Century® JUGGERNAUT® Condenser Fan Motor, 1 hp, 230/460 V, 4/2 A, 60 Hz, 3 ph, 1140 rpm Speed, 1 Speed, Open Air Over Enclosure, 56HZ Frame, 0.625 in Dia x 6 in L Shaft, 1, Ball, Rigid Base Mount, 70 deg C Ambient, Class F, 16.35 in OAH, 0.75 kW Power, 6 Pole, Reversible Rotation
Features
- Automatic reset thermal protector prevents overheating
- Patented MAXGuard® insulation system offers superior protection for use with a variable frequency drive
- Permanently lubricated, double-sealed bearings extend the lifetime of the motor
- Ambient temperature up to 70 deg C allows for consistent operation in a range of environments and applications
- Vertical/horizontal mounting for proper placement of the fan within airflow
- Operational at 208 to 230/460 V at 60 Hz
Specifications
|
Additional Information |
0.75 kW Power, 6 Pole, Reversible Rotation |
|
Amperage Rating |
4/2 A |
|
Bearing Type |
Ball |
|
Enclosure Type |
Open Air Over |
|
Frame |
56HZ |
|
Frequency Rating |
60 Hz |
|
HP Rating |
1 hp |
|
Insulation Class |
Class F |
|
Mounting Type |
Rigid Base |
|
Number of Speeds |
1 |
|
Overall Height |
16.35 in |
|
Phase |
3 ph |
|
Service Factor |
1 |
|
Shaft Size |
0.625 in Dia x 6 in L |
|
Speed Rating |
1140 rpm |
|
Temperature Rating |
70 deg C Ambient |
|
Voltage Rating |
230/460 V |
