Century® H1054AV1

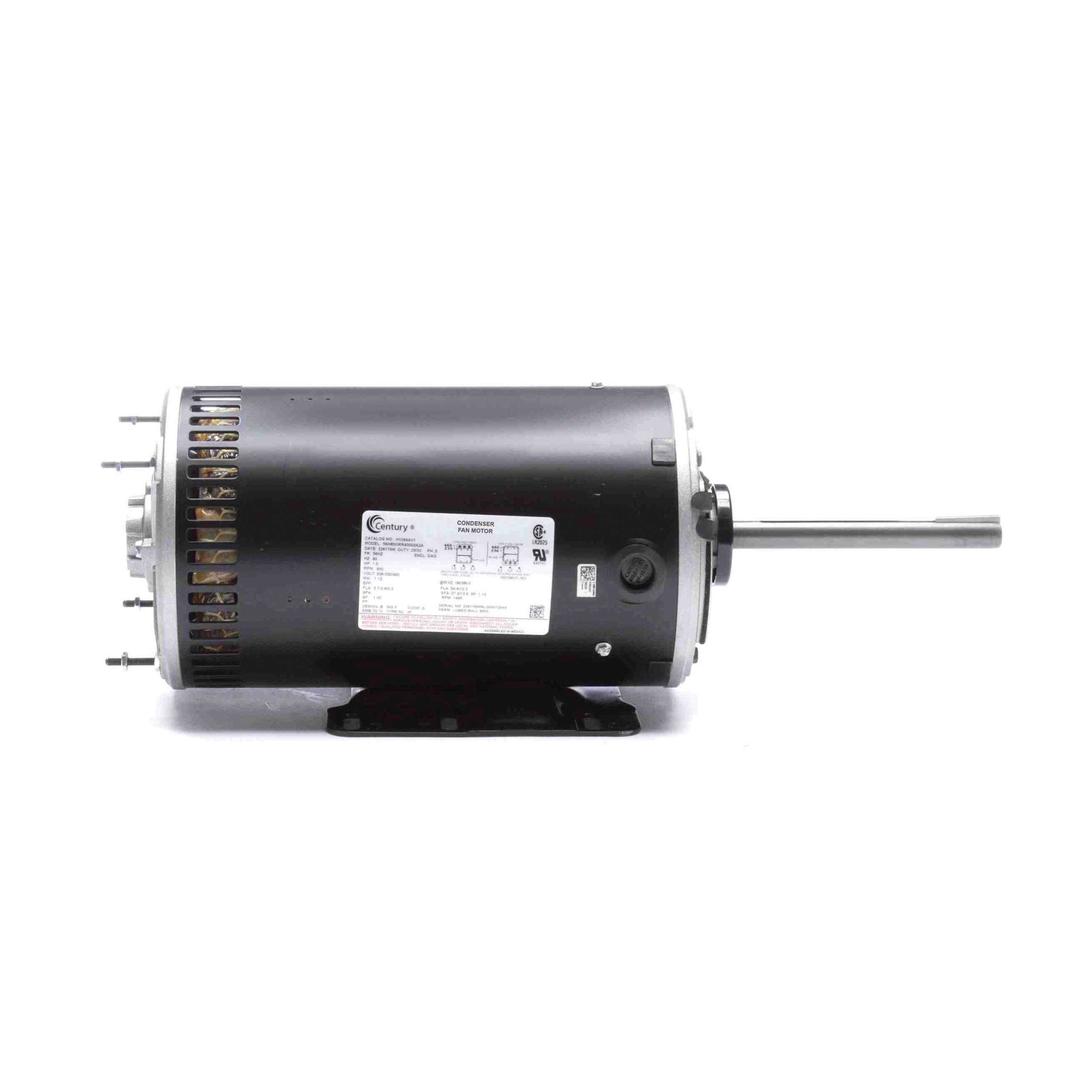

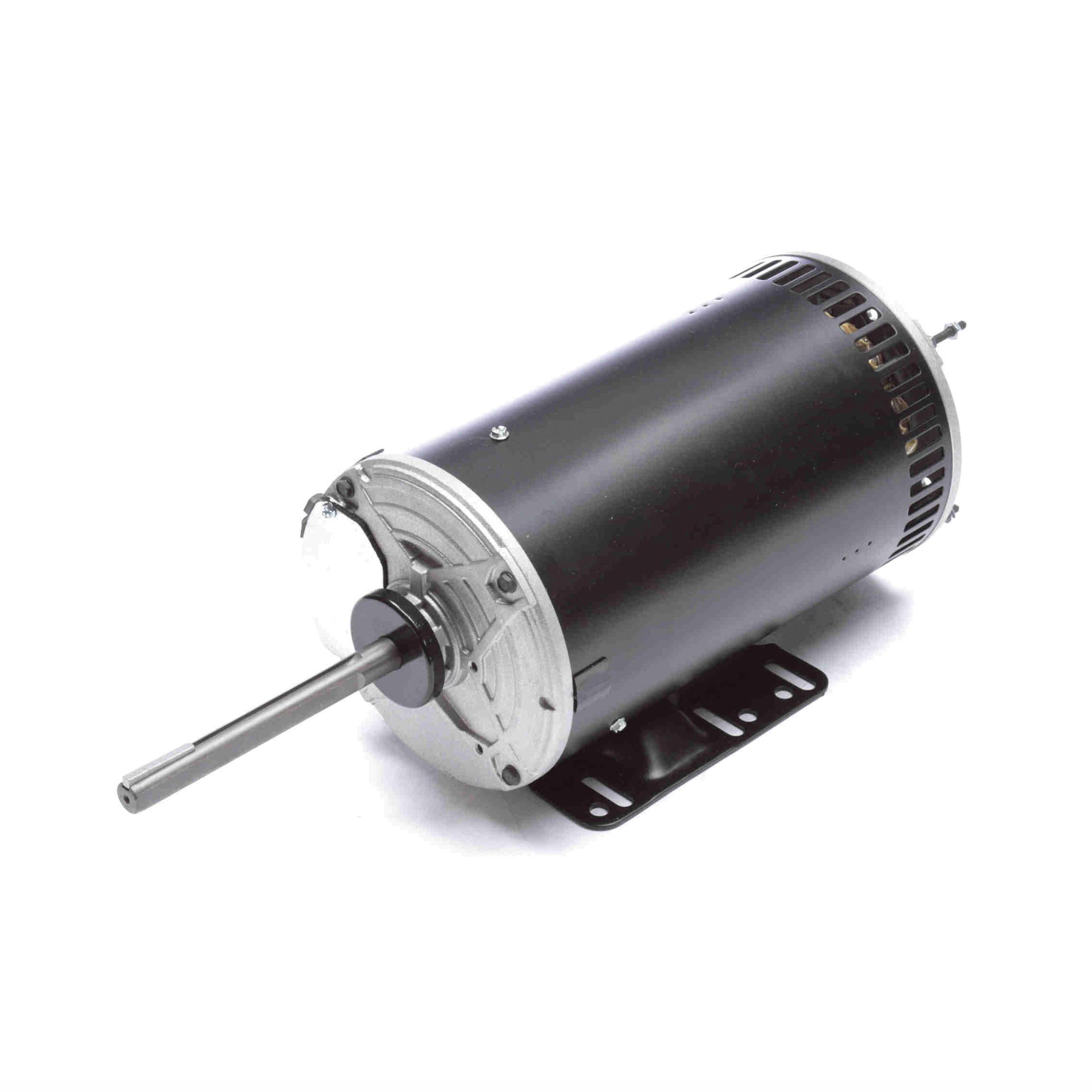

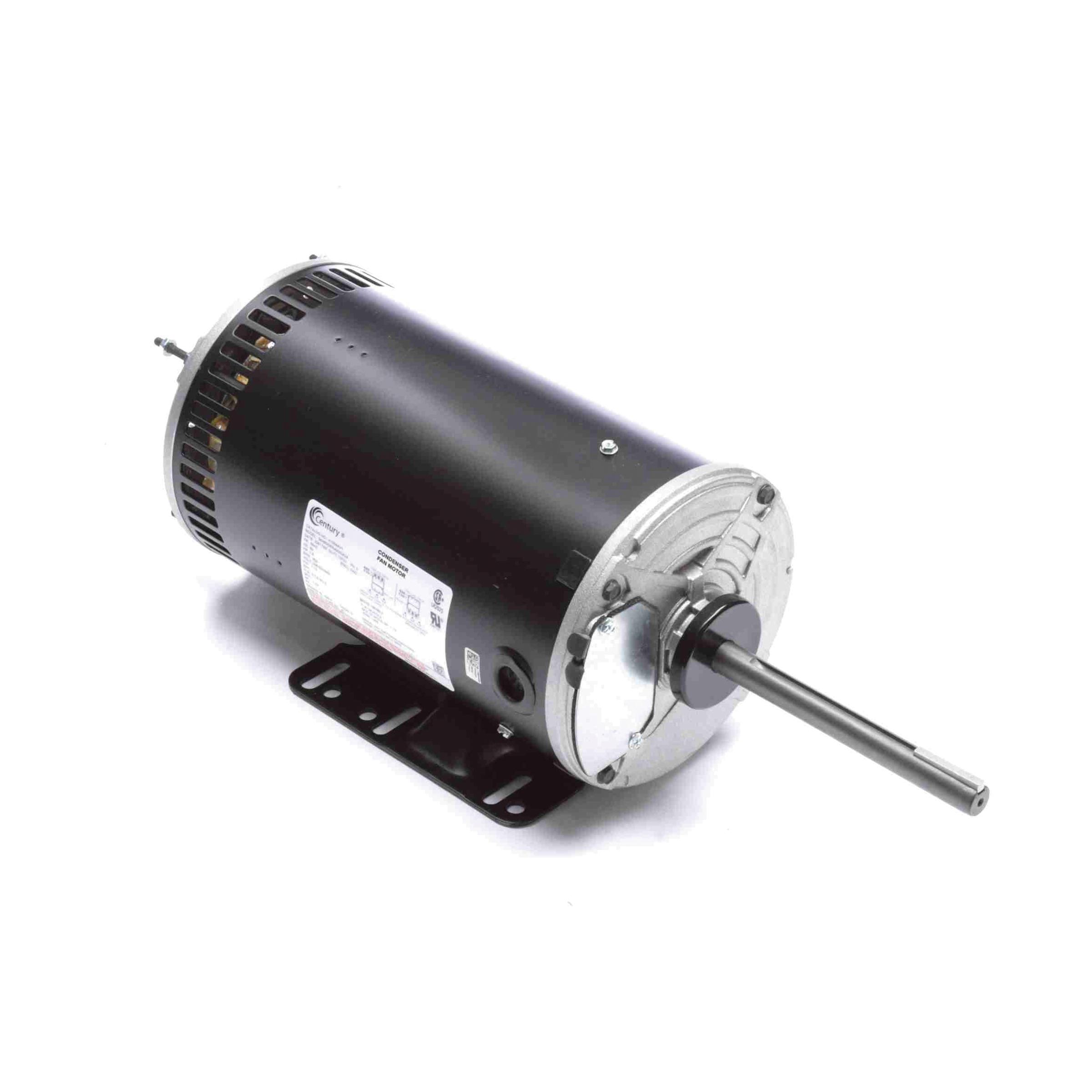

Century® JUGGERNAUT® H1054AV1 Condenser Fan Motor, 1 hp, 1.5 hp Hp, 208 to 230/460, 190/380 V, 60 Hz, 3 ph -Phase
Brand: Century®
Item No: H1054AV1
Sign In for Availability
Description
Century® JUGGERNAUT® Condenser Fan Motor, 1 hp, 1.5 hp Hp, 208 to 230/460, 190/380 V, 6.6 to 6.6/3.3, 6/3 A, 60 Hz, 3 ph, 705 rpm, 850 rpm rpm Speed, 1 Speed, Open Air Over Enclosure, 56HZ Frame, 0.625 in Dia x 6 in L Shaft, 1, Ball, Rigid Base Mount, 70 deg C Ambient, Class F, 18.85 in OAH, 1.1 kW Power, 8 Pole, Reversible Rotation
Features
- Automatic reset thermal protector prevents overheating
- Patented MAXGuard® insulation system offers superior protection for use with a variable frequency drive
- Permanently lubricated, double-sealed bearings extend the lifetime of the motor
- Ambient temperature up to 70 deg C allows for consistent operation in a range of environments and applications
- Vertical/horizontal mounting for proper placement of the fan within airflow
- Operational at 208 to 230/460 V at 60 Hz
Specifications
|
Additional Information |
1.1 kW Power, 8 Pole, Reversible Rotation |
|
Amperage Rating |
6.6 to 6.6/3.3, 6/3 A |
|
Bearing Type |
Ball |
|
Enclosure Type |
Open Air Over |
|
Frame |
56HZ |
|
Frequency Rating |
60 Hz |
|
HP Rating |
1 hp, 1.5 hp Hp |
|
Insulation Class |
Class F |
|
Mounting Type |
Rigid Base |
|
Number of Speeds |
1 |
|
Overall Height |
18.85 in |
|
Phase |
3 ph |
|
Service Factor |
1 |
|
Shaft Size |
0.625 in Dia x 6 in L |
|
Speed Rating |
705 rpm, 850 rpm rpm |
|
Temperature Rating |
70 deg C Ambient |
|
Voltage Rating |
208 to 230/460, 190/380 V |
