Century® H667

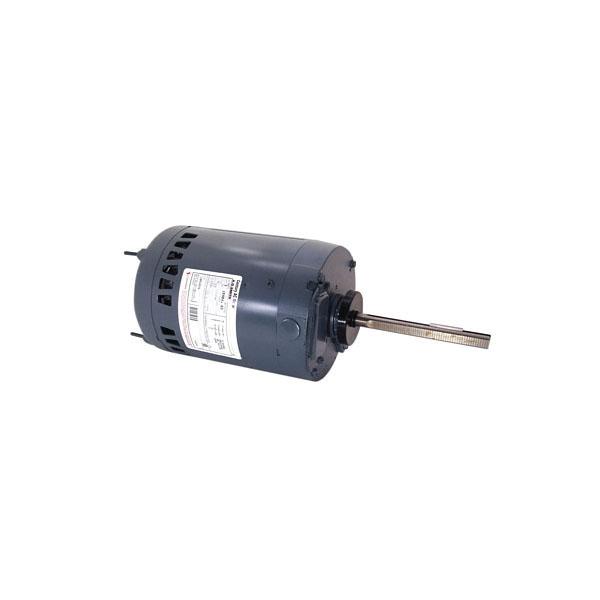

Century® H667 Condenser Fan Motor, 200 to 230/460 V, 2.6/5.3/5.2 A Full Load, 1 hp, 1140 rpm Speed, 0.75 kW, 3 ph -Phase
Brand: Century®
Item No: H667
Sign In for Availability
Description
Century® Condenser Fan Motor, 200 to 230/460 V, 2.6/5.3/5.2 A Full Load, 1 hp, 1140 rpm, 0.75 kW, 3 ph Phase, 60 Hz, Open Opposite Shaft End Motor Enclosure, 56 Frame, 5/8 in Dia x 6 in L Shaft, Reversible Rotation, 1 Speed, Double Sealed Ball Bearing, Belly Band Mounting, B Insulation Class, Continuous Air Over, 1 Service Factor, 6 Poles, Keyed Shaft Design, 6-3/4 in Frame Length, Rolled Steel, 60 deg C, 6-1/2 in Dia
Features
- Class B moisture-resistant insulation
- 5/8 in Dia shaft with both keyway and flat
- Single shaft
- Automatic thermal overload protection
- 10-7/8 in L less shaft
- Direct replacement for Emerson 1818, Baldor CFM3156A, Fasco® D6608, century FC3106, Marathon electric X502
Specifications
|
Amperage Rating |
2.6/5.3/5.2 A Full Load |
|
Bearing Type |
Double Sealed Ball |
|
Dimensions |
6-1/2 in Dia |
|
Duty Type |
Continuous Air Over |
|
Frame Length |
6-3/4 in |
|
Frame Size |
56 |
|
Frequency Rating |
60 Hz |
|
HP Rating |
1 hp |
|
Insulation Class |
B |
|
Material |
Rolled Steel |
|
Motor Enclosure Type |
Open Opposite Shaft End |
|
Mounting Type |
Belly Band |
|
Number of Poles |
6 |
|
Number of Speeds |
1 |
|
Phase |
3 ph |
|
Power Rating |
0.75 kW |
|
Rotation Type |
Reversible |
|
Service Factor |
1 |
|
Shaft Design |
Keyed |
|
Shaft Size |
5/8 in Dia x 6 in L |
|
Speed Rating |
1140 rpm |
|
Temperature Rating |
60 deg C |
|
Voltage Rating |
200 to 230/460 V |
