Century® OAN1076

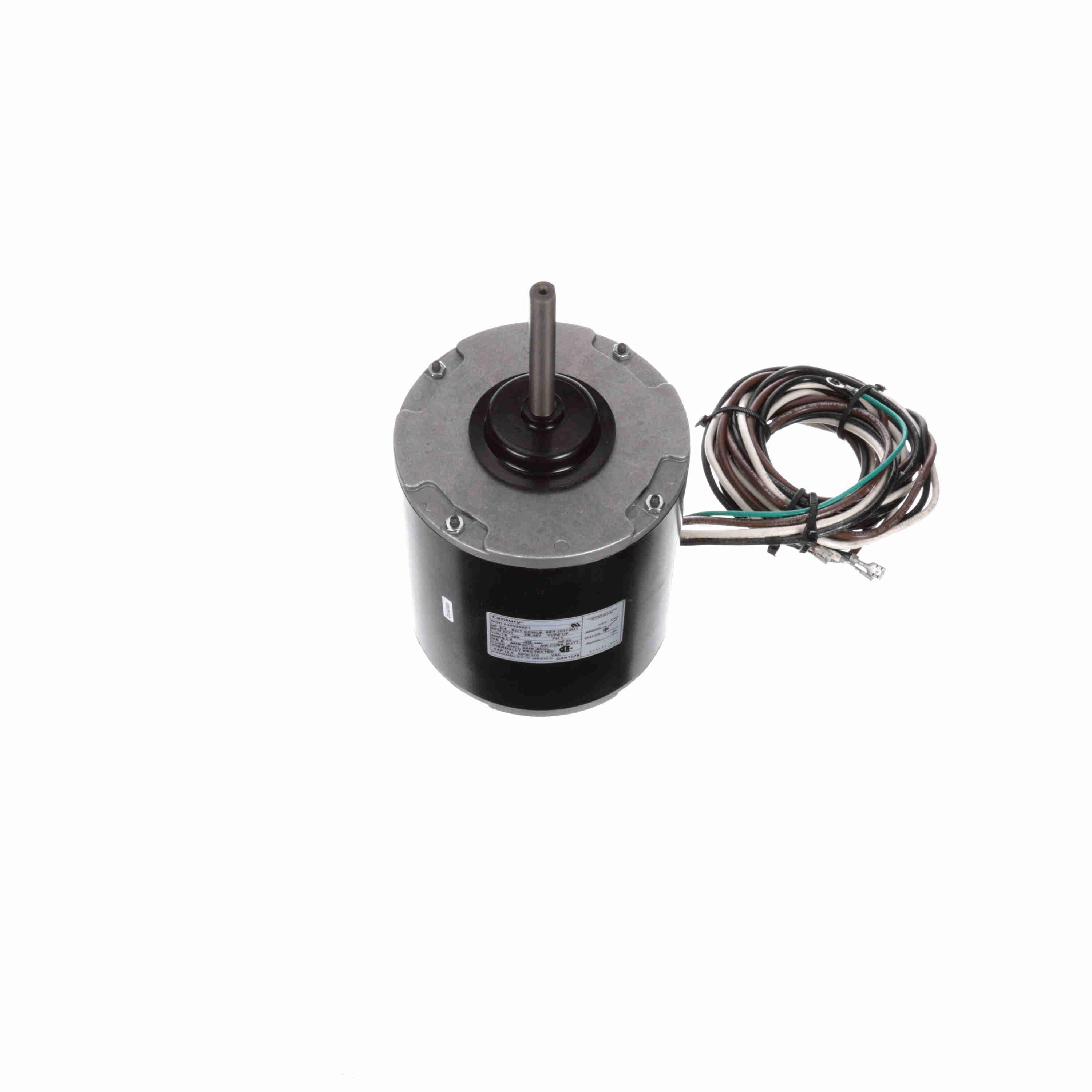

Century® OAN1076 Replacement Motor, 3/4 hp, 460 V, 60 Hz, 1 ph -Phase, 48Y Frame, 1075 rpm Speed
Brand: Century®
Item No: OAN1076
Sign In for Availability
Description
Century® Replacement Motor, 3/4 hp, 460 V, 2.6 A, 60 Hz, 1 ph, 1075 rpm Speed, 1 Speed, Semi-Enclosed Enclosure, 48Y Frame, 0.5 in Dia x 4 in L Shaft, 1, Ball, Round Belly Band Mount, 60 deg C Ambient, Class B, 9.99 in OAH, 0.56 kW Power, 6 Pole, CCWLE Rotation
Features
- OEM direct replacement motor
- 5.6 in dia - 48 frame
- Permanent split capacitor (PSC)
- Thermally protected
- Open opposite shaft end end-frame, enclosed shaft end end-frame and shell, air over
- Class B insulation, 60 deg C ambient
- Ball bearing
- 1/2 in dia shaft with flat
- 98 in leads with quick connect terminals
- Vertical shaft up
Specifications
|
Additional Information |
0.56 kW Power, 6 Pole, CCWLE Rotation |
|
Amperage Rating |
2.6 A |
|
Bearing Type |
Ball |
|
Enclosure Type |
Semi-Enclosed |
|
Frame |
48Y |
|
Frequency Rating |
60 Hz |
|
HP Rating |
3/4 hp |
|
Insulation Class |
Class B |
|
Mounting Type |
Round Belly Band |
|
Number of Speeds |
1 |
|
Overall Height |
9.99 in |
|
Phase |
1 ph |
|
Service Factor |
1 |
|
Shaft Size |
0.5 in Dia x 4 in L |
|
Speed Rating |
1075 rpm |
|
Temperature Rating |
60 deg C Ambient |
|
Voltage Rating |
460 V |
