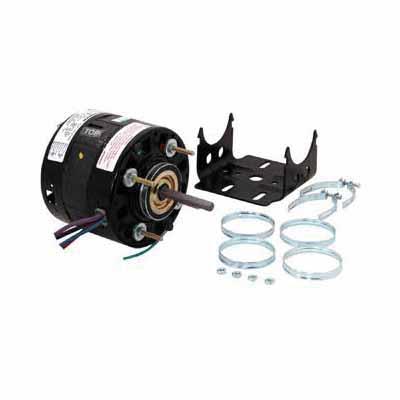

Century® RF4400
Century® RF4400 Refrigeration Motor, 115/208 to 230 VAC, 4/2 A, 1/10 hp, 1550 rpm Speed, 0.07 kW, 1 ph -Phase, 60 Hz
Brand: Century®
Item No: RF4400
Sign In for Availability
Description
Century® Refrigeration Motor, 115/208 to 230 VAC, 4/2 A, 1/10 hp, 1550 rpm, 0.07 kW, 1 ph Phase, 60 Hz, Open Motor Enclosure, 42Y Frame, 3/8 in Dia x 2-1/4 in L Shaft, Clockwise Shaft End Rotation, 1 Speed, Flat Shaft Type, 35 % Efficiency, Sleeve Bearing, Stud Mounting, Air Over, A Insulation Class, 4 Poles, 1 Service Factor, Across the Line Starting Method, 40 deg C, 4.88 in Dia x 7.17 in L
Features
- Automatic thermal protection
- Grommeted lead exit
- Mechanically reversible in the field
- Lead exit is on shaft-end
Specifications
|
Amperage Rating |
4/2 A |
|
Bearing Type |
Sleeve |
|
Dimensions |
4.88 in Dia x 7.17 in L |
|
Duty Type |
Air Over |
|
Efficiency |
35 % |
|
Frame Size |
42Y |
|
Frequency Rating |
60 Hz |
|
HP Rating |
1/10 hp |
|
Insulation Class |
A |
|
Motor Enclosure Type |
Open |
|
Mounting Type |
Stud |
|
Number of Poles |
4 |
|
Number of Speeds |
1 |
|
Phase |
1 ph |
|
Power Rating |
0.07 kW |
|
Rotation Type |
Clockwise Shaft End |
|
Service Factor |
1 |
|
Shaft Size |
3/8 in Dia x 2-1/4 in L |
|
Shaft Type |
Flat |
|
Speed Rating |
1550 rpm |
|
Starting Method |
Across the Line |
|
Temperature Rating |
40 deg C |
|
Voltage Rating |
115/208 to 230 VAC |
