Cleveland Controls RSS-495-11

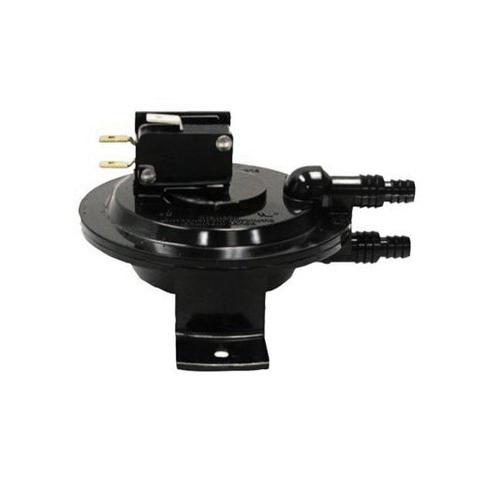

Cleveland Controls RSS-495-11 Air Pressure Sensing Switch Kit, 5 A Non-Inductive, 120 - 277 VAC, SPDT, Thermoplastic
Brand: Cleveland Controls
Item No: 2374-495
Sign In for Availability
Description
Cleveland Controls Air Pressure Sensing Switch Kit, 5 A Non-Inductive, 120 - 277 VAC, (3) 90 deg Male Quick Connect Connection, Switching Action: Snap, SPDT, 0.25 - 1 in WC, 1 lb/sq-in Maximum Pressure, Diaphragm/Vertical Mounting, Thermoplastic, Pilot Duty: 1 A 120 V-A at 120 VAC, -40 to 190 deg F, 4.62 in W x 4 in H x 2.13 in D
Features
- Barbed sample line connectors on each side of the diaphragm accept flexible tubing
- Switch can be actuated by a positive or negative pressure, or by a pressure differential
- Actuate on either pressure rise or fall
Specifications
|
Amperage Rating |
5 A Non-Inductive |
|
Connection Type |
(3) 90 deg Male Quick Connect |
|
Contact Configuration |
SPDT |
|
Dimensions |
4.62 in W x 4 in H x 2.13 in D |
|
Material |
Thermoplastic |
|
Mounting Type |
Diaphragm/Vertical |
|
Pilot Duty Rating |
1 A 120 V-A at 120 VAC |
|
Pressure Rating |
0.25 - 1 in WC, 1 lb/sq-in Maximum |
|
Switching Action |
Snap |
|
Temperature Rating |
-40 to 190 deg F |
|
Voltage Rating |
120 - 277 VAC |
