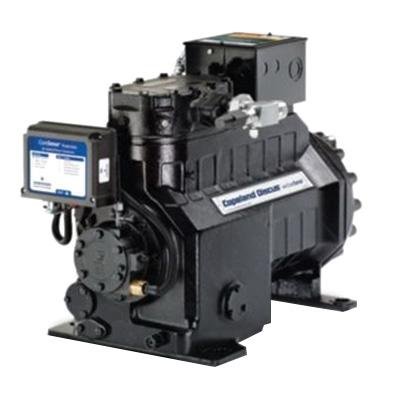

Copeland™ 2DA3R89KE-TFD-800
Copeland™ 2D 2DA3R89KE-TFD-800 Semi-Hermetic Compressor, 460 VAC, 6850 W, 6 hp, R-22, HCFC Refrigerant
Brand: Copeland™
Item No: 2DA3R89KE-TFD-800
Sign In for Availability
Description
Copeland™ Semi-Hermetic Compressor, Series: 2D, 89000 Btu/hr BTU, 1-3/8 in Sweat Suction Line, 7/8 in Sweat Discharge Line, 505 - 870 lb/hr, 18.9 cu-ft/min, 460 VAC, 10.9 A, 6850 W, 6 hp, R-22, HCFC Refrigerant, 3500 rev/min Speed, 7.3 - 8.7 EER, POE Compressor Oil, 0-20 deg F Evaporator, 110-120 deg F Condensing, 50-65 deg F Return Gas, 95-120 deg F Liquid, 23.63 in L x 15.37 in W x 18.55 in H
Features
- General 3-lead single voltage, 6-lead part winding (575 V), 9-lead dual voltage
- Internal inherent protection-one-protector (line break) Use with contactor
- Compressor family Series
- Discus compressor cooling
- Displacement and valve plate
- Model variation
- ARI high temperature rated at 45/130 deg F primary application
- 80 oz initial oil charge, 72 oz oil recharge
- 11.62 in L x 11 in W x 20.05 in H mounting
- 13.9 A-rated load, 85 A locked rotor, 19.4 A minimum circuit
- Two-cylinders
- 2.56 in bore, 1.81 in stroke
- 18.66 cu-in/rev displacement, 1133.94 cu-ft/hr displacement
Specifications
|
Amperage Rating |
10.9 A |
|
BTU Rating |
89000 Btu/hr |
|
CFM Rating |
18.9 cfm |
|
Compressor Oil |
POE |
|
Dimensions |
23.63 in L x 15.37 in W x 18.55 in H |
|
Discharge Line Size |
7/8 in Sweat |
|
EER Rating |
7.3 to 8.7 |
|
Flow Rate |
505 to 870 lb/hr |
|
Power Rating |
6850 W, 6 hp |
|
Refrigerant Type |
R-22, HCFC |
|
Series |
2D |
|
Speed Rating |
3500 rpm |
|
Suction Line Size |
1-3/8 in Sweat |
|
Temperature Rating |
0 to 20 deg F Evaporator, 110 to 120 deg F Condensing, 50 to 65 deg F Return Gas, 95 to 120 deg F Liquid |
|
Voltage Rating |
460 VAC |
