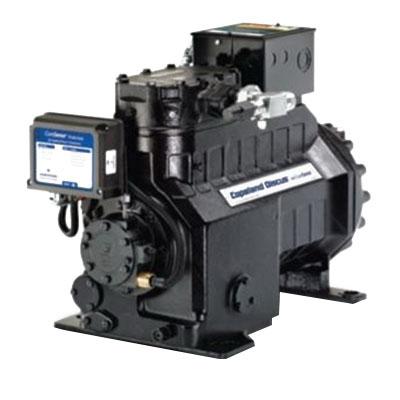

Copeland™ 2DD3R63KE-TFC-800
Copeland™ 2D 2DD3R63KE-TFC-800 Semi-Hermetic Compressor, 208 - 230 VAC, 6100 W, 5 hp, R-22, HCFC Refrigerant
Brand: Copeland™
Item No: 2DD3R63KE-TFC-800
Sign In for Availability
Description
Copeland™ Semi-Hermetic Compressor, Series: 2D, 63000 Btu/hr BTU, 1-3/8 in Sweat Suction Line, 7/8 in Sweat Discharge Line, 930 - 1070 lb/hr, 13.72 cu-ft/min, 208 - 230 VAC, 18.5 A, 6100 W, 5 hp, R-22, HCFC Refrigerant, 3500 rev/min Speed, 11.9 - 14.8 EER, POE Compressor Oil, 35-45 deg F Evaporator, 105-130 deg F Condensing, 55-65 deg F Return Gas, 90-115 deg F Liquid, 23.63 in L x 15.37 in W x 18.55 in H
Features
- General 3-lead single voltage, 6-lead part winding (575 V), 9-lead dual voltage
- Internal inherent protection-one-protector (line break) Use with contactor
- Compressor family Series
- Discus compressor cooling
- Displacement and valve plate
- Model variation
- ARI high temperature rated at 45/130 deg F primary application
- 80 oz initial oil charge, 72 oz oil recharge
- 11.62 in L x 11 in W x 20.05 in H mounting
- 22.3 A-rated load, 120 A locked rotor, 31.2 A minimum circuit
- Two-cylinders
- 2-1/2 in bore, 1.38 in stroke
- 13.55 cu-in/rev displacement
Specifications
|
Amperage Rating |
18.5 A |
|
BTU Rating |
63000 Btu/hr |
|
CFM Rating |
13.72 cfm |
|
Compressor Oil |
POE |
|
Dimensions |
23.63 in L x 15.37 in W x 18.55 in H |
|
Discharge Line Size |
7/8 in Sweat |
|
EER Rating |
11.9 to 14.8 |
|
Flow Rate |
930 to 1070 lb/hr |
|
Power Rating |
6100 W, 5 hp |
|
Refrigerant Type |
R-22, HCFC |
|
Series |
2D |
|
Speed Rating |
3500 rpm |
|
Suction Line Size |
1-3/8 in Sweat |
|
Temperature Rating |
35 to 45 deg F Evaporator, 105 to 130 deg F Condensing, 55 to 65 deg F Return Gas, 90 to 115 deg F Liquid |
|
Voltage Rating |
208 to 230 VAC |
