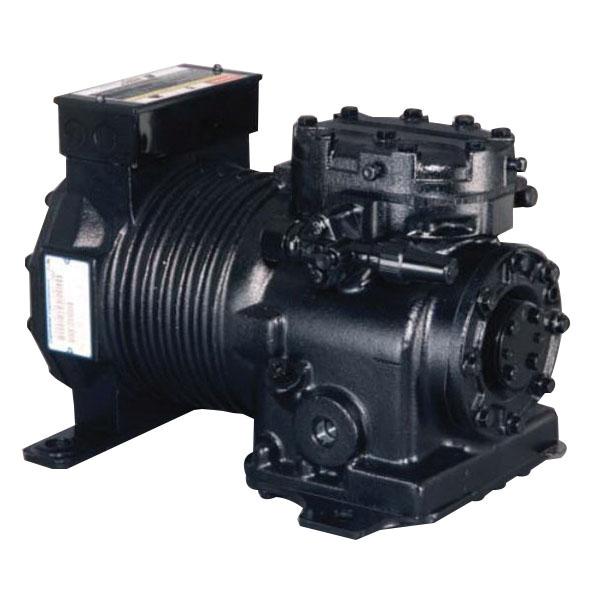

Copeland™ 3AB1-031A-TAC-800
Copeland™ 3A 3AB1-031A-TAC-800 Semi-Hermetic Compressor, 208 - 230 VAC, 1960 W, 3 hp, R-502, CFC Refrigerant
Brand: Copeland™
Item No: 3AB1-031A-TAC-800
Sign In for Availability
Description
Copeland™ Semi-Hermetic Compressor, Series: 3A, 8630 Btu/hr BTU, 1-1/8 in Sweat Suction Line, 5/8 in Flare Discharge Line, 103 - 170 lb/hr, 8.75 cu-ft/min, 208 - 230 VAC, 7.1 A, 1960 W, 3 hp, R-502, CFC Refrigerant, 3500 rev/min Speed, 3.5 - 4.4 EER, Alkylbenzene Compressor Oil, -40 to-25 deg F Evaporator, 105 deg F Condensing, 65 deg F Return Gas, 105 deg F Liquid, 18 in L x 13 in W x 12.69 in H
Features
- General 3-lead single voltage, 6-lead part winding (575 V), 9-lead dual voltage
- External inherent protection-one-protector (line break) Use with contactor
- Compressor family Series
- Displacement and valve plate
- Model variation
- 70 oz initial oil charge, 65 oz oil recharge
- 11.63 in L x 11 in W x 13.72 in H mounting
- 10 A-rated load, 82 A locked rotor, 14 A minimum circuit
- Two-cylinders
- 2 in bore, 1.38 in stroke
- 8.64 cu-in/rev displacement
Specifications
|
Amperage Rating |
7.1 A |
|
BTU Rating |
8630 Btu/hr |
|
CFM Rating |
8.75 cfm |
|
Compressor Oil |
Alkylbenzene |
|
Dimensions |
18 in L x 13 in W x 12.69 in H |
|
Discharge Line Size |
5/8 in Flare |
|
EER Rating |
3.5 to 4.4 |
|
Flow Rate |
103 to 170 lb/hr |
|
Power Rating |
1960 W, 3 hp |
|
Refrigerant Type |
R-502, CFC |
|
Series |
3A |
|
Speed Rating |
3500 rpm |
|
Suction Line Size |
1-1/8 in Sweat |
|
Temperature Rating |
-40 to -25 deg F Evaporator, 105 deg F Condensing, 65 deg F Return Gas, 105 deg F Liquid |
|
Voltage Rating |
208 to 230 VAC |
