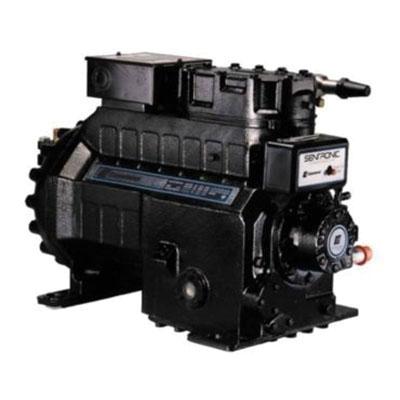

Copeland™ 3DB3F33KE-TFC-800
Copeland™ 3D 3DB3F33KE-TFC-800 Semi-Hermetic Compressor, 208 - 230 VAC, 5550 W, 5-1/2 hp, R-22, HCFC Refrigerant
Brand: Copeland™
Item No: 3DB3F33KE-TFC-800
Sign In for Availability
Description
Copeland™ Semi-Hermetic Compressor, Series: 3D, 33000 Btu/hr BTU, 1-3/8 in Sweat Suction Line, 1-1/8 in Sweat Discharge Line, 223 - 387 lb/hr, 26.91 cu-ft/min, 208 - 230 VAC, 18.85 A, 5550 W, 5-1/2 hp, R-22, HCFC Refrigerant, 3500 rev/min Speed, 3.9 - 5.2 EER, POE Compressor Oil, -40 to-25 deg F Evaporator, 105 deg F Condensing, 65 deg F Return Gas, 105 deg F Liquid, 25.86 in L x 14.92 in W x 19.13 in H
Features
- General 3-lead single voltage, 6-lead part winding (575 V), 9-lead dual voltage
- Internal inherent protection-one-protector (line break) Use with contactor
- Compressor family Series
- Discus compressor cooling
- Displacement and valve plate
- Model variation
- ARI low temperature rated at-25/105 deg F primary application
- 125 oz initial oil charge, 115 oz oil recharge
- 15 in L x 12 in W x 21.09 in H mounting
- 29.6 A-rated load, 161 A locked rotor, 41.5 A minimum circuit
- Three-cylinders
- 2.38 in bore, 2 in stroke
- 26.58 cu-in/rev displacement
Specifications
|
Amperage Rating |
18.85 A |
|
BTU Rating |
33000 Btu/hr |
|
CFM Rating |
26.91 cfm |
|
Compressor Oil |
POE |
|
Dimensions |
25.86 in L x 14.92 in W x 19.13 in H |
|
Discharge Line Size |
1-1/8 in Sweat |
|
EER Rating |
3.9 to 5.2 |
|
Flow Rate |
223 to 387 lb/hr |
|
Power Rating |
5550 W, 5-1/2 hp |
|
Refrigerant Type |
R-22, HCFC |
|
Series |
3D |
|
Speed Rating |
3500 rpm |
|
Suction Line Size |
1-3/8 in Sweat |
|
Temperature Rating |
-40 to -25 deg F Evaporator, 105 deg F Condensing, 65 deg F Return Gas, 105 deg F Liquid |
|
Voltage Rating |
208 to 230 VAC |
