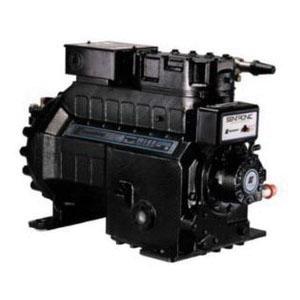

Copeland™ 3DTHR17ME-TFD-800
Copeland™ 3D 3DTHR17ME-TFD-800 Semi-Hermetic Compressor, 460 VAC, R-407A Refrigerant
Brand: Copeland™
Item No: 3DTHR17ME-TFD-800
Sign In for Availability
Description
Copeland™ Semi-Hermetic Compressor, Series: 3D, 17000 Btu/hr BTU, 1-5/8 in Sweat Suction Line, 1-1/8 in Sweat Discharge Line, 460 VAC, R-407A Refrigerant
Features
- Internal inherent protection-one-protector (line break) Use with contactor
- 3rd compressor family Series
- Discus compressor cooling
- Displacement and valve plate
- Model variation
- ARI high temperature rated at 45/130 deg F primary application
- Three-Lead single voltage, 6 lead part winding (575 V), 9 lead dual voltage
- Product variations
- 125 oz initial oil charge, 115 oz oil recharge
- 15 in L x 12 in W x 22.34 in H mounting
- 29 A-rated load, 138 A locked rotor
- Three-cylinders
- 2.44 in bore, 2.50 in stroke
- 35.01 cu-in/rev displacement
Specifications
|
BTU Rating |
17000 Btu/hr |
|
Discharge Line Size |
1-1/8 in Sweat |
|
Refrigerant Type |
R-407A |
|
Series |
3D |
|
Suction Line Size |
1-5/8 in Sweat |
|
Voltage Rating |
460 VAC |
