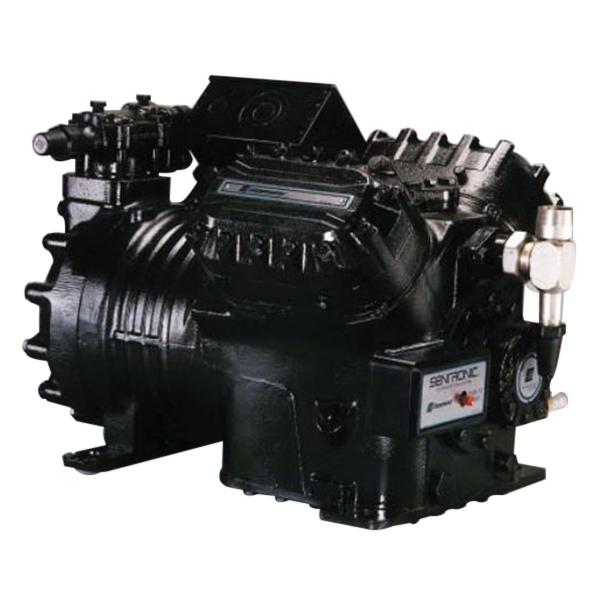

Copeland™ 4DK3R16ME-TSK-800
Copeland™ 4D 4DK3R16ME-TSK-800 Semi-Hermetic Compressor, 208 - 230/460 VAC, 15300 W, 15 hp, R-134A, HFC Refrigerant
Brand: Copeland™
Item No: 4DK3R16ME-TSK-800
Sign In for Availability
Description
Copeland™ Semi-Hermetic Compressor, Series: 4D, 160000 Btu/hr BTU, 1-5/8 in Sweat Suction Line, 1-1/8 in Sweat Discharge Line, 1530 - 2710 lb/hr, 50.3 cu-ft/min, 208 - 230/460 VAC, 23.2 A, 15300 W, 15 hp, R-134A, HFC Refrigerant, 3500 rev/min Speed, 8.5 - 10.2 EER, POE Compressor Oil, 20-45 deg F Evaporator, 120-130 deg F Condensing, Liquid, 65 deg F Return Gas, 25.41 in L x 20-1/2 in W x 18.78 in H
Features
- General 3-lead single voltage, 6-lead part winding (575 V), 9-lead dual voltage
- Internal thermal protectors-electronic sensors and control module external use with contactor
- Compressor family Series
- Discus compressor cooling
- Displacement and valve plate
- Model variation
- ARI high temperature rated at 45/130 deg F primary application
- 135 oz initial oil charge, 125 oz oil recharge
- 15 in L x 12 in W x 19.97 in H mounting
- 28.9 A-rated load, 139 A locked rotor, 40.5 A minimum circuit
- Four-cylinders
- 2.69 in bore, 2.19 in stroke
- 49.67 cu-in/rev displacement
Specifications
|
Amperage Rating |
23.2 A |
|
BTU Rating |
160000 Btu/hr |
|
CFM Rating |
50.3 cfm |
|
Compressor Oil |
POE |
|
Dimensions |
25.41 in L x 20.5 in W x 18.78 in H |
|
Discharge Line Size |
1-1/8 in Sweat |
|
EER Rating |
8.5 to 10.2 |
|
Flow Rate |
1530 to 2710 lb/hr |
|
Power Rating |
15300 W, 15 hp |
|
Refrigerant Type |
R-134A, HFC |
|
Series |
4D |
|
Speed Rating |
3500 rpm |
|
Suction Line Size |
1-5/8 in Sweat |
|
Temperature Rating |
20 to 45 deg F Evaporator, 120 to 130 deg F Condensing, Liquid, 65 deg F Return Gas |
|
Voltage Rating |
208 to 230/460 VAC |
