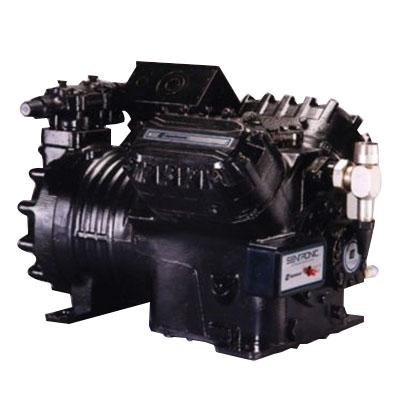

Copeland™ 4DK3R22ME-TSK-800
Copeland™ 4D 4DK3R22ME-TSK-800 Semi-Hermetic Compressor, 208 - 230/460 VAC, 23700 W, 20 hp, R-22, HCFC Refrigerant
Brand: Copeland™
Item No: 4DK3R22ME-TSK-800
Sign In for Availability
Description
Copeland™ Semi-Hermetic Compressor, Series: 4D, 220000 Btu/hr BTU, 2-1/8 in Sweat Suction Line, 1-3/8 in Sweat Discharge Line, 3380 - 3840 lb/hr, 50.29 cu-ft/min, 208 - 230/460 VAC, 36.15 A, 23700 W, 20 hp, R-22, HCFC Refrigerant, 3500 rev/min Speed, 11.1 - 14 EER, POE Compressor Oil, 35-45 deg F Evaporator, 105-130 deg F Condensing, 55-65 deg F Return Gas, 90-115 deg F Liquid, 26.28 in L x 20-1/2 in W x 18.78 in H
Features
- General 3-lead single voltage, 6-lead part winding (575 V), 9-lead dual voltage
- Internal thermal protectors-electronic sensors and control module external use with contactor
- Compressor family Series
- Discus compressor cooling
- Displacement and valve plate
- Model variation
- ARI high temperature rated at 45/130 deg F primary application
- 135 oz initial oil charge, 125 oz oil recharge
- 15 in L x 12 in W x 19.97 in H mounting
- 41.1 A-rated load, 214 A locked rotor, 57.5 A minimum circuit
- Four-cylinders
- 2.69 in bore, 2.19 in stroke
- 49.67 cu-in/rev displacement
Specifications
|
Amperage Rating |
36.15 A |
|
BTU Rating |
220000 Btu/hr |
|
CFM Rating |
50.29 cfm |
|
Compressor Oil |
POE |
|
Dimensions |
26.28 in L x 20.5 in W x 18.78 in H |
|
Discharge Line Size |
1-3/8 in Sweat |
|
EER Rating |
11.1 to 14 |
|
Flow Rate |
3380 to 3840 lb/hr |
|
Power Rating |
23700 W, 20 hp |
|
Refrigerant Type |
R-22, HCFC |
|
Series |
4D |
|
Speed Rating |
3500 rpm |
|
Suction Line Size |
2-1/8 in Sweat |
|
Temperature Rating |
35 to 45 deg F Evaporator, 105 to 130 deg F Condensing, 55 to 65 deg F Return Gas, 90 to 115 deg F Liquid |
|
Voltage Rating |
208 to 230/460 VAC |
