Copeland™ 50M56X-843

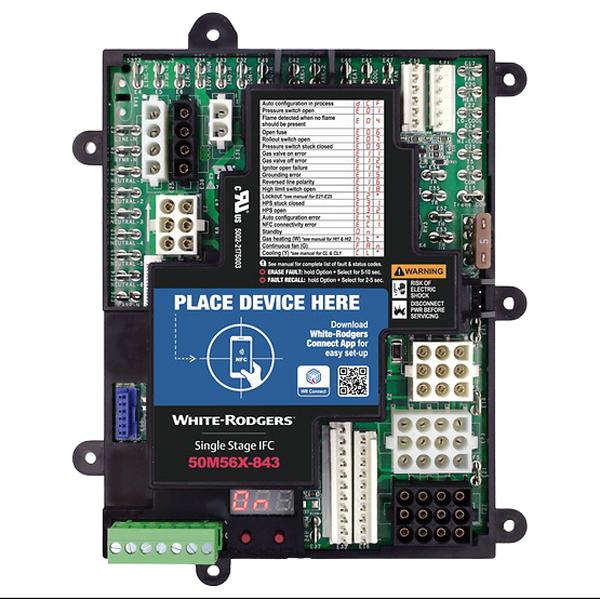

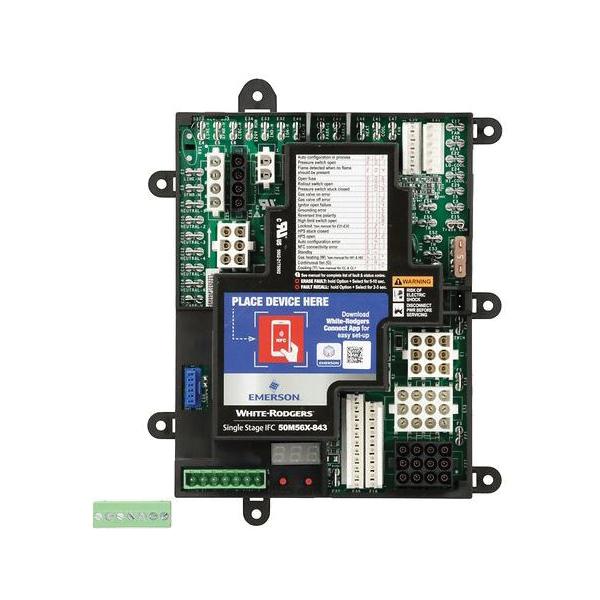

Copeland™ 50M56X-843 Universal Integrated Hot Surface Ignition Control Kit, 25 V, 0.8 A, 60 Hz
Brand: Copeland™
Item No: 50M56X-843
Sign In for Availability
Description

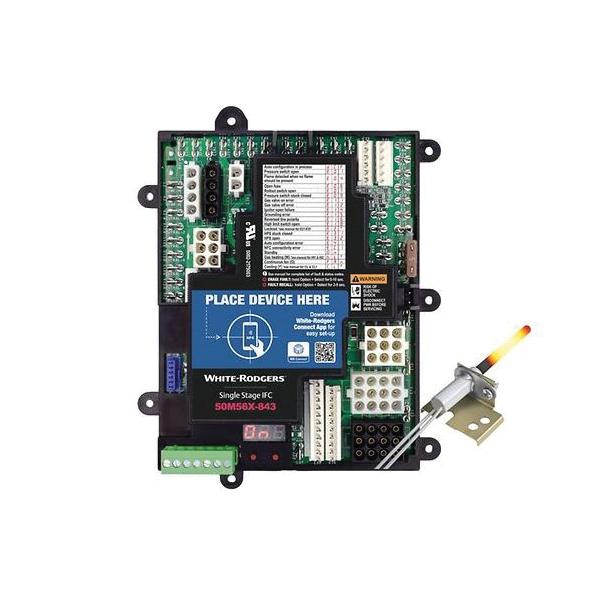

Universal single-stage HSI integrated furnace control for PSC and ECMx blower motors. Includes a universal 120 V nitride ignitor and utilizes the WHITE-RODGERS™ connect app for simple configuration and diagnostics.
Copeland™ Universal Integrated Hot Surface Ignition Control Kit, 25 V, 0.8 A, 60 Hz, 14.5 A Full Load, 25 A Locked Rotor Contact Rating, -40 to 175 deg F, Liquid Petroleum, LP Gas Air Mixtures Gas, For Use With: PSC and ECMx Blower Motors, Additional Information: 8-1/4 in L x 6-1/2 in W x 1-1/2 in D Dimension, 5 to 93% Relative Humidity, 1-Stage
Features
- Reduce inventory by replacing over 550 part numbers
- Quick configuration (without power) and diagnostics with the WHITE-RODGERS™ connect app
- OEM harness detection, no additional harnesses required
- Seven segment LED display provides unlimited configuration options
- Rollout accessory is not required
- Thermostat connector block for simple wiring
Specifications
|
Additional Information |
8-1/4 in L x 6-1/2 in W x 1-1/2 in D Dimension, 5 to 93% Relative Humidity, 1-Stage |
|
Amperage Rating |
0.8 A |
|
Contact Rating |
14.5 A Full Load, 25 A Locked Rotor |
|
Frequency Rating |
60 Hz |
|
Gas Type |
Liquid Petroleum, LP Gas Air Mixtures |
|
Suitable For Use With |
PSC and ECMx Blower Motors |
|
Temperature Rating |
-40 to 175 deg F |
|
Voltage Rating |
25 V |
