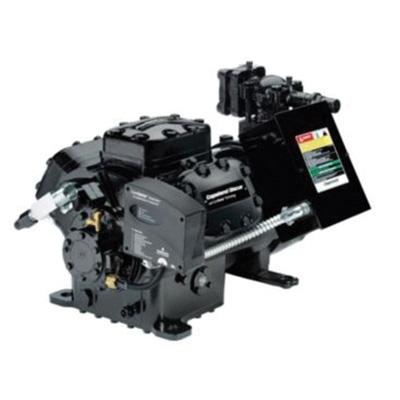

Copeland™ 6DF3F11ME-TSK-800
Copeland™ 6D 6DF3F11ME-TSK-800 Semi-Hermetic Compressor, 208/230/460 VAC, 17 hp, R-404A Refrigerant
Brand: Copeland™
Item No: 6DF3F11ME-TSK-800
Sign In for Availability
Description
Copeland™ Semi-Hermetic Compressor, Series: 6D, 110000 Btu/hr BTU, 01-02-2008 in Suction Line, 2-1/8 in Suction Discharge Line, 1150 - 1880 lb/hr, 90.133 cu-ft/min, 208/230/460 VAC, 17 hp, R-404A Refrigerant, 1750 rev/min Speed, 4.1 - 5 EER, POE Compressor Oil, 65 deg F Return Gas
Features
- General 3-lead single voltage, 6-lead part winding (575 V), 9-lead dual voltage
- Internal thermal protectors-electronic sensors and control module external use with contactor
- Compressor family Series
- Discus compressor cooling
- Displacement and valve plate
- Model variation
- ARI low temperature rated at-25/105 deg F primary application
- 255 oz initial oil charge, 245 oz oil recharge
- 15 in L x 12 in W x 29.19 in H mounting
- 47.8 A-rated load, 235 A locked rotor
Specifications
|
BTU Rating |
110000 Btu/hr |
|
CFM Rating |
90.133 cfm |
|
Compressor Oil |
POE |
|
Discharge Line Size |
2-1/8 in Suction |
|
EER Rating |
4.1 to 5 |
|
Flow Rate |
1150 to 1880 lb/hr |
|
Power Rating |
17 hp |
|
Refrigerant Type |
R-404A |
|
Series |
6D |
|
Speed Rating |
1750 rpm |
|
Suction Line Size |
1-1/4 in |
|
Temperature Rating |
65 deg F Return Gas |
|
Voltage Rating |
208/230/460 VAC |
