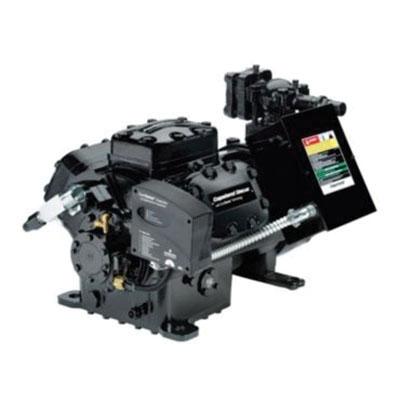

Copeland™ 6DS3R40ME-TSN-800
Copeland™ 6D 6DS3R40ME-TSN-800 Semi-Hermetic Compressor, 230/460 VAC, 43300 W, 35 hp, R-22, HCFC Refrigerant
Brand: Copeland™
Item No: 6DS3R40ME-TSN-800
Sign In for Availability
Description
Copeland™ Semi-Hermetic Compressor, Series: 6D, 400000 Btu/hr BTU, 2-1/8 in Sweat Suction Line, 05-01-2008 in Discharge Line, 5850 - 6650 lb/hr, 90.13 cu-ft/min, 230/460 VAC, 62.95 A, 43300 W, 35 hp, R-22, HCFC Refrigerant, 3500 rev/min Speed, 10.5 - 13.2 EER, POE Compressor Oil, 35-45 deg F Evaporator, 105-130 deg F Condensing, 55-65 deg F Return Gas, 90-115 deg F Liquid, 30.19 in L x 22.44 in W x 23.19 in H
Features
- General 3-lead single voltage, 6-lead part winding (575 V), 9-lead dual voltage
- Internal thermal protectors-electronic sensors and control module external use with contactor
- Compressor family Series
- Discus compressor cooling
- Displacement and valve plate
- Model variation
- ARI high temperature rated at 45/130 deg F primary application
- 255 oz initial oil charge, 245 oz oil recharge
- 15 in L x 12 in W x 23.53 in H mounting
- 141.4 A-rated load, 594 A locked rotor, 198 A minimum circuit
- Six-cylinders
- 2.94 in bore, 2.19 in stroke
- 89 cu-in/rev displacement
Specifications
|
Amperage Rating |
62.95 A |
|
BTU Rating |
400000 Btu/hr |
|
CFM Rating |
90.13 cfm |
|
Compressor Oil |
POE |
|
Dimensions |
30.19 in L x 22.44 in W x 23.19 in H |
|
Discharge Line Size |
5-1/8 in |
|
EER Rating |
10.5 to 13.2 |
|
Flow Rate |
5850 to 6650 lb/hr |
|
Power Rating |
43300 W, 35 hp |
|
Refrigerant Type |
R-22, HCFC |
|
Series |
6D |
|
Speed Rating |
3500 rpm |
|
Suction Line Size |
2-1/8 in Sweat |
|
Temperature Rating |
35 to 45 deg F Evaporator, 105 to 130 deg F Condensing, 55 to 65 deg F Return Gas, 90 to 115 deg F Liquid |
|
Voltage Rating |
230/460 VAC |
