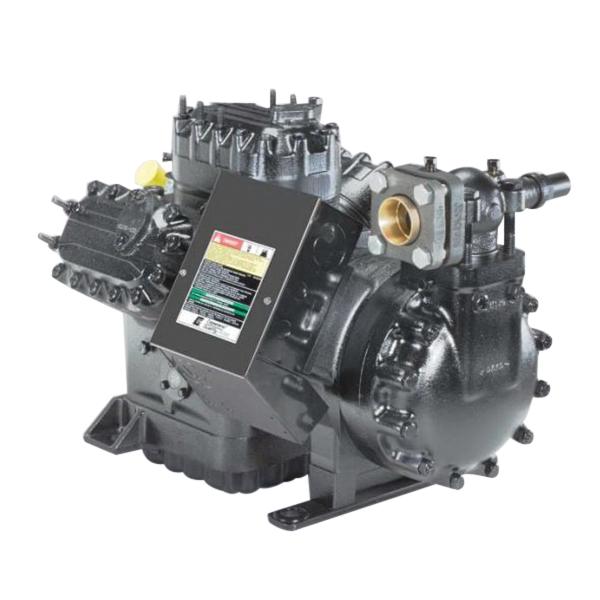

Copeland™ 6DT3F11ME-TSK-800
Copeland™ 6D 6DT3F11ME-TSK-800 Semi-Hermetic Compressor, 208 - 230/460 VAC, 20900 W, 30 hp
Brand: Copeland™
Item No: 6DT3F11ME-TSK-800
Sign In for Availability
Description
Copeland™ Semi-Hermetic Compressor, Series: 6D, 110000 Btu/hr BTU, 2-1/8 in Sweat Suction Line, 03-01-2008 in Discharge Line, 1150 - 1880 lb/hr, 90.13 cu-ft/min, 208 - 230/460 VAC, 34 A, 20900 W, 30 hp, R-22, R-404A, HFC Refrigerant, 3500 rev/min Speed, 5 EER, POE Compressor Oil, -25 to-40 deg F Evaporator, 105 deg F Condensing, Liquid, 65 deg F Return Gas, 29.44 in L x 22.44 in W x 28.84 in H
Features
- General 3-lead single voltage, 6-lead part winding (575 V), 9-lead dual voltage
- Internal thermal protectors-electronic sensors and control module external use with contactor
- Compressor family Series
- Discus compressor cooling
- Displacement and valve plate
- Model variation
- ARI low temperature rated at-25/105 deg F primary application
- 255 oz initial oil charge, 245 oz oil recharge
- 15 in L x 12 in W x 29.19 in H mounting
- 47.8 A-rated load, 235 A locked rotor, 66.9 A minimum circuit
- Six-cylinders
- 2.94 in bore, 2.19 in stroke
- 89 cu-in/rev displacement
Specifications
|
Amperage Rating |
34 A |
|
BTU Rating |
110000 Btu/hr |
|
CFM Rating |
90.13 cfm |
|
Compressor Oil |
POE |
|
Dimensions |
29.44 in L x 22.44 in W x 28.84 in H |
|
Discharge Line Size |
3-1/8 in |
|
EER Rating |
5 |
|
Flow Rate |
1150 to 1880 lb/hr |
|
Power Rating |
20900 W, 30 hp |
|
Refrigerant Type |
R-22, R-404A, HFC |
|
Series |
6D |
|
Speed Rating |
3500 rpm |
|
Suction Line Size |
2-1/8 in Sweat |
|
Temperature Rating |
-25 to -40 deg F Evaporator, 105 deg F Condensing, Liquid, 65 deg F Return Gas |
|
Voltage Rating |
208 to 230/460 VAC |
