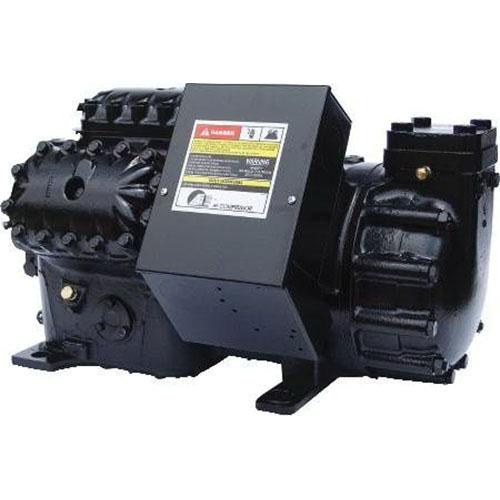

Copeland™ 6RP2-350A-TSK-800
Copeland™ 6R 6RP2-350A-TSK-800 Semi-Hermetic Compressor, 208 - 230/460 VAC, 37600 W, 35 hp, R-22, HCFC Refrigerant
Brand: Copeland™
Item No: 6RP2-350A-TSK-800
Sign In for Availability
Description
Copeland™ Semi-Hermetic Compressor, Series: 6R, 232000 Btu/hr BTU, 1-3/8 in Discharge Suction Line, 03-01-2008 in Discharge Line, 4860 - 5600 lb/hr, 75.44 cu-ft/min, 208 - 230/460 VAC, 60.8 A, 37600 W, 35 hp, R-22, HCFC Refrigerant, 3500 rev/min Speed, 10.1 - 12.3 EER, Alkylbenzene Compressor Oil, 35-45 deg F Evaporator, 105-130 deg F Condensing, 55-65 deg F Return Gas, 90-115 deg F Liquid, 30.16 in L x 23 in W x 17.97 in H
Features
- General 3-lead single voltage, 6-lead part winding (575 V), 9-lead dual voltage
- Internal thermal protectors-electronic sensors and control module external use with contactor
- Compressor family Series
- Displacement and valve plate
- Model variation
- 140 oz initial oil charge, 130 oz oil recharge
- 15 in L x 12 in W x 19.16 in H mounting
- 67.1 A-rated load, 283 A locked rotor, 94 A minimum circuit
- Six-cylinders
- 2.69 in bore, 2.19 in stroke
- 74-1/2 cu-in/rev displacement
Specifications
|
Amperage Rating |
60.8 A |
|
BTU Rating |
232000 Btu/hr |
|
CFM Rating |
75.44 cfm |
|
Compressor Oil |
Alkylbenzene |
|
Dimensions |
30.16 in L x 23 in W x 17.97 in H |
|
Discharge Line Size |
3-1/8 in |
|
EER Rating |
10.1 to 12.3 |
|
Flow Rate |
4860 to 5600 lb/hr |
|
Power Rating |
37600 W, 35 hp |
|
Refrigerant Type |
R-22, HCFC |
|
Series |
6R |
|
Speed Rating |
3500 rpm |
|
Suction Line Size |
1-3/8 in Discharge |
|
Temperature Rating |
35 to 45 deg F Evaporator, 105 to 130 deg F Condensing, 55 to 65 deg F Return Gas, 90 to 115 deg F Liquid |
|
Voltage Rating |
208 to 230/460 VAC |
