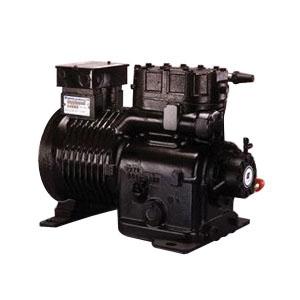

Copeland™ 9RS3-076A-TFC-800

Description

Copeland™ Semi-Hermetic Compressor, Series: 9R, 56500 Btu/hr BTU, 1-3/8 in Sweat Suction Line, 1-1/8 in Sweat Discharge Line, 755 - 1120 lb/hr, 35.46 cu-ft/min, 208 - 230 VAC, 28.1 A, 8600 W, 7-1/2 hp, R-12, CFC Refrigerant, 3500 rev/min Speed, 6.3 - 6.6 EER, Alkylbenzene Compressor Oil, 0-20 deg F Evaporator, 110-120 deg F Condensing, 65 deg F Return Gas, 110-120 deg F Liquid, 25.72 in L x 15.06 in W x 17.59 in H

Features

• General 3-lead single voltage, 6-lead part winding (575 V), 9-lead dual voltage
• Internal inherent protection-one-protector (line break) Use with contactor
• Compressor family Series
• Displacement and valve plate
• Model variation
• 115 oz initial oil charge, 105 oz oil recharge
• 15 in L x 12 in W x 18.63 in H mounting
• 28.1 A-rated load, 164 A locked rotor, 39.4 A minimum circuit
• Three-cylinders
• 2.44 in bore, 2-1/2 in stroke
• 35.01 cu-in/rev displacement
