Copeland™ ARE40C4-IAA-959

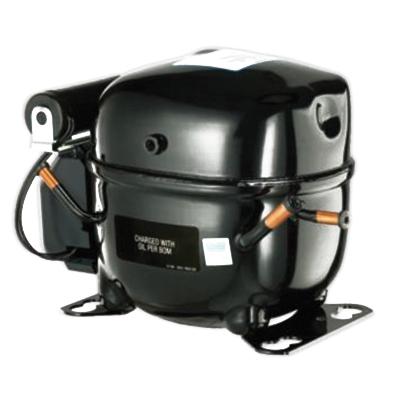

Copeland™ AR ARE40C4-IAA-959 Hermetic Compressor, 115 VAC, 620 W, 1/3 hp, R-134A, R-12, CFC Refrigerant
Brand: Copeland™
Item No: ARE40C4-IAA-959
Sign In for Availability
Description
Copeland™ Hermetic Compressor, Series: AR, 4000 Btu/hr BTU, 5/16 in Stub Suction Line, 1/4 in Stub Discharge Line, 46 - 78 lb/hr, 165.64 cu-ft/min, 115 VAC, 7.1 A, 620 W, 1/3 hp, R-134A, R-12, CFC Refrigerant, 3500 rev/min Speed, 5.8 EER, 20-45 deg F Evaporator, 120-130 deg F Condensing, Liquid, 65 deg F Return Gas, 10-1/2 in L x 6.4 in W x 7.88 in H
Features
- Induction run-capacitor start motor type
- External inherent protection-one-protector (line break) Use with contactor
- Compressor family Series
- Compressor shell Series
- Model variation
- 12 oz initial oil charge, 10 oz oil recharge
- 6-1/2 in L x 4 in W x 8-1/4 in H mounting
- 7 A-rated load, 37 A locked rotor, 9.8 A minimum circuit
- One--cylinder
- 1.09 in bore, 87 in stroke
- 81.78 cu-in/rev displacement
- Bill of material-electrical components, mounting parts, 1 pack, suction valve
Specifications
|
Amperage Rating |
7.1 A |
|
BTU Rating |
4000 Btu/hr |
|
CFM Rating |
165.64 cfm |
|
Dimensions |
10.5 in L x 6.4 in W x 7.88 in H |
|
Discharge Line Size |
1/4 in Stub |
|
EER Rating |
5.8 |
|
Flow Rate |
46 to 78 lb/hr |
|
Power Rating |
620 W, 1/3 hp |
|
Refrigerant Type |
R-134A, R-12, CFC |
|
Series |
AR |
|
Speed Rating |
3500 rpm |
|
Suction Line Size |
5/16 in Stub |
|
Temperature Rating |
20 to 45 deg F Evaporator, 120 to 130 deg F Condensing, Liquid, 65 deg F Return Gas |
|
Voltage Rating |
115 VAC |
