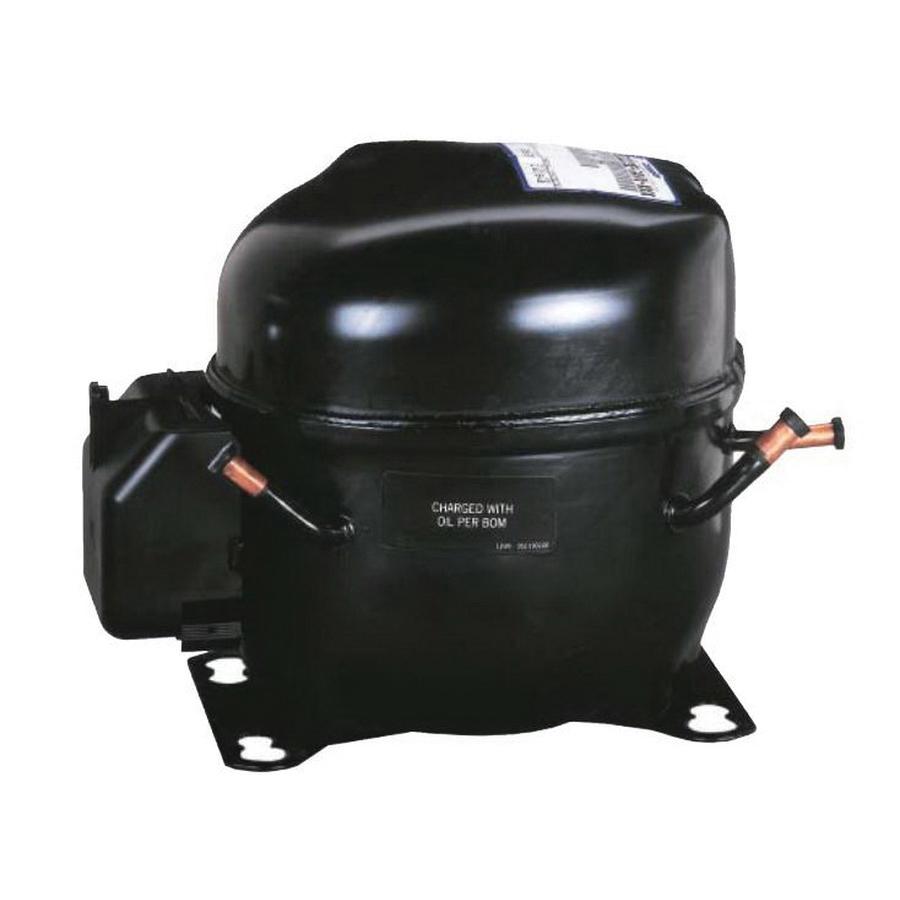

Copeland™ ASE14C4E-IAA-901
Copeland™ AS ASE14C4E-IAA-901 Hermetic Compressor, 115 VAC, 388 W, 1/5 hp, R-404A, R-22, HFC Refrigerant
Brand: Copeland™
Item No: ASE14C4E-IAA-901
Sign In for Availability
Description
Copeland™ Hermetic Compressor, Series: AS, 1400 Btu/hr BTU, 5/16 in Stub Suction Line, 1/4 in Stub Discharge Line, 25 - 39 lb/hr, 0.67 cu-ft/min, 115 VAC, 4.9 A, 388 W, 1/5 hp, R-404A, R-22, HFC Refrigerant, 3500 rev/min Speed, 55 - 57 dBA, 4.25 EER, POE Compressor Oil, 0-20 deg F Evaporator, 110-120 deg F Condensing, Liquid, 65 deg F Return Gas, 10-1/2 in L x 6.4 in W x 7.4 in H
Features
- Induction run-capacitor start motor type
- External inherent protection-one-protector (line break) Use with contactor
- Compressor family Series
- Compressor shell Series
- Model variation
- 12 oz initial oil charge, 10 oz oil recharge
- 6-1/2 in L x 4 in W x 7.8 in H mounting
- 4.8 A-rated load, 26 A locked rotor, 6.7 A minimum circuit
- One--cylinder
- 0.82 in bore, 0.63 in stroke
- 0.33 cu-in/rev displacement
- Bill of material-electrical components, mounting parts, 1 pack
Specifications
|
Amperage Rating |
4.9 A |
|
BTU Rating |
1400 Btu/hr |
|
CFM Rating |
0.67 cfm |
|
Compressor Oil |
POE |
|
Dimensions |
10.5 in L x 6.4 in W x 7.4 in H |
|
Discharge Line Size |
1/4 in Stub |
|
EER Rating |
4.25 |
|
Flow Rate |
25 to 39 lb/hr |
|
Power Rating |
388 W, 1/5 hp |
|
Refrigerant Type |
R-22, R-404A, HFC |
|
Series |
AS |
|
Sound Level |
55 to 57 dBA |
|
Speed Rating |
3500 rpm |
|
Suction Line Size |
5/16 in Stub |
|
Temperature Rating |
0 to 20 deg F Evaporator, 110 to 120 deg F Condensing, Liquid, 65 deg F Return Gas |
|
Voltage Rating |
115 VAC |
